Under the background of the "China-Pakistan Economic Corridor" and the "Belt and Road" health initiative, the upgrading of medical infrastructure and public health security have become new focal points of cooperation between the two countries. Disposable safety syringes, as basic consumables for preventing cross-infection and ensuring the safety of both doctors and patients, are experiencing a technological iteration in market demand from "standard type" to "retractable self-destructing type".
In 2020, Pakistani client A extended an invitation for collaboration. They urgently required the establishment of an automated production line compliant with WHO standards, specifically designed to manufacture 3ml and 5ml retractable safety syringes, in response to the growing demand for vaccination and primary healthcare in Pakistan.
Project initiation: Define requirements precisely
Upon receiving the request, our international project team responded promptly. Considering the local medical environment and usage habits in Pakistan, we conducted in-depth technical coordination with the client. The core requirements were clearly defined: the product must possess the following features— "automatic retraction, needle self-destruction, push rod breakage, and prevention of secondary use" —while also being compatible with storage and transportation under the high-temperature climate of the region.
R&D and Design: Customized Solutions
For small-volume syringes (3ml and 5ml), we implemented targeted design optimizations to overcome multiple technical challenges:
• Core Structural Design: Based on the mechanical principles of retractable self-destructing syringes, we have designed a six-component system consisting of an outer sleeve, core rod, piston, finished needle, threaded head, and locking ring. Among these, the threaded head and locking ring serve as critical self-destruct components. Their elastic coefficient and retraction stroke have been precisely calculated to ensure that, upon completion of injection and the plunger reaching the bottom, the locking mechanism is instantly triggered to pull the plunger back, fully retracting the needle into the core rod and securing it. After locking, the plunger can be manually broken to achieve self-destruction, preventing secondary use.

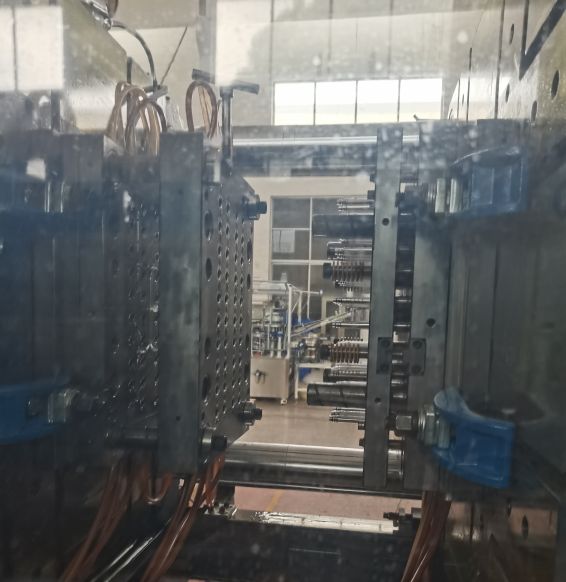

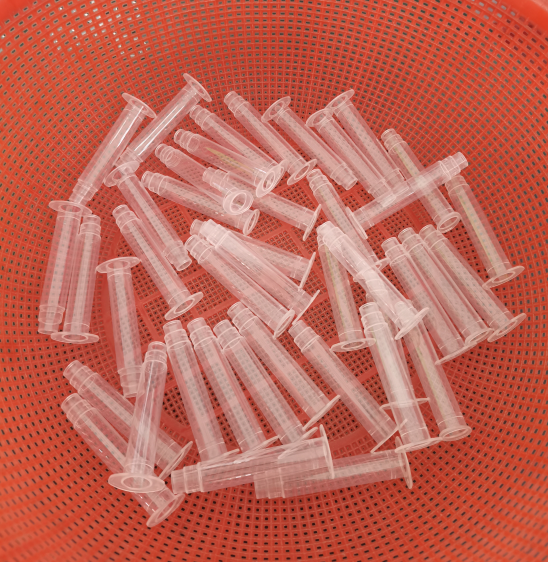

• High-precision tolerance control: This represents one of the most significant technical challenges in the project. Given the compact size of 3ml/5ml syringes and their intricate internal structures—particularly the interlocking mechanism between the locking ring, threaded head, and rubber stopper—absolute coaxiality must be ensured. We employed high-transparency medical-grade polypropylene (PP) material, maintaining the mating tolerance within 0.01mm. Even minor deviations could cause backflow, jamming, or leakage. Through mold flow analysis, we optimized injection parameters to resolve the industry-wide issue of uneven filling in thin-walled components.
• Human-machine engineering optimization: To address the scenario where frontline healthcare workers in Pakistan may operate with thicker gloves, we have optimized the friction resistance of the push rod to maintain a lower level of thrust within the standard range. This ensures effortless and smooth single-handed operation while avoiding the risk of liquid medication splashing due to excessive force application.
Intelligent Manufacturing Delivery: From Drawing to Equipment
After finalizing the design plan, our Mechanical Engineering Department immediately commenced the development of custom automation equipment.

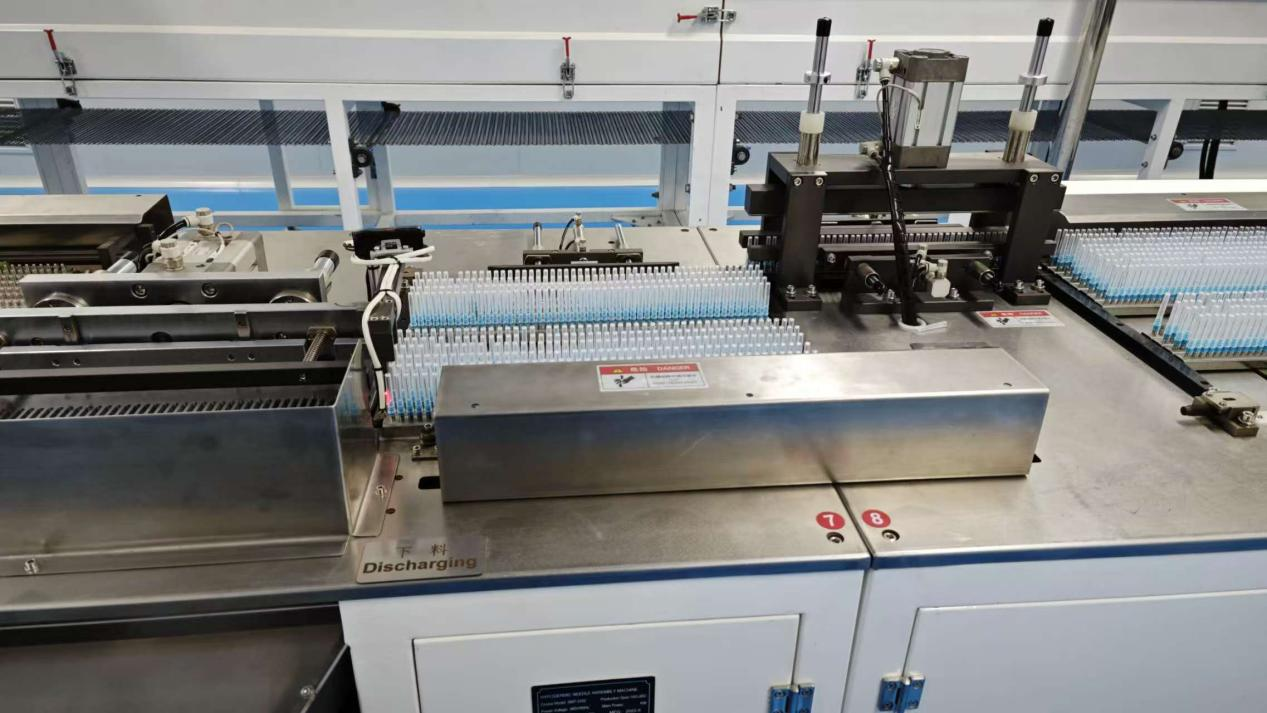

• Equipment Manufacturing: We have customized fully automated production lines for clients, integrating "injection molding, printing, assembly, packaging, and sterilization." For the precision assembly of retraction functions, we independently developed a high-precision positioning system and adopted servo motors. This ensures perfect engagement between each threaded head and locking ring, meeting the clients' production capacity requirements.
• Strict acceptance: Before the equipment leaves the factory, we invite customer representatives to the China factory for FAT (Factory Acceptance Test). After 72 hours of continuous full-load trial operation, the production efficiency of the equipment reaches 140 pieces per minute, with a defect rate below 0.1%. All product indicators, including sliding performance, residual capacity, and the most critical retraction success rate, fully meet the ISO 7886-5 international standard and the DRAP certification requirements in Pakistan.
Transnational Installation: Fulfillment Across Mountains and Seas
After the equipment arrived smoothly at Karachi Port in Pakistan, cleared customs, and reached the client's factory, our after-sales service team immediately set off, crossing mountains and seas to reach the project site.

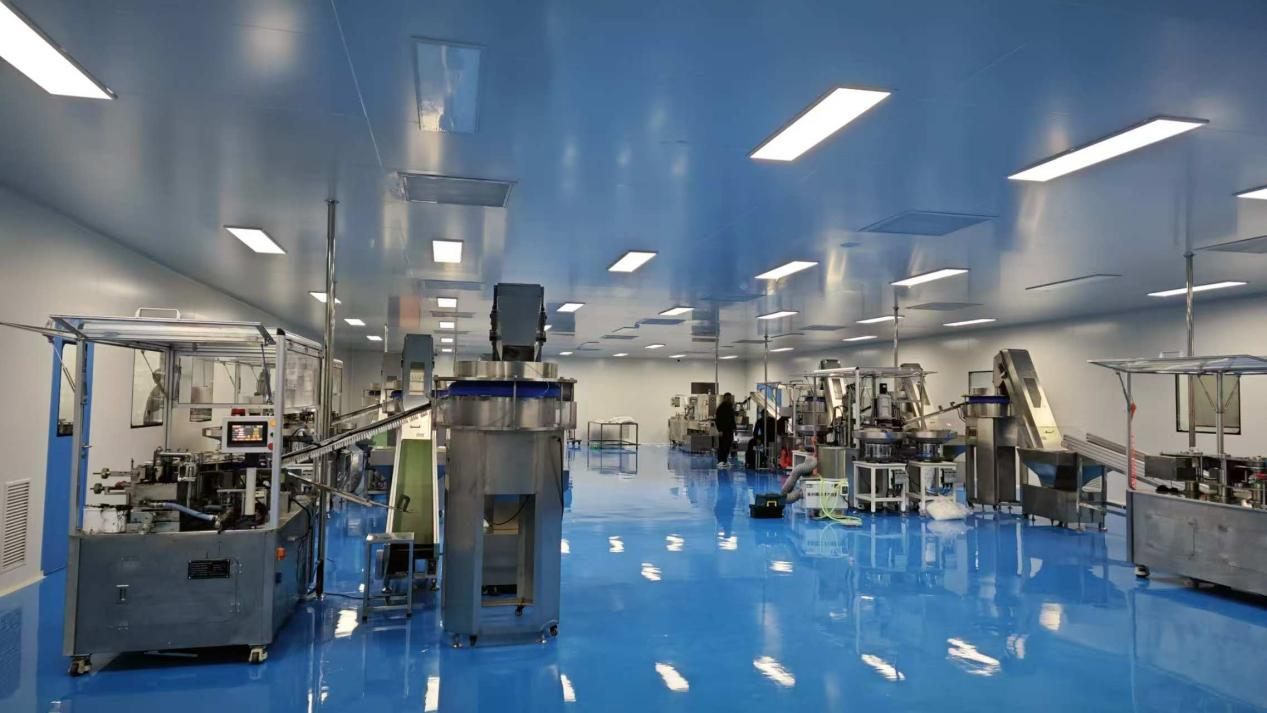

• On-site installation: During Pakistan's scorching summer, our engineers overcame challenges including unstable power supply and high humidity, completing the entire line's equipment positioning, calibration, and debugging within 15 days.
• Technology transfer: To ensure clients can operate independently, we conducted a one-week "hands-on" training program. Our engineers patiently guided local technicians through equipment operation, mold replacement, and daily maintenance until they could perform the tasks proficiently and autonomously.
Project Results and Value
After three months of close collaboration, Client A's factory successfully obtained certification from the Drug and Food Regulatory Authority of Pakistan (DRAP) and commenced formal production.
• Capacity enhancement: The production line currently achieves a daily output of over 1 million 3ml/5ml retraction safety syringes, not only filling the gap in high-end safety syringe production within Pakistan but also reducing the local dependence on imports of similar products by 40%.
• Social benefits: These syringes have been widely utilized in Pakistan's National Immunization Program (EPI) and major public hospitals. According to feedback from local health authorities, the incidence of needlestick injuries among healthcare workers has significantly decreased following the use of retractable safety syringes, substantially enhancing the safety standards of primary healthcare.
Epilogue
This is not just the delivery of a production line, but also a perfect combination of China's intelligent manufacturing and the livelihood needs of Pakistan. From the initial product design concept to the final after-sales implementation, we were fully involved, witnessing "China Manufacturing" taking root and flourishing in a foreign land. In the future, we will continue to deepen Sino-Pakistani medical cooperation, using more advanced technologies and services to safeguard the health of the Pakistani people and write a new chapter of the "ironclad" friendship between China and Pakistan.
