SMT-4420
SMARTELL
8422303090

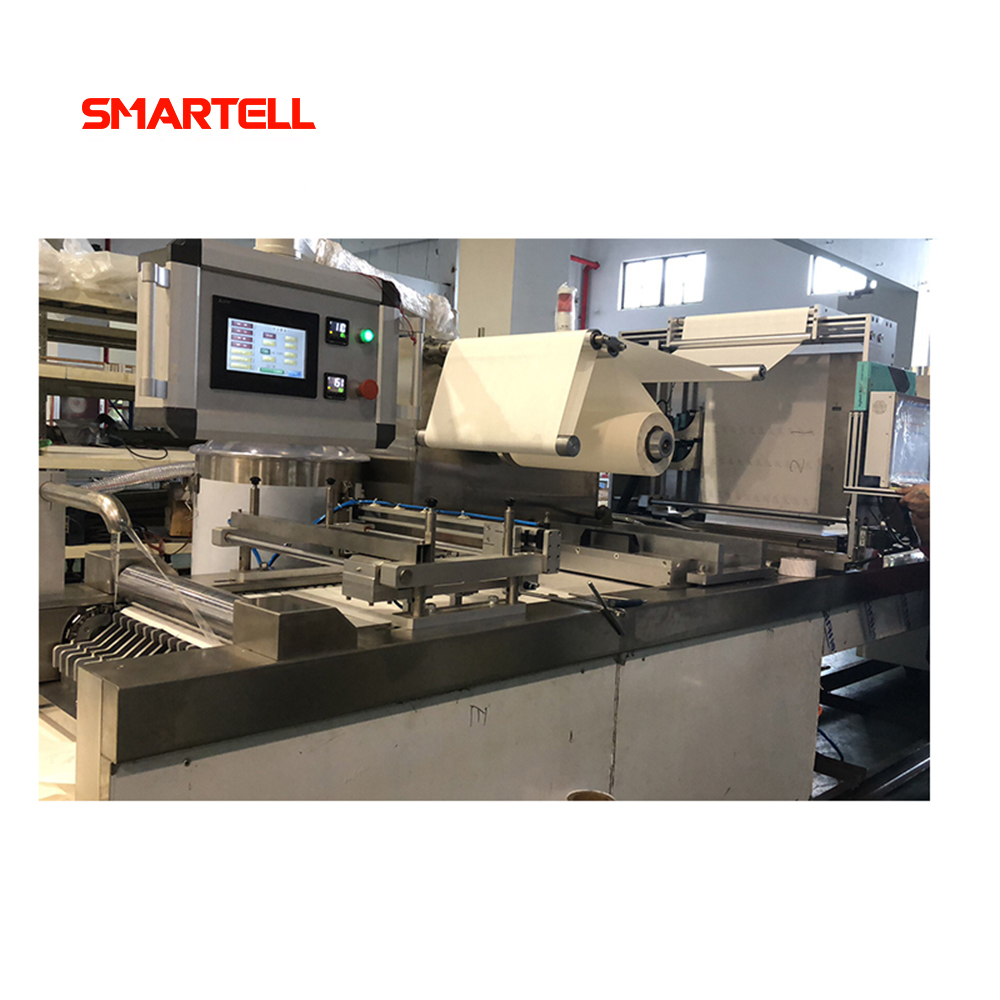

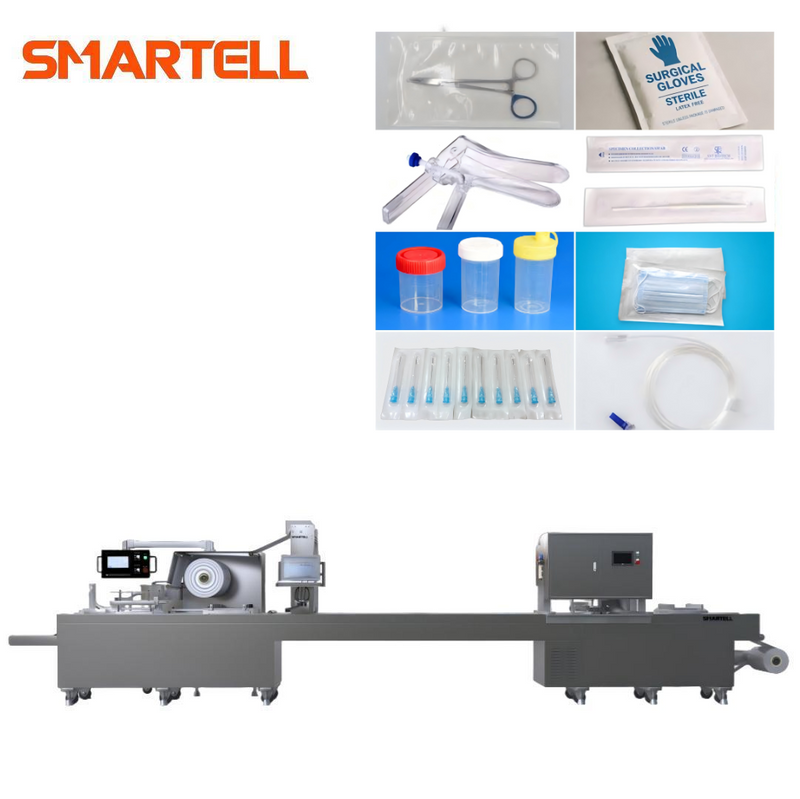

Blister Packing Machine for Medical Disposable Products
The Blister Packing Machine is an automatic, GMP-compliant packaging system designed for sterile medical consumables, including syringes, infusion sets, swabs, adhesive bandages, speculums, medical gloves, and acne patches, etc. It integrates thermoforming, filling, sealing, and cutting in a continuous process to ensure high efficiency, product sterility, and consistent packaging quality.
1. Application Scope

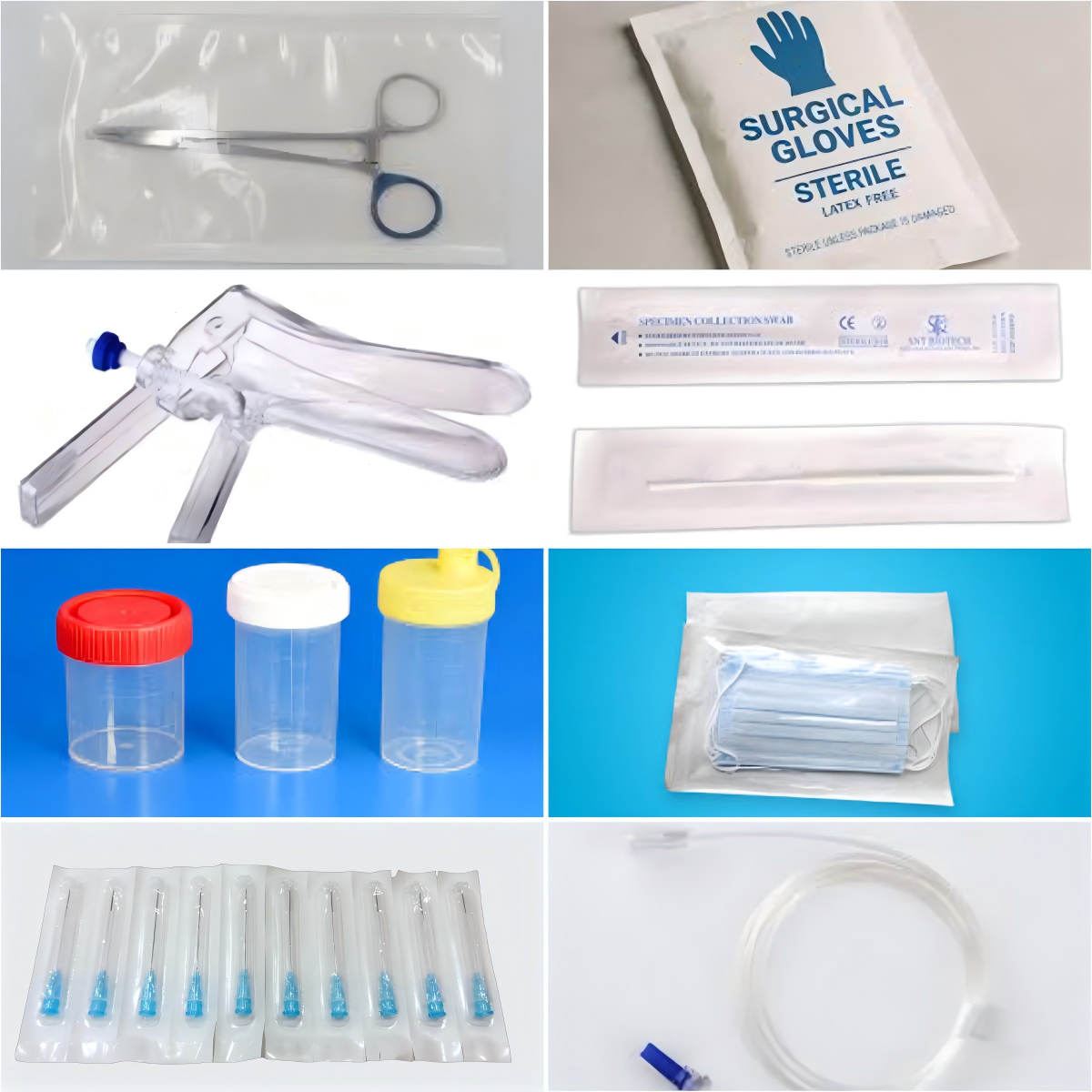

Suitable for packaging:

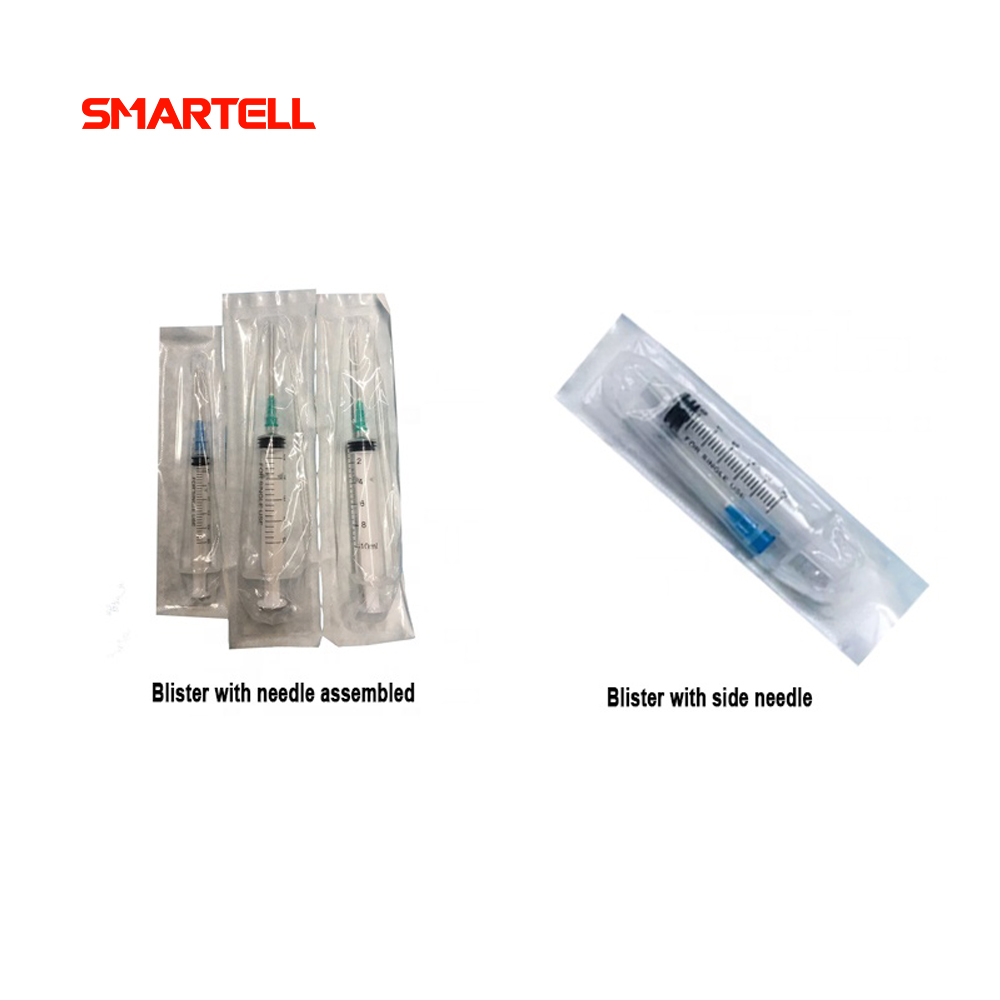

• Syringe /infusion sets/IV cannula
• Swabs / disinfectant pads
• Adhesive bandages / Acne patches
• Gynecological speculums (plastic or disposable types)
• Examination gloves (single or paired packing)

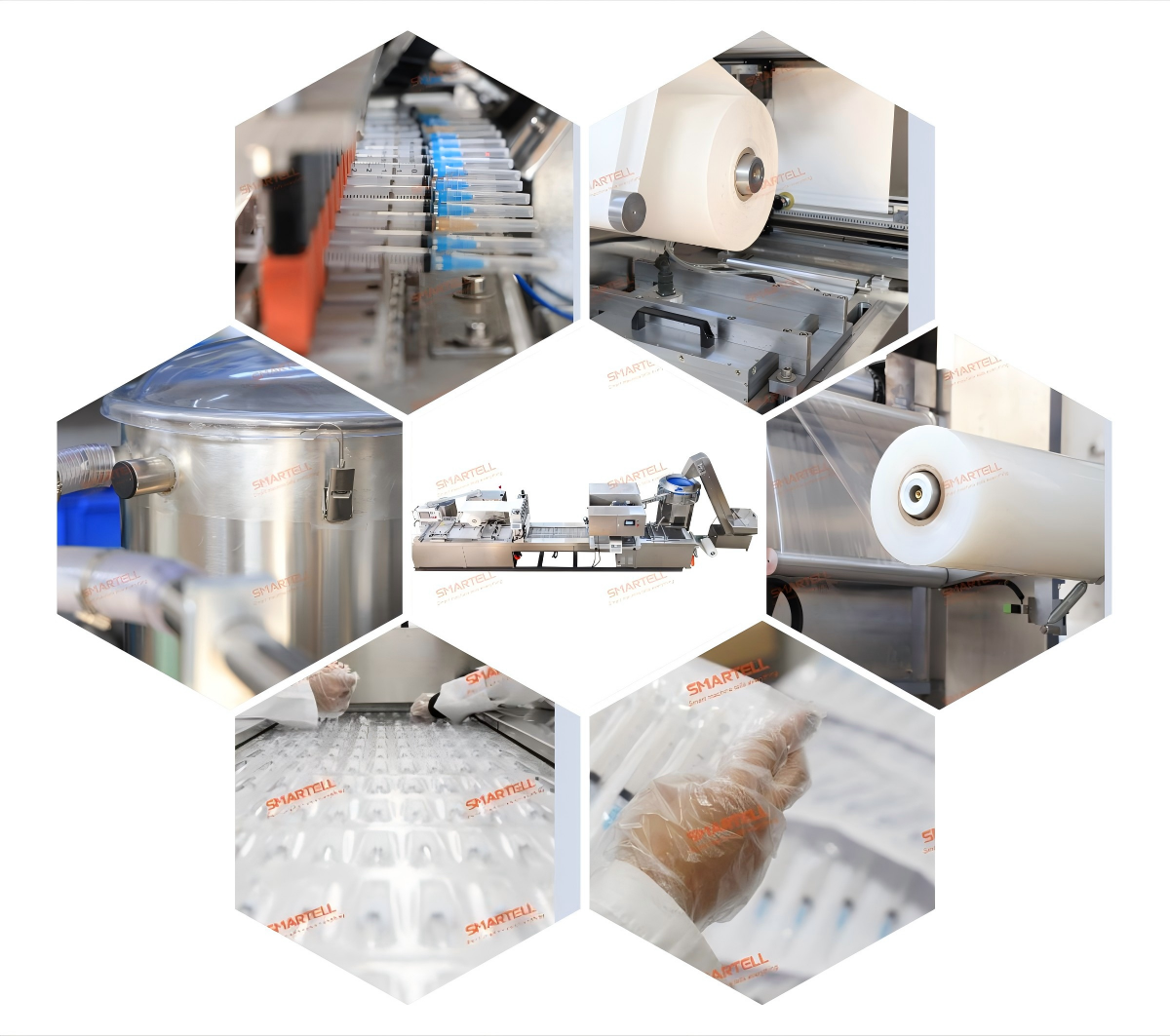

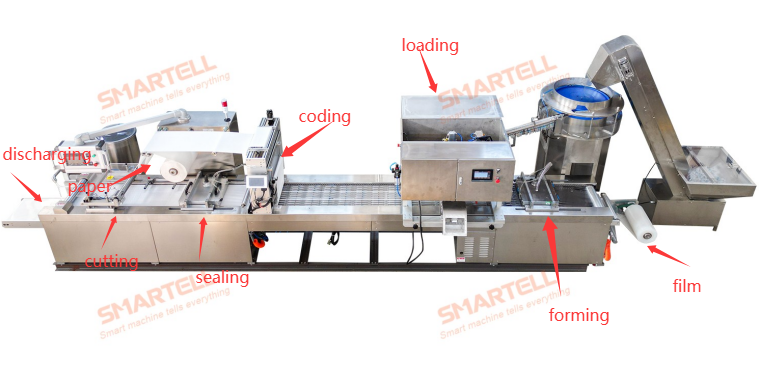

2. Machine Structure & Working Process
Main stations:

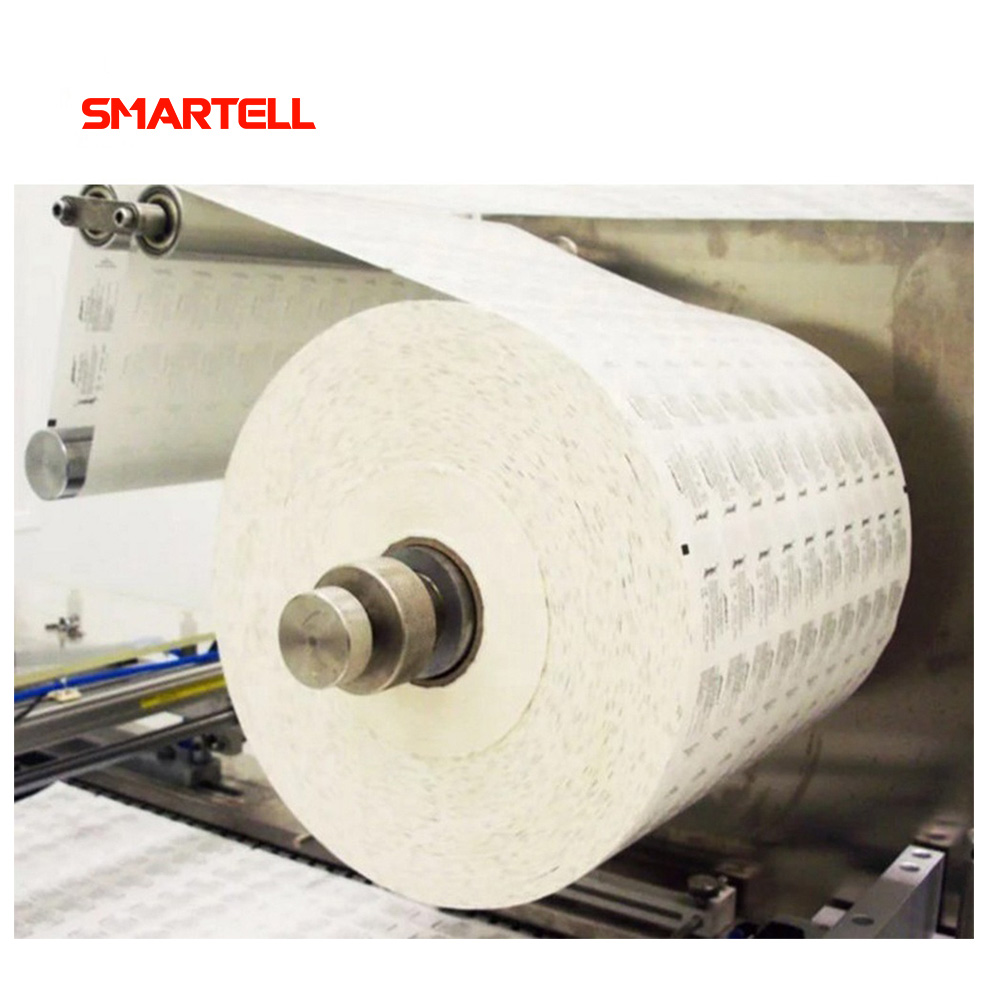

1. Film unwinding system
2. Thermoforming unit (film-film, paper-film)
3. Automatic product feeding system (manual or auto loader optional)
4. Heat sealing station
5. Batch coding / embossing unit (optional)
6. Die cutting system
7. Finished product output conveyor
Process flow:
Film → Forming → Loading → Sealing → Coding → Cutting → Output
3. Technical Parameters (Typical Configuration)
Item | Specification | |
Production capacity | 10–14 cycles/min (customizable) | |

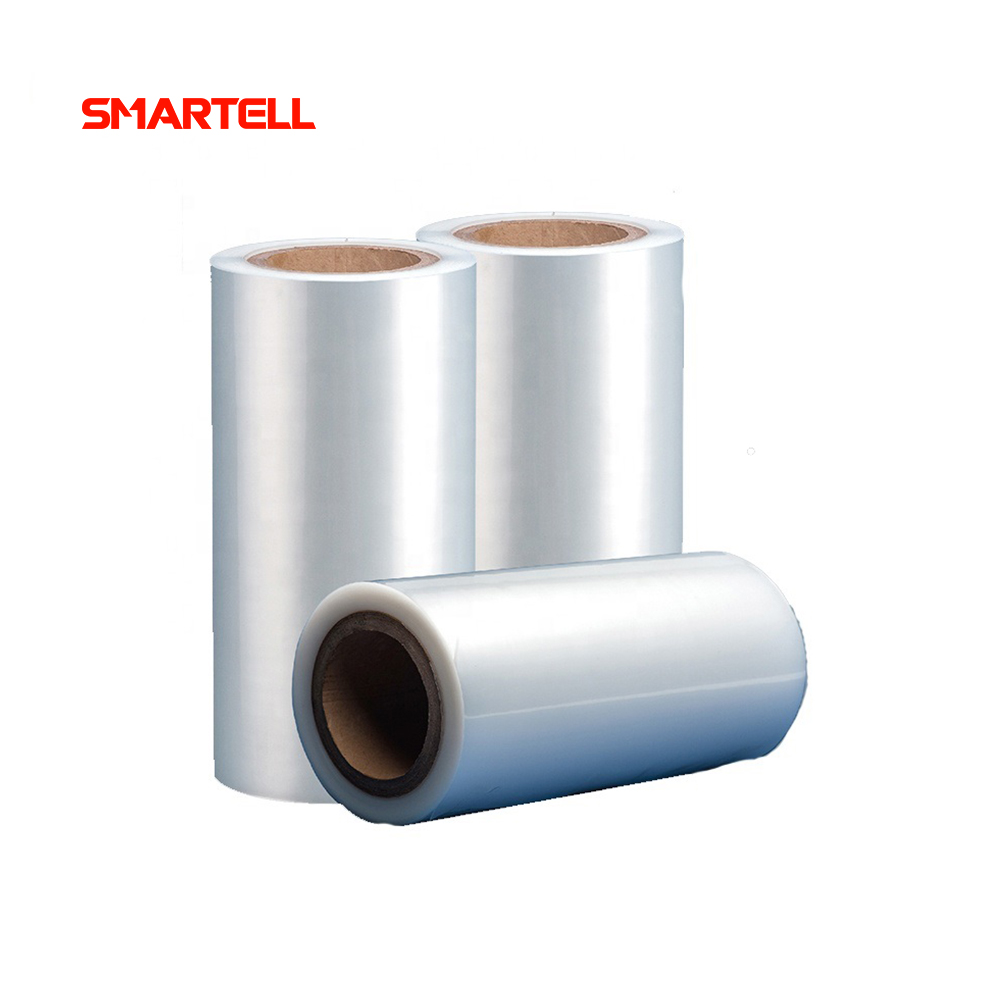

Packing material | Paper-film or film-film | |
Forming depth | 10–60 mm (customizable) | |
Max forming width | 320 mm – 400 mm/480mm (model dependent) | |
Sealing temperature | 80–180°C adjustable | |
Air pressure requirement | 0.6–0.8 MPa | |
Power supply | 380V / 50Hz / 3-phase (customizable) | |
Total power | 8–25 kW (depending on configuration) | |
Control system | PLC + Touchscreen HMI (Siemens / Omron optional) | |
Feeding system | Manual / semi-auto / full servo auto | |
Accuracy | ±0.5 mm positioning | |
Machine material | SUS304 stainless steel (product contact parts) | |
Cooling system | Water or air cooling optional |
4. Key Features
• Fully automatic blister forming and sealing line
• Interchangeable molds for multi-product packaging
• High sealing integrity suitable for sterile medical use
• Servo-driven indexing for precise synchronization
• Modular design for easy maintenance and cleaning
• Optional cleanroom-compatible configuration (Class 100K/10K)
5. Optional Configurations
• Vision inspection system (missing product detection not included)

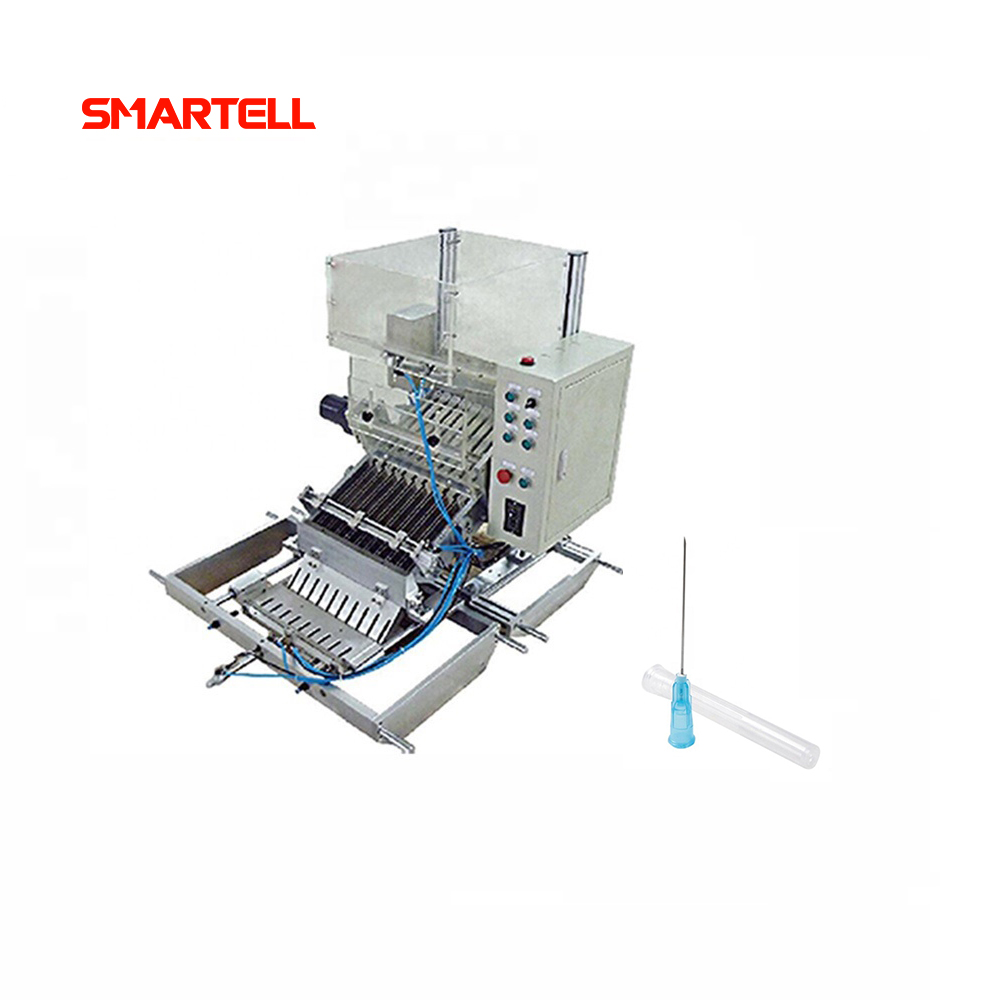

• Automatic feeding robots (for gloves, syringes, swabs)
• Inkjet or thermal transfer printer (batch & expiry date)
• Nitrogen flushing for extended shelf life
• Servo-driven forming & sealing upgrade for higher precision
6. Advantages
• High automation reduces labor cost
• Stable sealing ensures sterile barrier protection
• Flexible design supports multiple medical products
• Complies with GMP and ISO medical packaging standards
• Suitable for medium to high-volume pharmaceutical production
