Ethylene oxide (EO) sterilization is widely used for disposable medical products that are sensitive to high temperatures and moisture. It is commonly considered for products such as infusion sets, syringes, catheters, medical tubing, gloves, and other polymer-based medical devices.
For manufacturers planning a new medical production facility, selecting an EO sterilization chamber is not simply about choosing the largest available chamber. The actual requirement depends on product volume, packaging configuration, loading method, production capacity, sterilization cycle, and the space required for process monitoring and gas circulation.
This article provides a practical introduction to EO sterilization chambers, their basic working process, common specifications, loading considerations, and key points for equipment selection.

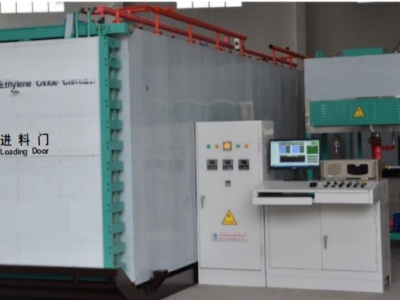

An EO sterilization chamber is a controlled vessel used to expose medical products to ethylene oxide under defined conditions of temperature, humidity, pressure, EO concentration, and exposure time.
EO is particularly useful for medical devices made from plastics, rubber, adhesives, and other materials that may not tolerate high-temperature sterilization.
The sterilization process needs to be developed and validated according to the specific product, packaging configuration, loading pattern, and equipment. Therefore, chamber capacity alone does not determine whether a sterilization process will be effective.
A well-designed EO sterilization system should provide stable environmental conditions throughout the product load and allow critical process parameters to be monitored and recorded.

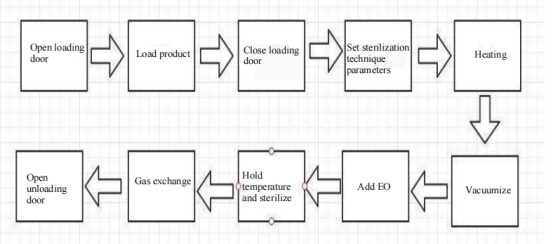

Although specific cycles vary depending on the product and process validation, a typical EO sterilization process can be summarized as:
Pretreatment / Heating → Open Loading Door → Product Loading & Biological Indicator Setting → Set Sterilization Parameters → Close Loading Door → Chamber Vacuumization & Pressure Test → EO Gasification & Injection → Temperature Holding & Sterilization → Gas Exchange → Open Unloading Door & Unloading
Step 1: Pretreatment & Heating (Preconditioning)
·
Before loading, heat the water tank to the scheduled temperature and warm the gasifier
·
·
Pre-heating the chamber walls and water tank ensures rapid heat cycling and reduces the total heating time once products are inside.
·
Step 2: Product Loading & Parameter Setting
·

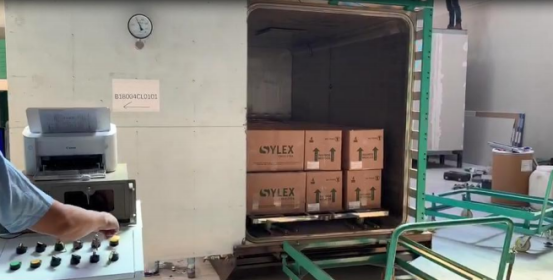

Open the loading door and place the outer-carton packaged products (such as syringes) into the chamber using small handcarts or tray-connecting platforms.
Set biological indicators within the load to monitor and confirm sterilization effectiveness.
Input and configure sterilization technique parameters (temperature, humidity, pressure, and time) via the PLC computer/single-chip control system before closing the loading door.
Step 3: Pre-Vacuum & Leakage Check
Perform chamber vacuumization using the vacuum pump to reach the designated inner negative pressure.
Maintain pressure and perform a puncture/leakage check to ensure chamber seal integrity prior to gas introduction.
Step 4: EO Gasification & Injection
Heat the EO mixture gas through the water tank to complete gasification.
Open the air supply and cylinder valves to inject the gasified EO until the specified positive pressure/concentration is reached.
Step 5: Holding Temperature & Sterilization (Exposure)
Maintain target temperature, humidity, and pressure conditions inside the chamber.
Hold the sterilization state for the validated period (typically over 8 hours depending on product requirements).
Step 6: Gas Exchange (EO Removal & Air Washing)
Run the vacuum pump (approx. 5 minutes) to evacuate the chamber down to negative pressure.
Introduce filtered fresh air (approx. 3 minutes) and repeat the gas exchange process 5 times to thoroughly remove residual sterilant.
Waste gas and water are discharged via dedicated piping to the outdoor neutralization pond.
Step 7: Unloading & Biological Verification
Once gas exchange is complete and inner pressure returns to atmospheric level, release the door seal vacuum, run the exhaust fan, and open the unloading door.
Check biological indicators (turning blue indicates successful sterilization).
Unload finished cartons and transfer them to the storage/analysis area.
For disposable medical product manufacturing, EO sterilization chambers can be designed in different capacities according to production requirements.
For preliminary planning, a practical range is approximately 1 m³ to 25 m³.
Chamber Volume | Typical Application |
1–3 m³ | Small production, pilot projects, laboratories |
3–5 m³ | Small-to-medium production |
5–10 m³ | Medium production lines |
10–15 m³ | Medium-to-large production |
15–20 m³ | High-volume production |
20–25 m³ | Large production loads |
These are general equipment-planning ranges rather than fixed industry classifications.
The correct size should ultimately be calculated according to the actual product dimensions, packaging configuration, carton size, loading quantity, number of cycles per day, and validated process.
One important point when planning an EO sterilization chamber is that nominal chamber volume is not equal to usable product volume.
It is usually not practical to fill 100% of the chamber with products.
Space is needed for:
Air circulation
EO gas distribution
Product separation
Temperature and humidity probes
Pressure monitoring
Validation sensors
Loading and unloading
Consistent process conditions
As a practical preliminary design guideline, manufacturers may consider reserving approximately 20–30% of the nominal chamber volume for operational and process requirements.
For example, if the calculated product load requires approximately 8 m³, selecting a chamber with exactly 8 m³ of nominal volume may leave insufficient space for circulation and monitoring.
A preliminary calculation could therefore be:
8 m³ ÷ 70–80% ≈ 10–11.5 m³
This does not mean that ISO 11135 requires a fixed 20–30% empty space. The final loading configuration should be established through equipment qualification and sterilization process validation.
The key principle is simple:
Do not design the chamber around 100% physical filling.
Monitoring is an important part of EO sterilization.
Depending on the system and validation strategy, sensors may be used to monitor temperature, pressure, humidity, and other critical process conditions.
During qualification, additional sensors may also be positioned at different locations within the load to understand how uniformly the process conditions are distributed.
If products are packed too tightly around these monitoring points, sensors may become difficult to position, while airflow and gas distribution can also be affected.
Therefore, the chamber and loading system should provide sufficient space for both routine monitoring and validation activities.
This is another reason why usable product volume should not be calculated simply by filling every cubic meter of the chamber.
When comparing EO sterilization equipment, chamber volume is only one specification.
Stable temperature control is important for maintaining consistent sterilization conditions throughout the chamber.
Humidity needs to be controlled according to the validated EO cycle. Uneven humidity can influence sterilization performance.
The vacuum system is responsible for controlled air removal and pressure management. Pump capacity should match the chamber size and process requirements.
The EO injection system needs to provide controlled sterilant introduction while incorporating appropriate safety measures.
Good circulation can help reduce differences in temperature and humidity within the chamber and product load.
Modern systems should record important process parameters for cycle monitoring, traceability, and documentation.
EO is a hazardous and flammable gas. An EO sterilization system therefore needs appropriate safety features, such as door interlocks, pressure monitoring, gas detection, ventilation, emergency functions, and controlled gas handling.
The chamber size should be considered together with the actual packaging and loading method.
For example, an infusion set may be individually packaged before being placed into cartons. Syringes, catheters, and gloves may have completely different package dimensions and loading densities.
Even when two manufacturers have the same daily production volume, their required chamber capacities may be different because their products and packaging configurations are different.
A practical calculation should therefore consider:
Daily Production → Package Quantity → Carton Dimensions → Load Quantity → Cycles per Day → Required Chamber Volume
This approach is generally more useful than selecting a chamber based only on daily production numbers.
A suitable EO sterilization chamber should balance several factors:
Chamber Capacity + Loading Efficiency + Temperature & Humidity Control + EO Distribution + Safety + Monitoring + Aeration + Future Expansion
For example, a small 2 m³ chamber may be sufficient for a pilot project but may become a production bottleneck when output increases.
On the other hand, choosing a very large chamber for a relatively small production line may increase investment and operating costs without providing a practical benefit.
For this reason, manufacturers should consider not only their current production volume but also their expected production expansion.
EO sterilization should be viewed as part of the overall medical manufacturing process.
A complete system may include:
Preconditioning → EO Sterilization → EO Removal → Aeration → Safety Monitoring → Data Recording

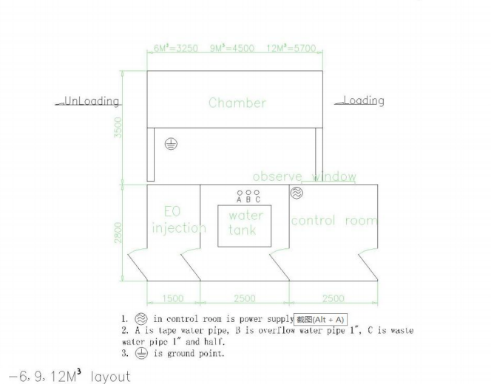

The factory layout should also consider the movement of non-sterilized and sterilized products, ventilation, EO supply, safety zones, and material flow.
For larger medical production projects, sterilization capacity should be planned together with the production line rather than added as an independent piece of equipment.
For manufacturers of disposable medical products, EO sterilization equipment should be selected according to the actual product and production requirements.
At SMARTELL TECHNOLOGY, EO sterilization equipment can be considered as part of a broader medical disposable production solution, with preliminary chamber configurations ranging from approximately 1 m³ to 25 m³.
Depending on the product type, packaging configuration, production capacity, and factory layout, the chamber configuration can be planned around the expected loading pattern and process requirements.
The objective is not simply to provide a larger chamber. It is to create a practical balance between capacity, process stability, safety, monitoring, and future production needs.
Ultimately, a reliable EO sterilization system is defined not by its chamber size alone, but by its ability to consistently provide the required temperature, humidity, pressure, EO exposure, and aeration conditions throughout the validated product load.
For a new medical production project, the best starting point is therefore to determine the product output, packaging configuration, expected load volume, and number of cycles required per day—and then select the chamber capacity accordingly.
