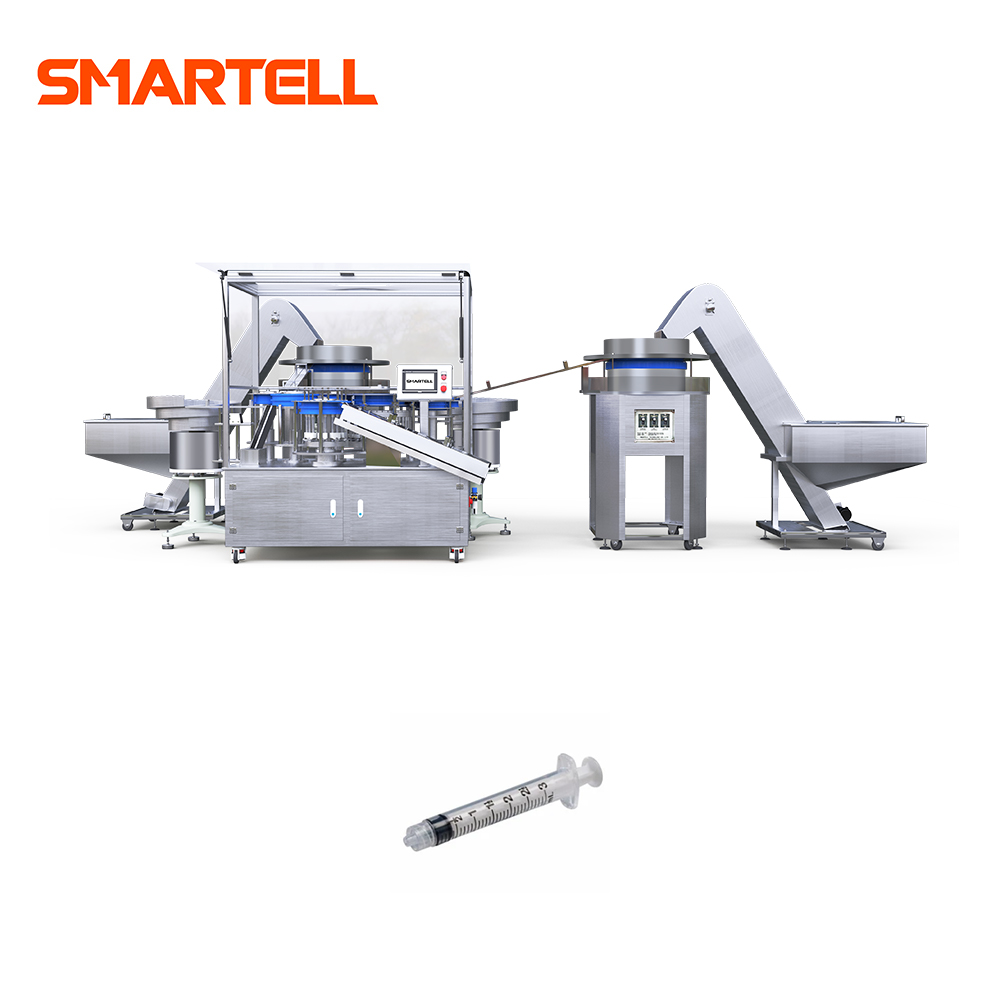

Fully Automatic Needle And Needle-Free Syringe Production Line Syringe Assembly Machine

Our syringe assembly machine adopts a fully automatic integrated production design that significantly reduces manual operation and improves overall production efficiency.
Availability:
Quantity:
  • SMT-3305

  • Smartell


Syringe Automatic Assembly Machine

1

26

47

5

9

photobank(2)(1)



Technical Specifications


SPEC

Production Speed

Dimension

Weight

Power

Compressed air flow

1ml

200pcs/min

4900x2700x2400mm

1500 kg

AC220V/3KW

0.3m3/min

2-3ml

220pcs/min

5ml

230pcs/min

10ml

200pcs/min

20ml

170pcs/min

30ml

150pcs/min

50-60ml

120pcs/min


All parameters and dimensions are subject to change without prior notice.



Syringe Automatic Assembly Machine



Advanced Automation Technology

Our syringe assembly machine adopts a fully automatic integrated production design that significantly reduces manual operation and improves overall production efficiency. The machine is equipped with a high-performance Mitsubishi PLC control system and an intelligent touchscreen interface, allowing operators to easily monitor and adjust production parameters in real time.

The advanced automation system provides:


Automatic material feeding

Precision positioning and assembly

Intelligent production monitoring

Automatic product counting

Automatic fault alarm system

Auto-stop protection function

Defective product detection and rejection

Real-time production data display


The intelligent operating system improves production stability while minimizing human error, ensuring consistent product quality throughout the manufacturing process.




photobank4 photobank2 车间详情图

 Syringe Parts Assembly Machinery Price for 1ml -60ml Syringe Project



disposable syringe assembly machine,syringe assembly machine fully automatic,automatic syringe assembly machine

photobank1 公司详情图vaccine syringe assembly machine for 0.5ml 1ml barrel plunger gasket needle assemble

-_04

注射器产线流程图2025.3.10

vaccine syringe assembly machine for 0.5ml 1ml barrel plunger gasket needle assemble
