IV infusion sets are essential medical disposable products used in hospitals and healthcare facilities to deliver fluids, medications, and other solutions directly into a patient's bloodstream. Although an infusion set may appear to be a simple medical device, its manufacturing process involves multiple components, specialized equipment, controlled production environments, and strict quality requirements.
For companies planning to manufacture IV infusion sets, understanding the complete production process is an important first step. This guide explains how IV infusion sets are manufactured, what equipment is required, and what should be considered when building a complete IV infusion set production line.

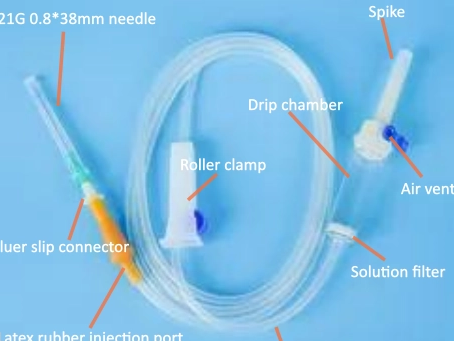

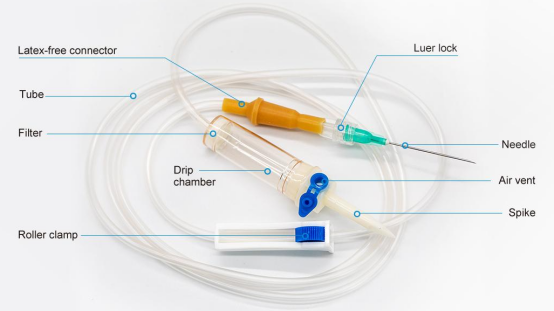

A typical IV infusion set consists of several components, including a spike, drip chamber, flexible tubing, flow regulator, injection port, connector, protective caps, and other small plastic components depending on the product design.
Each component must meet the required dimensional, functional, and quality specifications. The final assembly must also provide reliable fluid flow and secure connections throughout the use of the product.
Because IV infusion sets are commonly used for direct medical treatment, manufacturers need to pay close attention to material selection, dimensional accuracy, cleanliness, assembly quality, and final product inspection.
The production of an IV infusion set can generally be divided into several major stages:
Raw material preparation → Injection molding → Tubing extrusion → Component assembly → Inspection → Packaging → Sterilization
The exact process may vary according to the design and specifications of the infusion set.
Many IV infusion set components, such as spikes, connectors, drip chambers, and protective caps, are manufactured by injection molding using materials such as ABS, PE, and PVC.
Because these materials have different processing characteristics, different screw and plasticizing configurations may be required. Therefore, changing the mold alone does not necessarily allow one machine to process all materials efficiently.
Moisture-sensitive materials such as ABS also require proper drying equipment, such as a dehumidifying dryer, before injection molding to ensure stable processing and consistent product quality.
The injection molding machine, screw configuration, auxiliary equipment, and mold should therefore be selected according to the material, component design, and required production capacity.

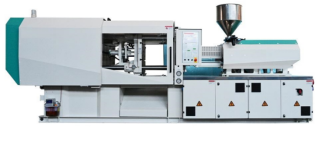

SMARTELL-Injection Molding Machine for Medical Products
The flexible tube is another major component of an IV infusion set. Medical tubing is normally produced through an extrusion process.
During extrusion, the selected polymer material is heated and formed through an extrusion die into continuous tubing. The tubing diameter, wall thickness, flexibility, transparency, and surface quality need to remain within the required specifications.
A complete tubing extrusion system can include an extruder, extrusion die, cooling system, haul-off unit, cutting or winding equipment, and other auxiliary systems.
After the individual components are manufactured, they need to be assembled into the finished infusion set.
Depending on the product design, the assembly process may include:
Filter Assembly
Drip Chamber Assembly
flow regulator Assembly
Latex & two-way connector Assembly
Connecting finished plastic components
Checking the finished assembly
Assembly can be performed manually, semi-automatically, or fully automatically.
For large-scale production, automated assembly equipment can significantly improve production efficiency and consistency. Automation also helps reduce variation caused by manual operations and provides manufacturers with better control over production capacity.

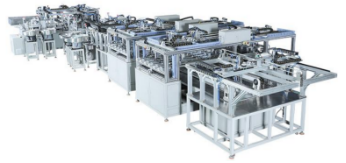

SMARTELL-Full Automatic IV set assembly machine
Quality control is an essential part of IV infusion set manufacturing.
Depending on the applicable product specifications and regulatory requirements, manufacturers may perform inspections such as dimensional inspection, visual inspection, connection strength testing, leakage testing, and fluid-flow related tests.
Automated inspection systems can also be integrated into production lines to detect defects during manufacturing.
For high-volume production, combining automated assembly with online inspection can help manufacturers improve consistency while reducing the risk of defective products reaching the packaging stage.
Because IV infusion sets are medical disposable products, the production environment is an important consideration when planning a manufacturing facility.
Injection molding, tubing production, assembly, inspection, and packaging areas may have different environmental requirements depending on the product and applicable standards.
A suitable cleanroom and HVAC system should therefore be considered during the factory planning stage.
Manufacturers should evaluate factors such as cleanroom classification, temperature, humidity, air filtration, pressure control, personnel flow, material flow, and production layout.
The production environment should be planned together with the equipment layout rather than treated as a separate project.
A complete IV infusion set manufacturing project may include several types of equipment:
Injection molding machines for plastic components
Injection molds designed for individual components
Medical tubing extrusion equipment
Automatic or semi-automatic assembly machines
Inspection and testing equipment
Packaging machines
Sterilization equipment or sterilization services
Cleanroom and HVAC systems
Auxiliary equipment, such as chillers, air compressors, and material handling systems
The final equipment configuration depends on the product structure, required production capacity, automation level, factory conditions, and target market.
Building an IV infusion set production line is more than simply purchasing individual machines.
A successful project should begin with the product specifications and target production capacity. Based on these requirements, manufacturers can determine the required number of injection molding machines, extrusion lines, assembly equipment, testing systems, and packaging equipment.
The factory layout should then be developed according to the equipment dimensions, production flow, personnel flow, material flow, cleanroom requirements, utilities, and future expansion plans.
This integrated approach can help avoid problems such as insufficient production capacity, inefficient material movement, unnecessary manual operations, or inadequate utility capacity.
At Smartell, we provide equipment and production line solutions for medical disposable products, including IV infusion sets and related components.
Our approach is based on the complete manufacturing process rather than focusing on a single machine. We can help customers evaluate equipment requirements for injection molding, tubing production, component assembly, inspection, and other stages of the production process.
For customers planning a new medical disposable production facility, Smartell can also assist with production line configuration, equipment selection, factory layout planning, and the integration of different manufacturing processes.
The exact production line configuration should always be developed according to the customer's product specifications, expected output, automation requirements, and applicable regulatory standards.
Manufacturing IV infusion sets requires the integration of multiple processes, including injection molding, tubing extrusion, component assembly, inspection, packaging, and sterilization. Stable equipment performance, accurate production processes, controlled manufacturing environments, and effective quality inspection are all important for establishing a reliable production system.
For companies planning to enter the IV infusion set manufacturing industry, a complete production-line approach can make equipment selection and factory planning more efficient.
With its own equipment and production line solutions, Smartell works with customers to develop IV infusion set manufacturing solutions based on their specific products, capacity requirements, and factory conditions.
