How To Choose Assembly Machine for Syringe Project?

How to Choose Medical Syringe Assembly Machine

Structured Product Description

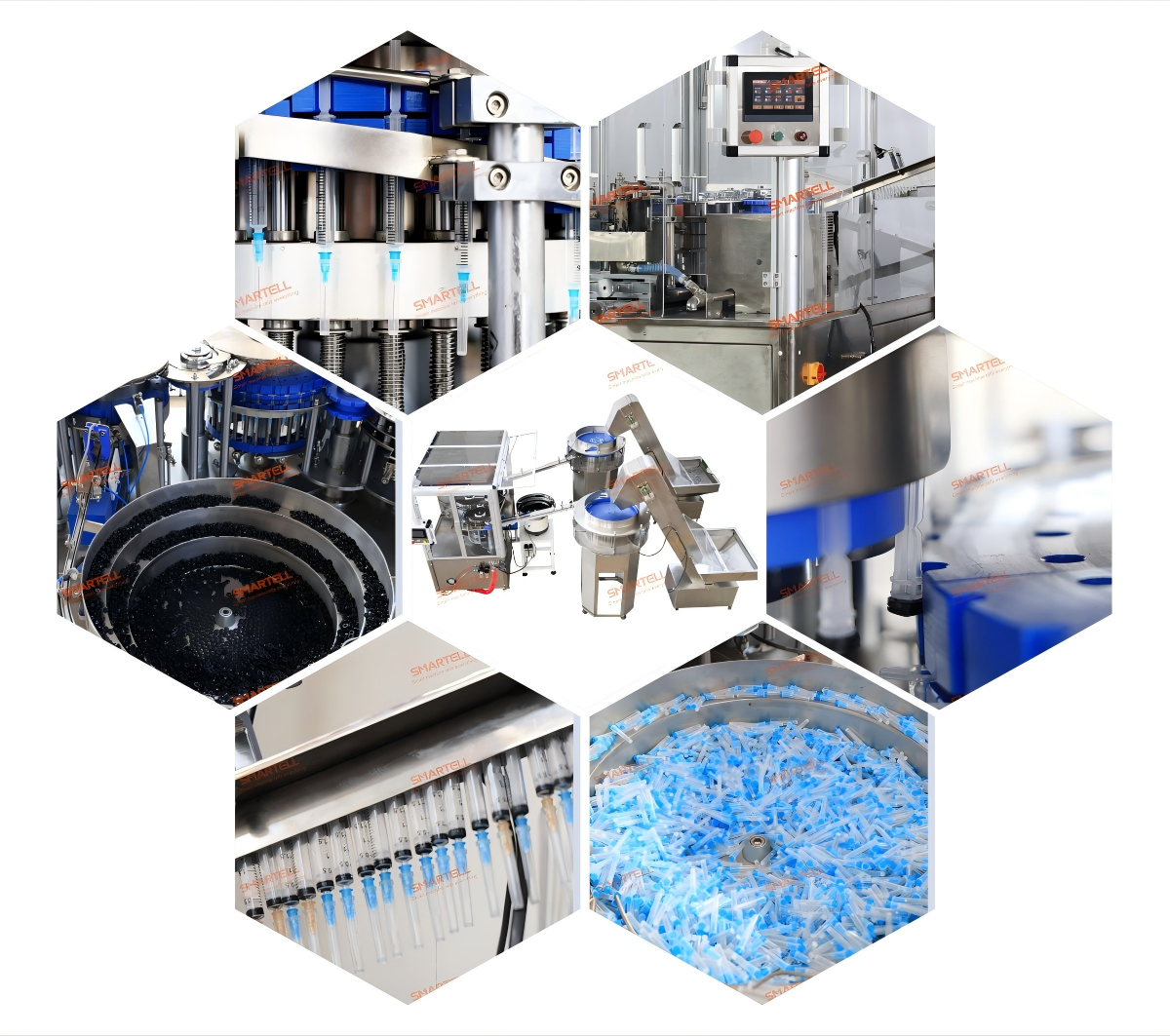

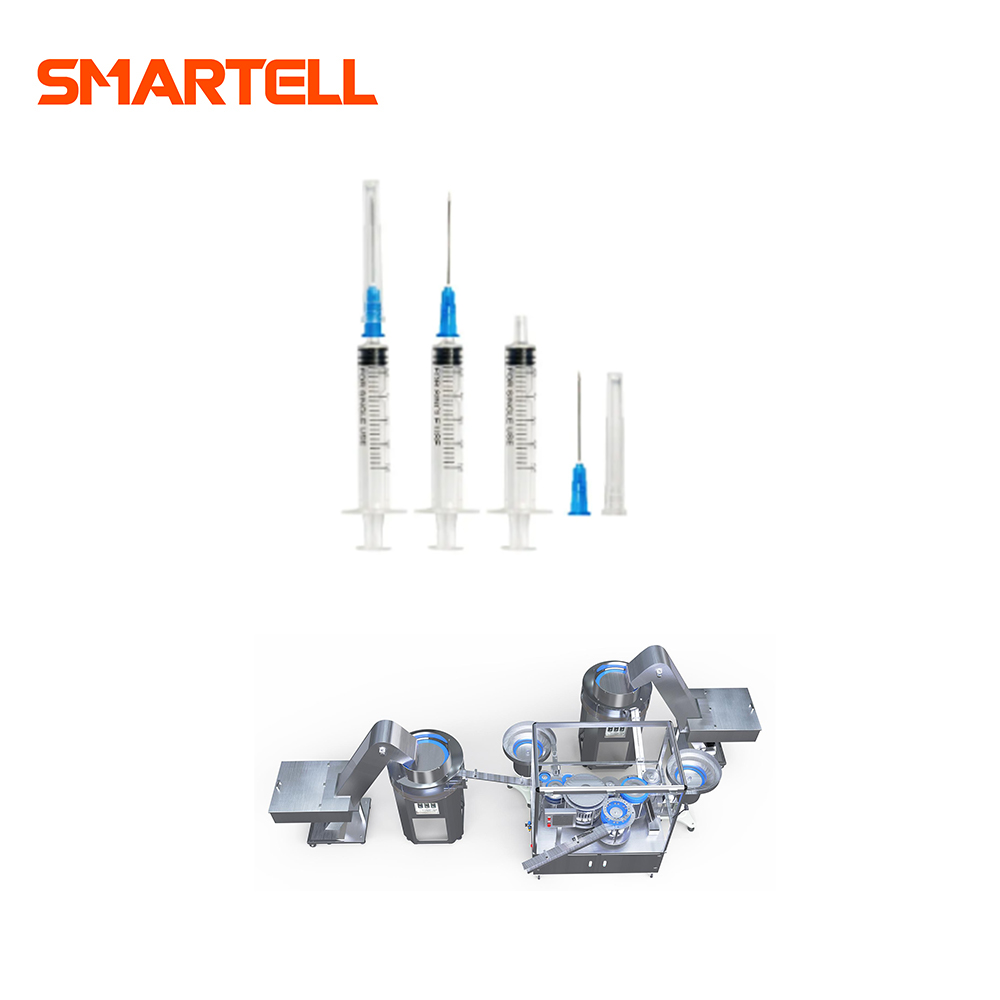

The Medical Syringe Assembly Machine is a fully automated production system designed for high-speed, high-precision assembly of disposable medical syringes. It is engineered to meet strict pharmaceutical manufacturing standards, ensuring stable output quality, low defect rates, and efficient mass production.

The machine is suitable for assembling a wide range of syringe types used in hospitals, clinics, and pharmaceutical industries, including luer lock and luer slip syringes.

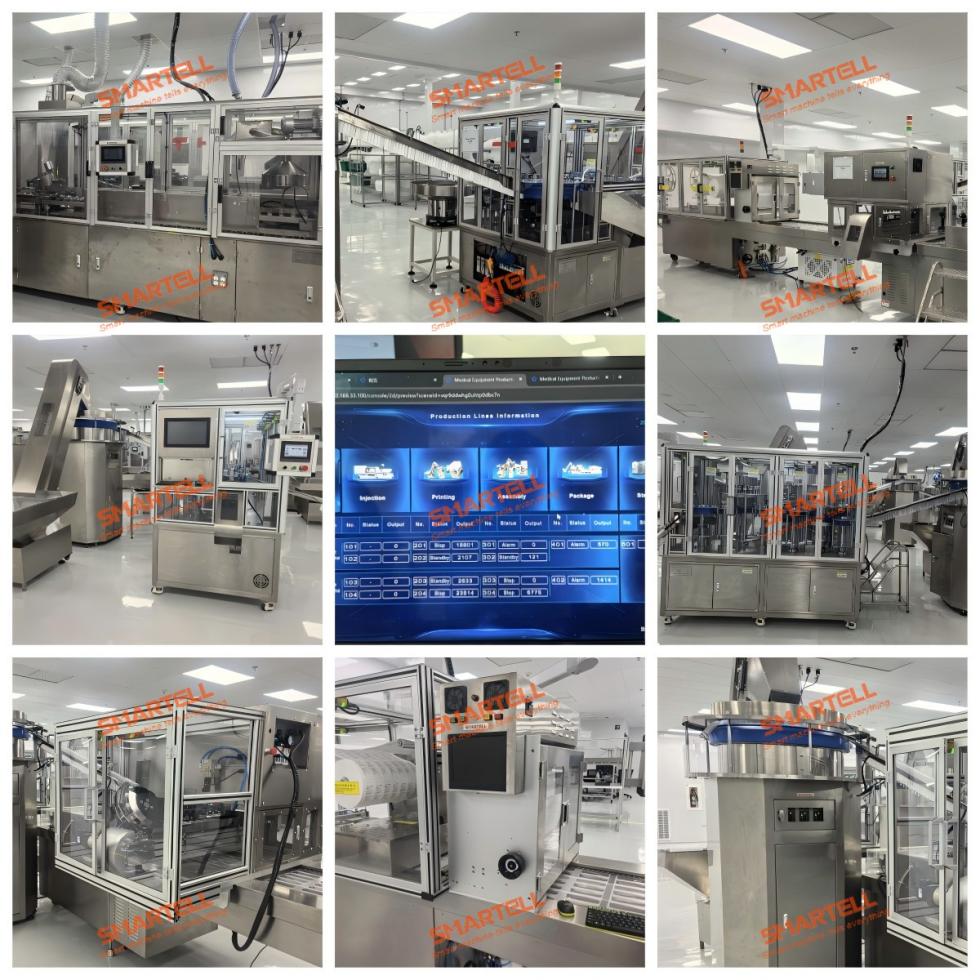

1. Machine Overview

This equipment integrates multiple assembly processes into a continuous automated line, typically including:

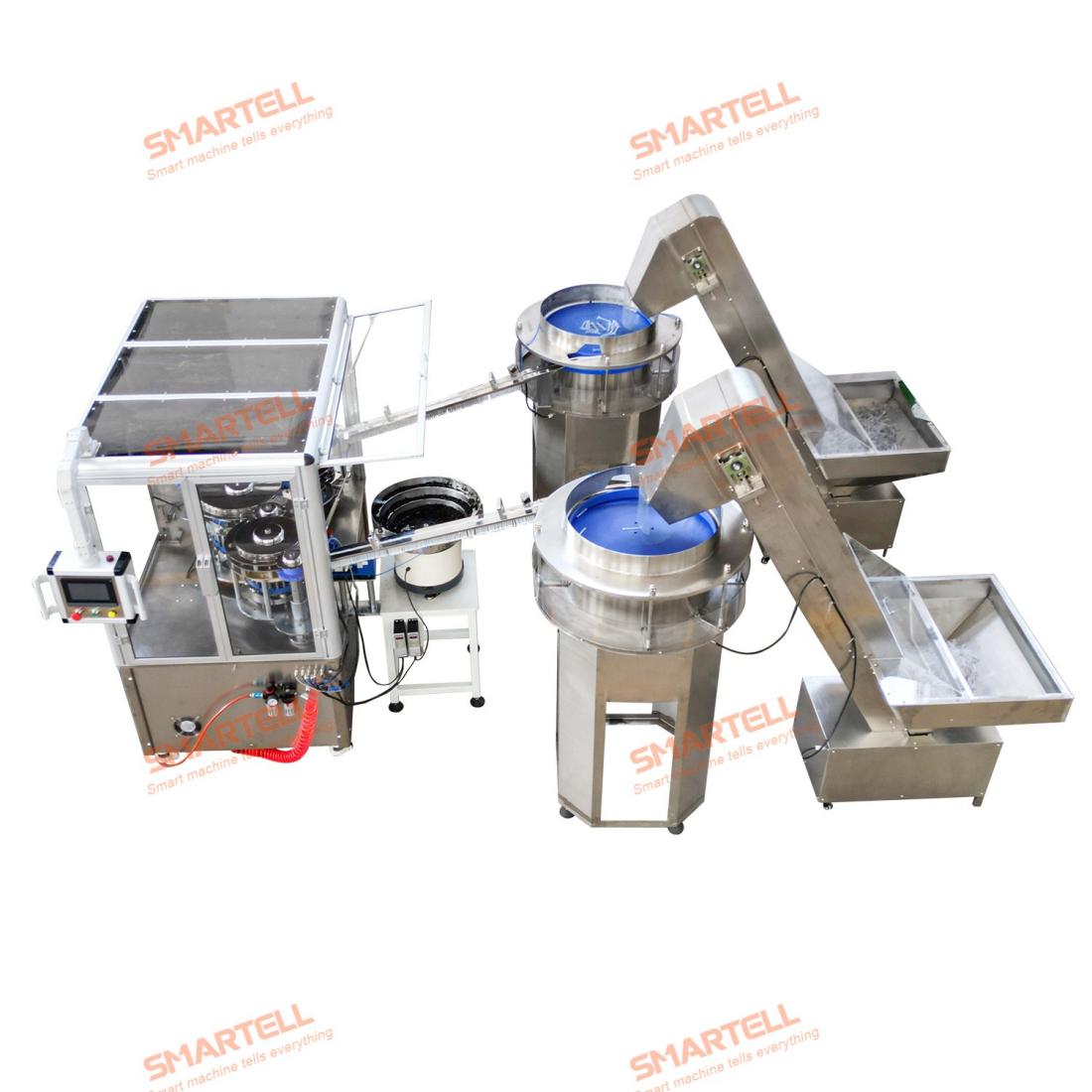

• Barrel feeding and orientation

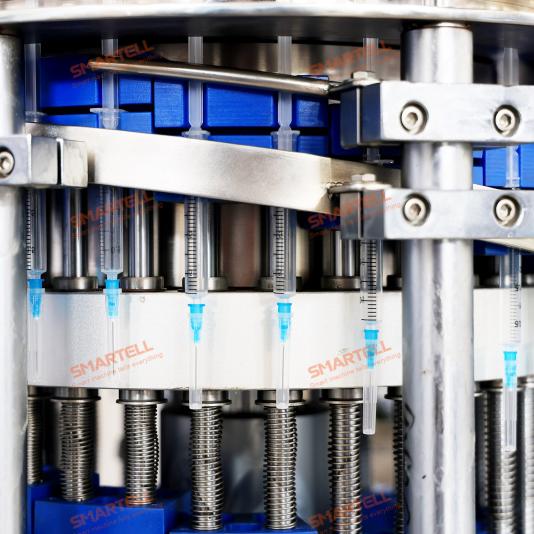

• Plunger rod insertion

• Rubber gasket assembly

• Silicone oil lubrication (optional)

• Hypodermic Syringe Needle assembly (optional module)

• Visual inspection (optional system)

• Automatic rejection of defective products

• Final product counting and discharge

The modular design allows customization based on production requirements and product types.

2. Key Technical Features

• High-speed servo-driven indexing system for precise motion control

• Fully automated multi-station assembly line

• Modular structure for flexible configuration and easy maintenance

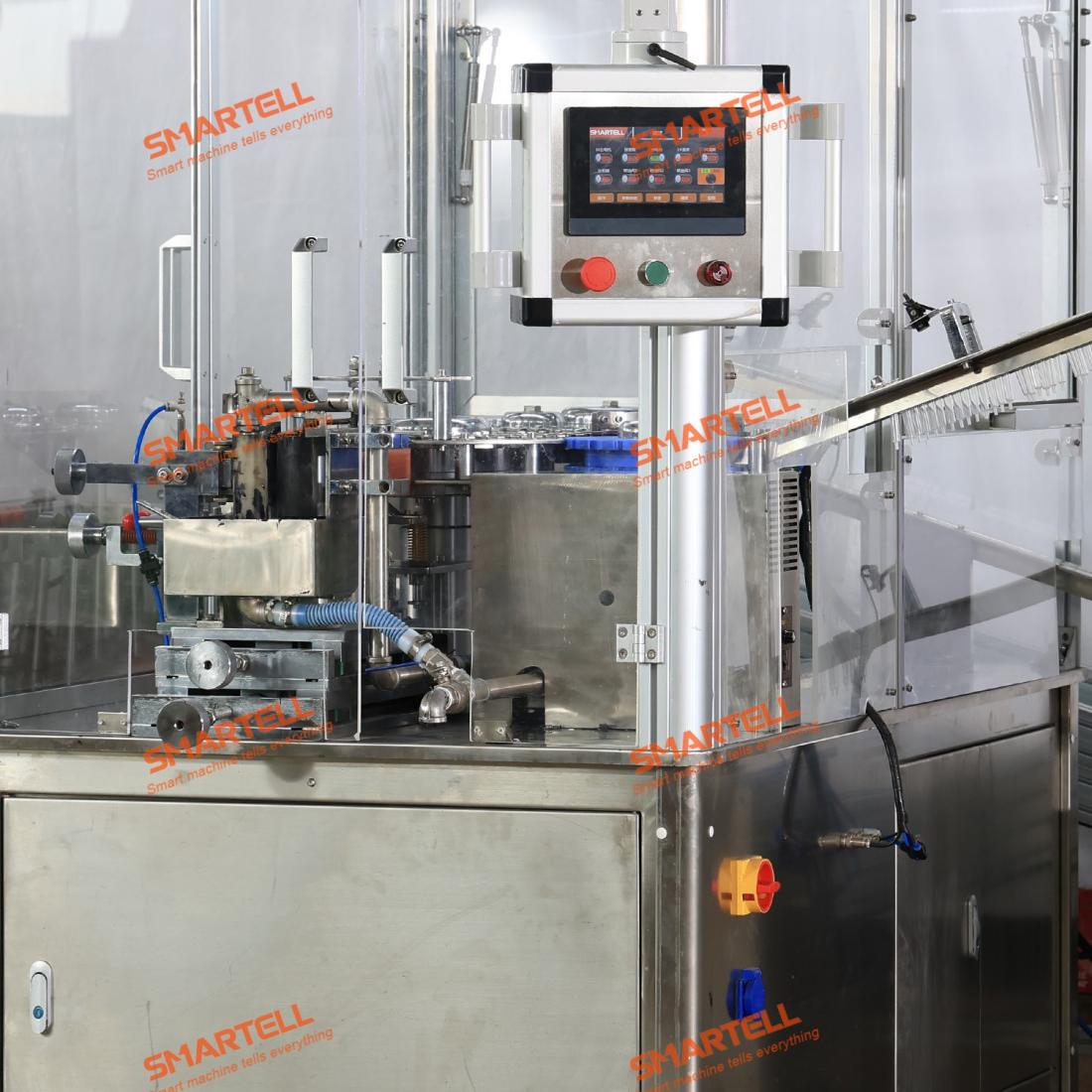

• Intelligent PLC control system with touchscreen HMI interface

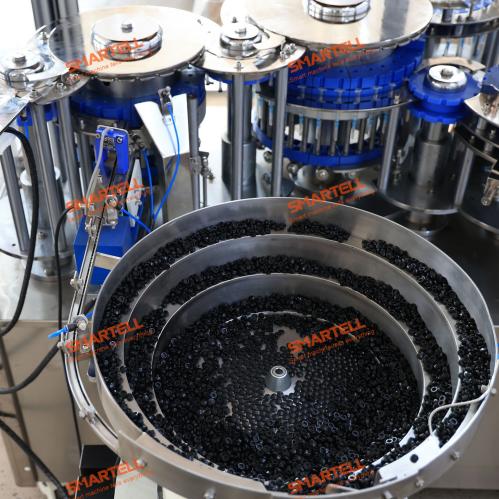

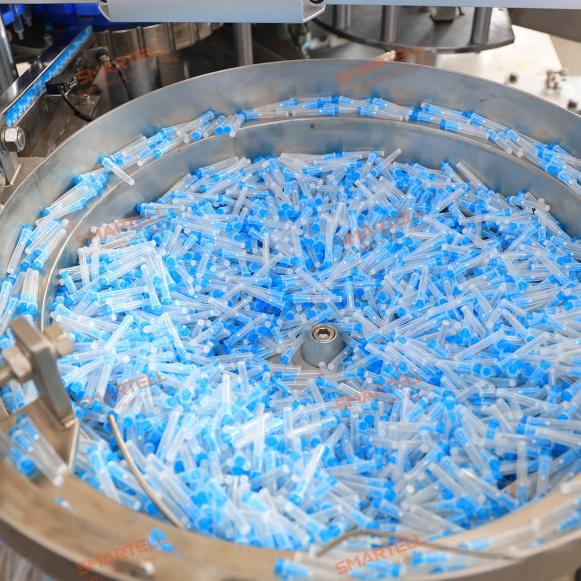

• High-precision feeding systems for consistent component alignment

• Compatible with cleanroom production environments

• Stainless steel contact parts (SUS304 / SUS316) for medical-grade compliance

• Real-time monitoring and fault alarm system

3. Technical Parameters

• Production Capacity: 120 – 300 pcs/min (depending on model and syringe size)

• Applicable Syringe Range: 1 ml – 50 ml

• Assembly Accuracy: ±0.1 mm

• Air Pressure: 0.5 – 0.7 MPa

• Power Supply: 220V / 50Hz (customizable)

• Installed Power: 3-10 kW

• Control System: PLC + Servo Motor Control

• HMI Display: 7” – 15” color touchscreen (optional)

• Machine Frame: Aluminum alloy + stainless steel structure

• Cleanroom Compatibility: ISO Class 7 / Class 8 environment ready

4. Key Advantages

4.1 High Efficiency Production

• Continuous automatic operation significantly reduces manual labor

• High-speed output ensures large-scale production capacity

• Stable cycle time improves production planning accuracy

4.2 High Precision & Quality Stability

• Servo control ensures accurate positioning at every station

• Reduced human error leads to consistent product quality

• Optional vision inspection improves defect detection rate

4.3 Flexible & Modular Design

• Easily configurable for different syringe sizes and types

• Optional modules allow customization for specific production needs

• Quick changeover reduces downtime between product batches

4.4 GMP & Cleanroom Compliance

• Designed for pharmaceutical-grade manufacturing environments

• Smooth stainless-steel surfaces reduce contamination risk

• Compatible with ISO cleanroom standards

4.5 Easy Operation & Maintenance

• User-friendly HMI interface with recipe management

• Real-time fault detection and alarm system

• Modular components simplify maintenance and replacement

4.6 Cost Efficiency

• Reduces labor costs and manual assembly dependency

• Minimizes material waste through precise control systems

• High uptime improves overall equipment effectiveness (OEE)

5. Optional Configurations

• Automatic needle assembly module

• Silicone oil lubrication system

• Vision inspection system (missing part, misalignment, defect detection)

• Automatic reject and sorting unit

• Integrated packaging line interface

• Laminar flow cleanroom enclosure

6. Applications

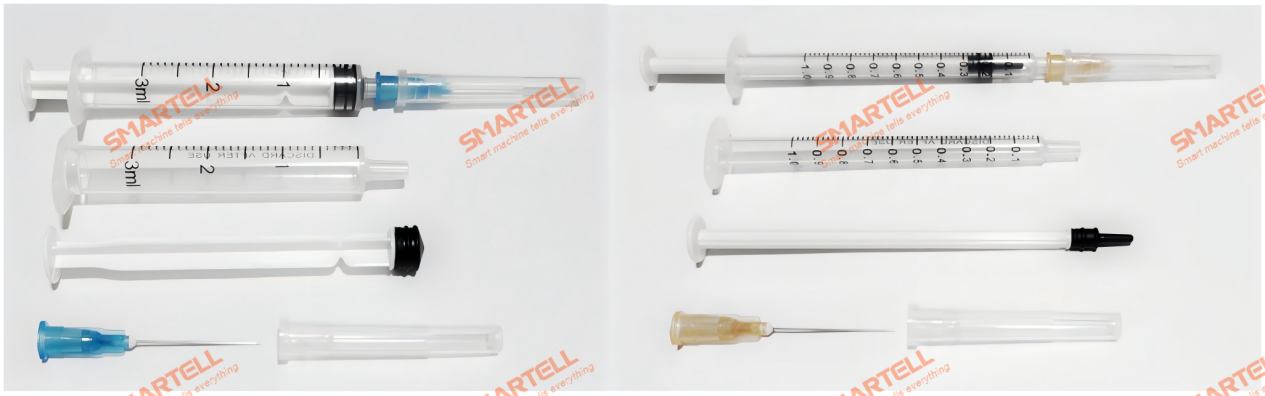

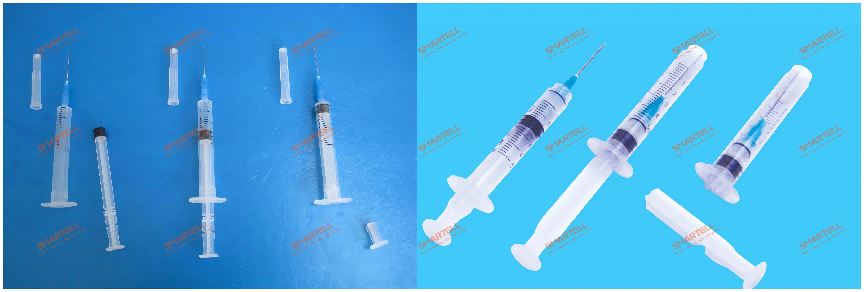

• Disposable medical syringes

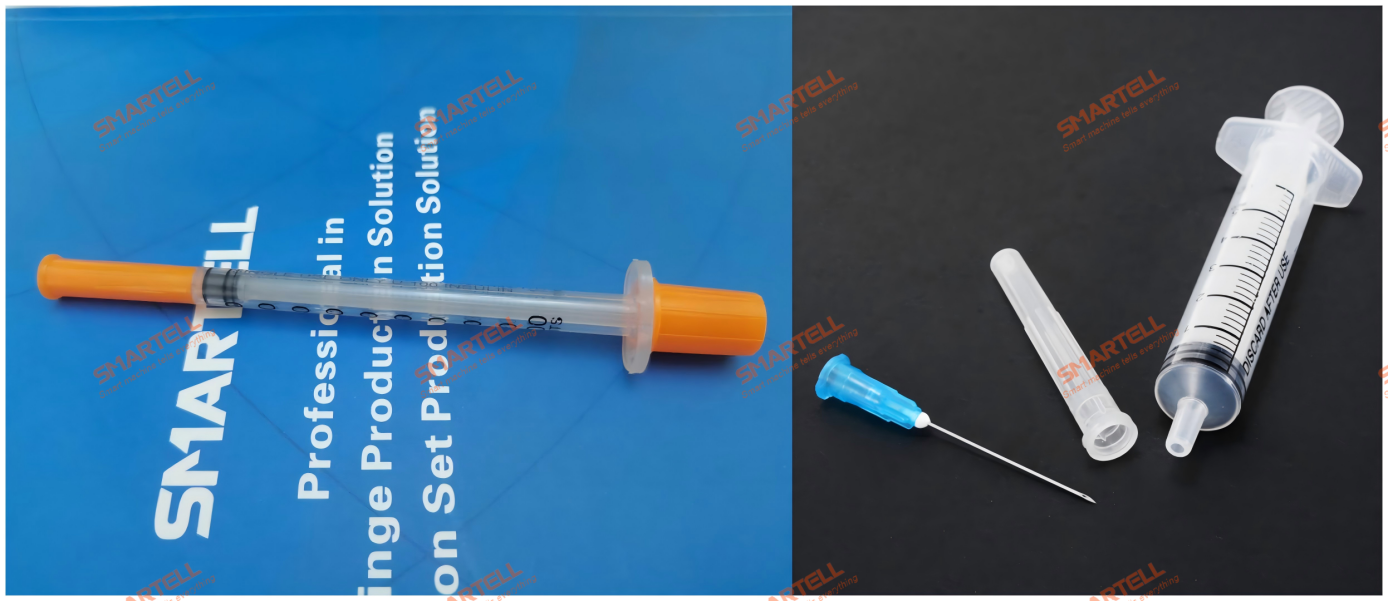

• Insulin syringes/Safety Syringe/Auto Disable Syringes

• Vaccination syringes/ Syringe Filter/ Feeding Syringe

• Hospital injection devices

• Pharmaceutical production lines
