How To Get A Good Medical Reel &Pouch Making Machine?

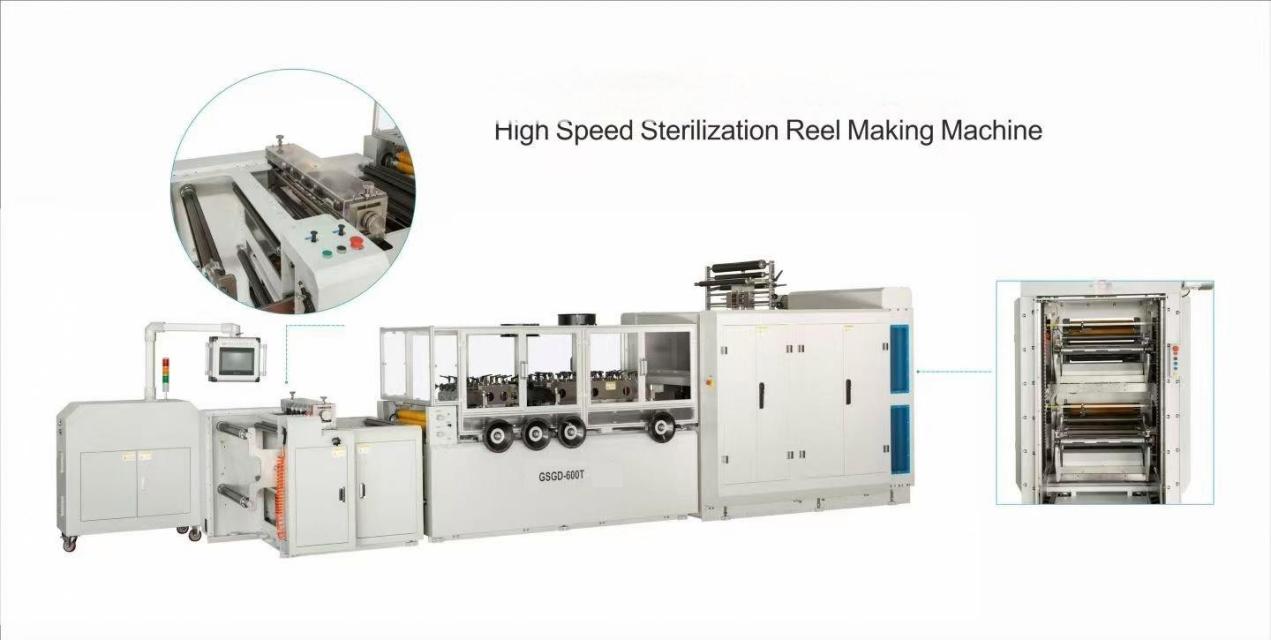

1. GSGD-600T Medical Reel Pouch Making Machine:

For various heat-sealable plastic composite films (including BOPP, CPP, PET, PE, nylon, and aluminum-coated films) as well as paper-plastic composite films, and for combinations of special-grade films, coated special-grade films, paper, and coated paper:

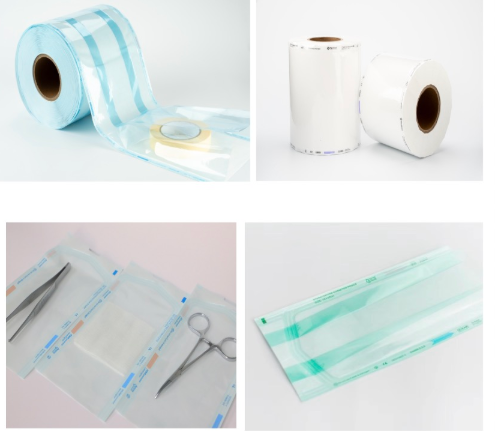

Capable of manufacturing medical reel pouch with diameters of 50 mm, 75 mm, 100 mm–600 mm, and supports multi-unit assembly.

2 The equipment includes：

2.1 Material Discharge Mechanism：

a）Maximum Uncoiling Diameter: 600 Mm

2.1.1 Equipped with two main unwinding stands, utilizing key-bar type expanding shafts for mounting.

b） Maximum bag width: 600 mm

c） Minimum substrate width: 100 mm

d） Equipped with a correction control system.

e） The unwind feed is controlled by an AC motor equipped with a variable-frequency drive.

f） The tension control method employed is the magnetic powder brake system.

g） The position of the oscillating roller is detected by a precision potentiometer.

h） Electromagnetic brake with integrated control.

2.2.Feeding Mechanism

2.2.1 Features a dual-motor feeding drive system, with a tension adjustment roller and a precision potentiometer for tension control for each drive unit.

2.3 Hot Stamping Station

2.3.1 Main unit servo motor control–pressing duration; independently adjustable (0s–5 s).

2.3.2 Independent temperature control, 0–280°C.

2.3.3 Five heating plates; effective length: 1000 mm; effective width: 95 mm; includes fabric ironing bracket; 5-channel temperature control.

2.3.4 Five cooling plates, with an effective length of 415 mm and an effective width of 95 mm.

2.4 Winding and Edge Cutting Station

2.4.1 Edge-cutting circular blade system.

2.4.2 One waste disposal system.

2.4.3 Six sets of circular knives; one knife shall be kept as a backup.

2.4 Finished product winding:Material is wound via a mechanical slip

shaft, with magnetic powder tension control.

2.5 Control System

2.5.1 Centralized control system,PLC centralized control function configuration.

2.5.2 Main motor: Panasonic MADA servo motor with reducer.

2.5.3 Traction motor: Panasonic servo motor .

2.5.4 Touchscreen control.

2.5.5 Cylinders and solenoid valves: AirTAC

2.6 Others：

2.6.1 Body wall panels: High-quality Q235 steel sheets with a thickness of 16 mm; reinforcing beams are added as specified.

2.6.2 Chassis color: White ; Chassis cover: Q235 steel plate with powder coating on the outer surface, or 304 stainless steel plate; components above the chassis shall undergo nickel plating, while components below the chassis shall undergo galvanizing.

2.6.3 All pipelines and air ducts are embedded within the equipment and are numbered; they are aesthetically pleasing, easy to maintain, safe, and reliable.

2.6.4 The pre-installed wiring and a vacant electrical cabinet are reserved for the additional heating system.

2.6.5 The system features a comprehensive security alarm function.

2.6.6 When starting a machine after an emergency stop, the machine must be stopped immediately.

3.Equipment Functions

3.1 Reel Pouch Making Speed: 30 m/min

3.2 Equipment production effective width: 100 mm – 600 mm.

3.3 The heating system temperature is independently controlled with a range of ±12°C.

3.4 Single-feed length tolerance: ±0.5 mm.

3.5 Material discharge edge-clamping system tolerance: bag width tolerance ±1.0 mm.

3.6 The equipment features an overall design that is easy to clean and rust-resistant, making it ideal for use in clean-room workshops.

3.7 The upper section of the machine is fitted with an aluminum alloy protective cover, which features an imported acrylic sheet on its surface
