How to Plan a Syringe Manufacturing Workshop: A Practical Factory Layout Guide

Views: 0     Author: david     Publish Time: 2026-09-04      Origin: Site

Inquire

Planning a syringe manufacturing workshop is much more than placing machines inside an available building. A well-designed factory needs to connect production flow, cleanroom requirements, material movement, utilities, packaging, sterilization, storage, and future expansion into one practical layout.

For manufacturers planning a new disposable syringe production facility, the workshop layout should ideally be developed before construction and equipment installation. A well-planned layout can reduce unnecessary transportation, improve production efficiency, simplify maintenance, and provide better control of the manufacturing environment.

This article uses a disposable syringe production line as an example to explain how to approach factory layout planning from the beginning.


1. Start With the Syringe Production Flow

Before drawing walls or placing equipment, define the complete production process.

A typical disposable syringe manufacturing process may include:

Raw Material Storage → Injection Molding → Component Inspection → Printing → Assembly → Inspection → Packaging → Sterilization → Finished Product Storage → Shipment

The main components may include the syringe barrel, plunger, gasket, cap, and other product-specific components.

Depending on the syringe type, additional processes such as needle assembly or safety-component assembly may also be required.

The first principle is simple:

Draw the production flow before placing the equipment.

This helps ensure that materials and products move logically through the factory rather than repeatedly crossing between different areas.

2. Divide the Factory Into Functional Areas

A syringe production facility can generally be divided into several zones.

Raw Material Warehouse

Used for plastic resin, rubber components, packaging materials, and other incoming materials.

Injection Molding Area

Used to manufacture syringe barrels, plungers, caps, and other plastic components.

Inspection & Printing Area

Used for visual inspection, dimensional checking, and printing graduations or product information.

Assembly Area

Used for assembling the syringe components and performing functional inspections.

Cleanroom

Used for manufacturing processes requiring controlled environmental conditions according to the product and applicable requirements.

Packaging Area

Used for PE bag, pouch, or blister packaging.

EO Sterilization Area

Used when ethylene oxide is selected as the sterilization method.

Aeration Area

Used after EO sterilization to allow appropriate removal of residual EO.

Finished Product Warehouse

Used for qualified finished products before shipment.

A basic production flow can therefore be arranged as:

Raw Materials → Production → Inspection → Assembly → Packaging → Sterilization → Finished Products → Shipment

3. Plan the Injection Molding Area First

Injection molding is normally one of the largest areas in a syringe factory.

Different machines may be used for:

Syringe barrels

Plungers

Caps

Other plastic components

When positioning an injection molding machine, do not consider only its machine dimensions.

The layout also needs to provide space for:

Operator access

Material loading

Product collection

Mold changing

Maintenance

Electrical cabinets

Cooling-water connections

Compressed-air connections

For preliminary layout planning, approximately 1.5 m of clear working space between major equipment or equipment rows can be used as a practical reference.

This 1.5 m should not be treated as a universal regulatory requirement. The final clearance should be checked against the equipment manufacturer's maintenance requirements, safety requirements, fire regulations, and local building codes.

A useful calculation is:

Machine Footprint + Working Space + Maintenance Space + Material Flow

rather than simply drawing the machine footprint.

4. Cooling System Planning

Cooling is an important utility in injection molding because both the machines and molds generate considerable heat.

A typical system may include:

Industrial Chiller → Cooling Water Pump → Distribution Pipes → Machines / Molds → Return Water → Chiller

The required cooling capacity depends on:

Number of injection molding machines

Machine size

Mold cooling requirements

Production cycle

Ambient temperature

Auxiliary equipment

Future expansion

The chiller and related equipment are generally better located outside the main clean production area, where maintenance can be performed more easily.

When drawing the layout, remember to reserve space for pipes, pumps, valves, drainage, electrical connections, and maintenance access.

A machine may fit physically into the room while still lacking sufficient space for its utility connections.

5. Cleanroom Planning

The cleanroom is one of the most important areas of a disposable syringe factory.

A cleanroom is a controlled environment where parameters such as airborne particles, temperature, humidity, pressure, and airflow are controlled according to the applicable requirements.

The required cleanroom classification depends on the product, process, quality system, and applicable regulations.

A typical personnel flow may be:

General Area → Changing Room → Gowning → Preparation → Cleanroom

Material flow may follow:

Material Preparation → Transfer Area → Pass Box / Airlock → Cleanroom

The layout should minimize unnecessary crossing between personnel, raw materials, components, and finished products.

The cleanroom also needs enough space for equipment, operators, material movement, cleaning, maintenance, and HVAC systems.

6. Material Transfer and Intermediate Storage

After injection molding, components need to move to printing, inspection, or assembly.

Instead of allowing products to move freely throughout the factory, dedicated material transfer areas and intermediate storage zones can be planned between major production sections.

For example:

Injection Molding → Component Transfer → Inspection / Printing → Assembly

For cleanroom production, materials may enter through controlled transfer areas or pass boxes.

The transfer area should be designed according to the actual size of production carts, containers, or pallets.

Always consider not only the doorway itself, but the complete movement:

Cart → Door → Turning Space → Placement → Transfer

7. Syringe Assembly Area

After components have been manufactured and inspected, they are transferred to the syringe assembly area.

A typical automated assembly process may include:

Barrel Feeding → Gasket / Plunger Assembly → Component Inspection → Functional Inspection → Product Collection

Semi-automatic and fully automatic assembly systems can be selected according to production capacity and automation requirements.

When placing an assembly machine, leave sufficient space for:

Material feeding

Product collection

Operator access

Electrical cabinets

Pneumatic connections

Cleaning

Maintenance

The assembly area should also be positioned logically in relation to the cleanroom, inspection, and packaging areas.

8. Packaging Area

After assembly and inspection, syringes move to packaging.

Common packaging methods include:

PE Bag Packaging

Paper-Plastic Pouch Packaging

Blister Packaging

The packaging area should not only contain the packaging machine. It should also include space for:

Incoming Syringes → Packaging → Inspection → Carton Packing → Transfer

Packaging materials should have an organized storage area close enough to the packaging section to reduce unnecessary transportation.

The required area should also consider finished cartons and temporary product accumulation between processes.

9. EO Sterilization Area

If EO sterilization is used, the sterilization system should be planned as a dedicated functional area.

A simplified process is:

Packaged Syringes → EO Sterilization → EO Removal → Aeration → Finished Products

EO equipment requires special consideration for:

Gas supply

Ventilation

Gas detection

Safety interlocks

Temperature and humidity control

Pressure control

Loading and unloading

Process data recording

For preliminary planning, EO chamber capacities can be considered from approximately 1 m³ to 25 m³, depending on the required production capacity.

The chamber should not simply be filled to 100% of its nominal volume. Space is needed for gas circulation, loading configuration, monitoring probes, and operational requirements.

As a preliminary planning reference, approximately 20–30% additional chamber capacity may be considered beyond the calculated product-load volume. The final loading configuration must be determined through process development and validation.

10. Finished Product Warehouse

After sterilization and the required aeration process, qualified products can move to the finished product warehouse.

A simple flow is:

Sterilization / Aeration → Finished Product Warehouse → Loading Area → Shipment

The warehouse should be sized according to:

Daily Production × Storage Days × Package Volume

Separate areas may also be required for products awaiting inspection or release, depending on the factory's quality system.

Locating the finished product warehouse close to the shipping area can reduce unnecessary internal transportation.

11. Utilities Should Be Included in the Layout

A factory layout is not only about machines and walls.

A syringe production facility may require:

Electrical Power

For injection molding machines, assembly equipment, packaging machines, HVAC, chillers, compressors, and sterilization systems.

Compressed Air

For pneumatic cylinders, valves, feeding systems, and automation equipment.

Cooling Water

For injection molding machines and molds.

HVAC

For cleanrooms and controlled production areas.

Drainage

For cooling systems, cleaning areas, and other utility systems.

Exhaust and Ventilation

Particularly important for areas with specific environmental or safety requirements.

These utility routes should be planned before final equipment positioning.

12. How to Draw a Syringe Factory Layout

If you are starting a factory layout from scratch, follow this sequence.

Step 1 — Measure the Building

Record:

Length × Width × Height

Then mark columns, doors, loading docks, emergency exits, windows, and existing utilities.

Step 2 — List All Equipment

For each machine, record:

Length × Width × Height + Weight + Power + Compressed Air + Cooling Water

Step 3 — Draw the Production Flow

For example:

Injection Molding → Inspection → Printing → Assembly → Packaging → Sterilization

Step 4 — Divide Functional Areas

Mark:

Warehouse / Production / Cleanroom / Packaging / Sterilization / Utilities

Step 5 — Place Large Equipment First

Start with injection molding machines, chillers, compressors, EO chambers, and large packaging equipment.

Step 6 — Add Working Space

Use approximately 1.5 m of clear space around major equipment or between equipment rows as a preliminary planning reference, then adjust according to the actual equipment requirements.

Step 7 — Add Material and Personnel Routes

Use arrows to show the movement of:

Raw Materials → Components → Finished Products

and the personnel flow through the facility.

Step 8 — Add Utilities

Finally, add:

Electrical → Compressed Air → Cooling Water → HVAC → Drainage → Exhaust

At this point, your preliminary factory layout will be much closer to a practical production plan.

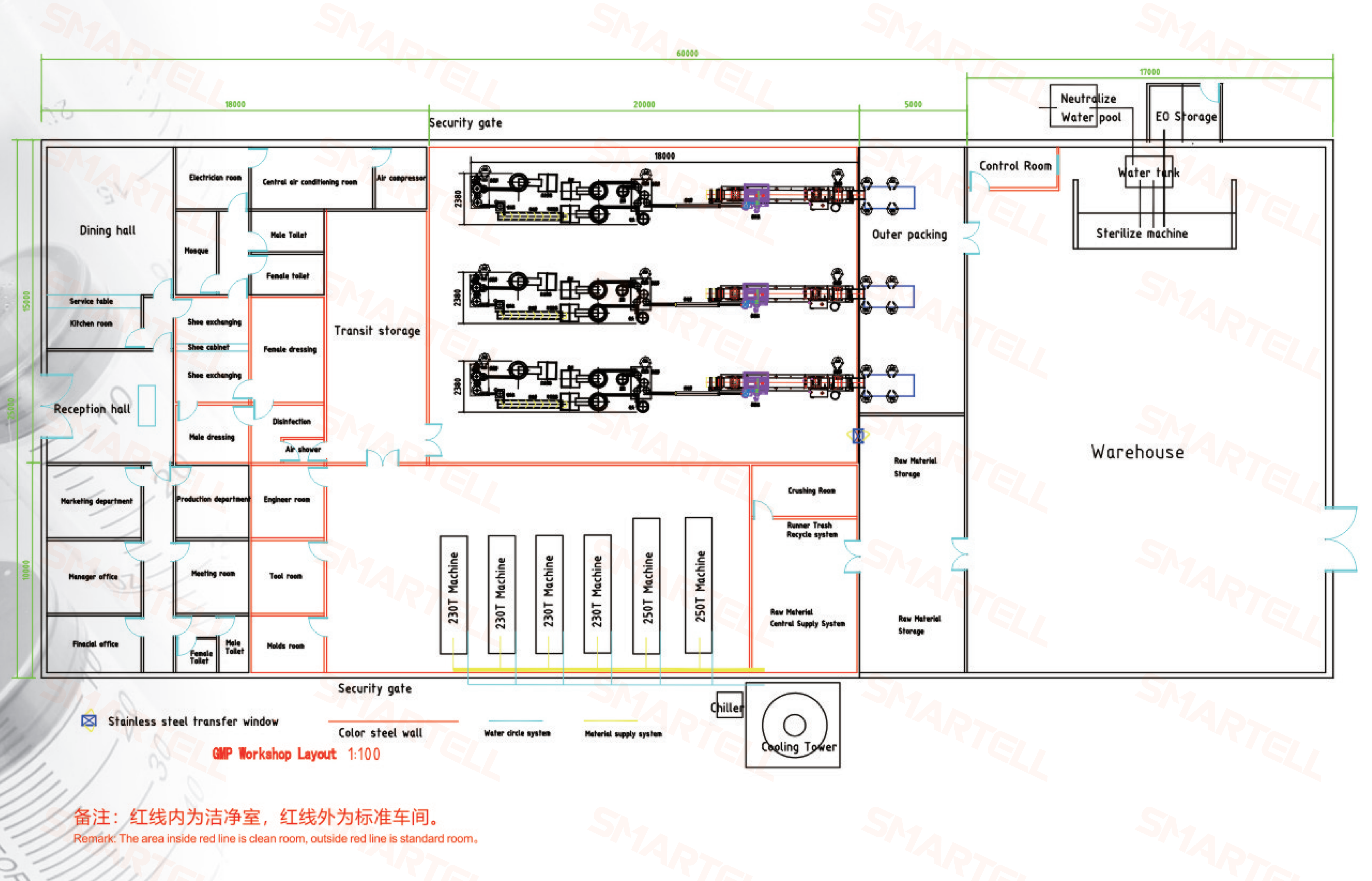

13. Example of a Basic Syringe Factory Layout

A simple conceptual layout could follow this sequence:

Raw Material Warehouse

Injection Molding Area

Component Inspection / Printing

Cleanroom & Syringe Assembly

Packaging Area

EO Sterilization

Aeration

Finished Product Warehouse

Shipping Area

This is only a starting concept. The final layout should be adjusted according to the building dimensions, production capacity, equipment specifications, cleanroom requirements, utilities, safety regulations, and future expansion plans.

14. Plan for Future Expansion

One of the easiest mistakes to make is designing a factory only for today's production capacity.

For example, a manufacturer may initially install five injection molding machines but plan to add another five machines later.

If the original layout leaves no space for additional machines, cooling capacity, electrical capacity, or material flow, future expansion can become expensive.

Therefore, when possible, reserve space for:

Additional Production Equipment + Utility Expansion + Warehouse Capacity + Additional Packaging Lines

A good layout should not only work today—it should leave room for tomorrow.

15. From Factory Layout to Complete Production Solution

Every syringe project is different. Building dimensions, syringe specifications, target output, automation level, packaging method, and sterilization requirements can all influence the final workshop design.

At SMARTELL TECHNOLOGY, equipment planning can be considered together with the complete syringe manufacturing process, covering areas such as injection molding, component production, assembly, packaging, and sterilization.

For a new project, the most useful starting information is:

Factory Size + Syringe Specification + Target Output + Automation Level + Packaging Method

From these basic parameters, the production flow, equipment list, utility requirements, cleanroom arrangement, and preliminary workshop layout can then be developed step by step.

The purpose of a good factory layout is not simply to fit as many machines as possible into a building.

It is to create a clear, efficient, and maintainable production flow, where equipment has sufficient working space, materials move logically, clean areas remain controlled, utilities are accessible, and future expansion remains possible.

For syringe manufacturers, investing time in layout planning before construction and equipment installation can make the entire production project more efficient from the very beginning.
