Infusion sets are widely used single-use medical devices for delivering fluids, medications, nutrients, and other compatible solutions into a patient's vascular system. They are commonly used in hospitals, clinics, emergency departments, operating rooms, intensive care units, and other healthcare settings.
Although an infusion set may look relatively simple, its structure can vary significantly depending on its intended application. Different designs may include different types of spikes, drip chambers, tubing, flow regulators, filters, injection sites, connectors, and other components.
For medical device manufacturers, understanding these differences is important when selecting components, designing assembly processes, determining automation requirements, and planning an efficient production line.
An infusion set is a sterile, single-use medical device that creates a fluid pathway between an infusion container and a patient's intravenous access device.

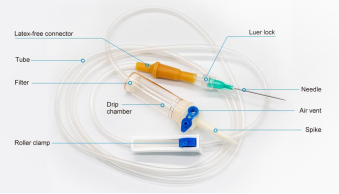

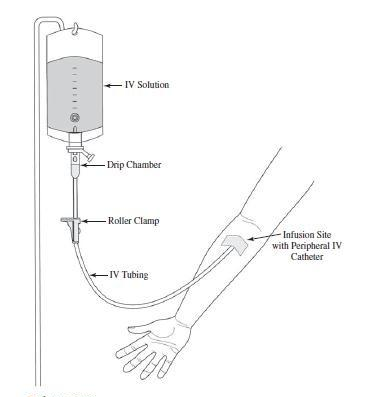

A typical gravity infusion system can be illustrated as:
Infusion Container → Spike → Drip Chamber → Tubing → Flow Control → Patient-End Connector → IV Access Device
Additional components, such as filters, injection sites, air inlets, or needleless connectors, may be incorporated depending on the product design.
The primary function of an infusion set is to provide a reliable pathway for fluid delivery while allowing appropriate flow control and safe clinical operation.
Because different medical applications have different requirements, there is no single infusion-set configuration suitable for every situation.
The spike penetrates the closure of an infusion container and establishes the connection between the container and the infusion set. Spikes can have different designs depending on the type of container being used. Some configurations also include an air inlet or protective cap. The dimensional accuracy and connection performance of the spike are important for reliable assembly and fluid delivery.
The drip chamber allows healthcare professionals to observe the flow of liquid and monitor the infusion rate during gravity infusion. It also provides a convenient area for priming the infusion set before connection to the patient. Different drip-chamber designs can be used for different applications, including conventional macrodrip and microdrip configurations.
The tubing forms the main fluid pathway between the drip chamber and the patient-end connector. Medical-grade tubing needs to provide suitable flexibility, transparency, dimensional stability, and compatibility with the intended fluid and sterilization process. Tube length and internal diameter may vary according to the product design and application.
A roller clamp or other flow-control device is commonly used to regulate the rate of fluid delivery. Its operating consistency is important because variations in component dimensions or assembly can affect flow-control performance.
Some infusion sets include a filter in the fluid pathway. The filter design and location depend on the intended application and product specifications. Filtered configurations are particularly important for applications where additional particulate control is required.
An injection site provides an access point for administering compatible medications or additional fluids. Different designs may be used depending on the product requirements. Sealing performance and connection reliability are important considerations during both product development and manufacturing.
The patient-end connector connects the infusion set to the downstream IV access device. Different connector configurations may be used according to the intended application and applicable requirements.

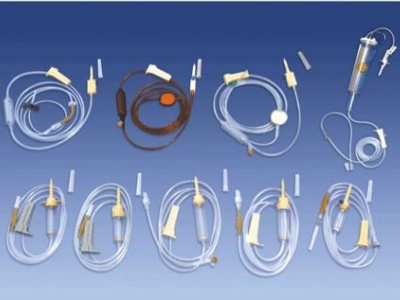

The standard gravity infusion set is one of the most widely used configurations.
It commonly includes a spike, drip chamber, tubing, flow regulator, and patient-end connector. Depending on the design, it may also include an injection site or filter.
Its relatively simple structure makes it suitable for high-volume manufacturing.
A blood transfusion set is specifically designed for the administration of blood or blood components.
Compared with a standard infusion set, it generally incorporates a dedicated filter suitable for blood administration.
Blood transfusion sets require particular attention to filter assembly, tubing connections, fluid-path integrity, and cleanliness.
From a manufacturing perspective, the additional filter creates extra assembly and inspection requirements compared with a basic infusion set.
(Standard Gravity Infusion Set)
(Blood Transfusion Set)
A microdrip infusion set is designed for applications where relatively small fluid volumes need to be administered with closer control of the infusion rate.
Microdrip sets can be particularly useful when accurate observation and control of relatively low infusion rates are important.

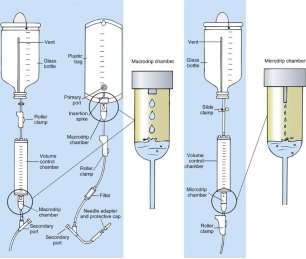

A burette infusion set incorporates a graduated chamber into the infusion pathway.
The chamber allows a defined volume of fluid or medication to be measured before administration to the patient.
Because of the additional graduated chamber, burette sets generally have a more complex structure and assembly process than basic infusion sets.
Manufacturers need to consider chamber assembly, tube connections, sealing, inspection, and packaging.
(Burette Infusion Set)
A filtered infusion set incorporates a filter into the fluid pathway to provide an additional filtration function according to the intended product design.
The filter's material, filtration characteristics, position, and connection method should be considered during product development.
For automated production, filter feeding and orientation can also become important factors in assembly-line design.
Another important distinction is whether an infusion set incorporates an air inlet.
A non-vented infusion set does not require an integrated air inlet.
It is commonly used with collapsible containers or flexible bags, which can collapse as fluid is removed.
Therefore, the choice between vented and non-vented configurations depends partly on the type of infusion container used with the product.
(Filtered Infusion Set)
(Vented and Non-Vented Infusion Sets)
The product structure directly affects the manufacturing process.
A basic infusion set may require processes such as:
Component Injection Molding → Tube Cutting → Component Assembly → Inspection → Packaging → Sterilization
More complex products may require additional operations, including:
Filter Assembly → Injection Site Assembly → Burette Assembly → Connector Assembly → Leak Testing → Functional Inspection
As product complexity increases, manufacturers may need additional assembly stations, automatic feeding systems, inspection equipment, and quality-control procedures.
For this reason, the product structure and target capacity should normally be confirmed before selecting production equipment.
At SMARTELL TECHNOLOGY, we understand that different infusion-set products require different production solutions.
A standard infusion set, blood transfusion set, microdrip set, or burette set may have significantly different component structures and assembly requirements. Therefore, production equipment should be selected according to the actual product configuration rather than using a one-size-fits-all approach.
SMARTELL TECHNOLOGY can provide customized solutions covering key processes such as component assembly, tube cutting and assembly, inspection, leak testing, packaging, and other supporting processes.
Based on the customer's product structure, production capacity, automation requirements, factory conditions, and future expansion plans, we can help develop a suitable production-line configuration and workshop layout.
For customers planning a new infusion-set manufacturing project, confirming the product structure and target capacity is the first step. Once these requirements are clear, the equipment configuration and production-line layout can be developed accordingly.
