Packaging is an essential part of disposable medical product manufacturing. It protects products during transportation and storage, supports product presentation, and, for sterile medical devices, helps maintain the required sterile barrier until the point of use.
However, there is no single packaging method that works for every medical product. A long flexible infusion set has completely different packaging requirements from a syringe, a catheter, or a pair of medical gloves.
For manufacturers, choosing the right packaging method means considering not only the appearance of the final package, but also product structure, packaging material, production capacity, automation level, sealing performance, and sterilization requirements.
Among the commonly used solutions for disposable medical products are coiling and wrapping, PE bag packaging, soft blister packaging, rigid blister packaging, and automated glove packaging.
Coiling and wrapping is widely used for medical products containing long flexible tubing, such as infusion sets, extension tubes, suction tubes, feeding tubes, and other tubing-based medical devices.
A long tube cannot simply be placed into a package randomly. It usually needs to be wound into a controlled shape so that the finished package is compact, consistent, and easy to handle.
For an infusion set, the tubing may need to be wound while keeping components such as the drip chamber, flow regulator, injection port, and spike in predetermined positions.
The first priority is stable winding.
Medical tubing is flexible and can easily deform. Excessive winding tension may compress or bend the tubing, while insufficient tension can result in a loose and inconsistent coil.
A suitable machine should therefore control: Winding tension, Winding diameter, Winding speed, Tube positioning, Product orientation
Servo-driven winding systems can help maintain consistent winding performance, while sensors can monitor tube presence and abnormal conditions.
Another important consideration is product positioning. Different infusion sets may have different tube lengths and component configurations. Adjustable winding diameters, changeable tooling, and programmable parameters can make the machine more adaptable to different product specifications.
After winding, the product needs to be positioned correctly before wrapping and sealing. Stable film feeding and sealing are therefore also important to the overall packaging process.

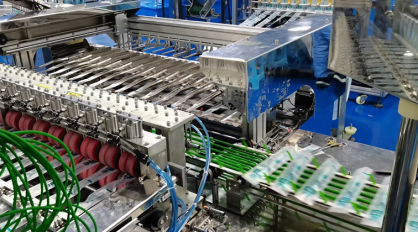

(SMT-3405 Automatic Winding and Packing Machine)
PE bag packaging is one of the more flexible packaging methods for disposable medical products.
Depending on the product and packaging design, PE or other polymer-film bags can be used for syringes, medical tubes, accessories, gloves, and various disposable components.
An automatic PE bag packaging system may integrate:
Bag Feeding → Bag Opening → Product Insertion → Positioning → Sealing → Cutting → Inspection
One of the main challenges is reliable bag separation and opening.
Flexible films can stick together, which may cause double feeding or failure to open the bag correctly. For continuous production, the machine therefore needs an appropriate bag-separation mechanism and reliable sensors.
Sealing is another key factor.
Parameters such as temperature, pressure, dwell time, film thickness, and sealing width can affect the final package.
A good packaging machine should maintain stable sealing conditions throughout production rather than relying on frequent manual adjustment.
For manufacturers producing different bag sizes, flexible adjustment of bag width, product position, and sealing parameters can also reduce changeover time.

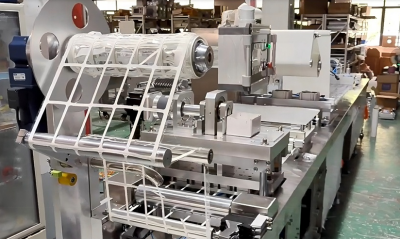

(SMT-PE Bag Packing Machine)
Blister packaging provides a more defined package shape than a simple bag and can help keep the product in a predetermined position.
Soft blister packaging uses flexible or relatively thin thermoformed materials and can be suitable for smaller medical devices, accessories, and products where some flexibility is desirable.
The main equipment considerations include forming accuracy, product positioning, material feeding, and sealing stability.
During thermoforming, heating needs to be controlled carefully. Insufficient heating can result in incomplete forming, while excessive heating may cause deformation or dimensional inconsistency.
Product positioning is also important. If a product moves before sealing, the finished package may look inconsistent and may affect product presentation or opening.
The sealing system should provide stable temperature, pressure, and dwell time across the sealing area.
For high-volume production, automatic feeding and inspection can further improve consistency and reduce manual intervention.

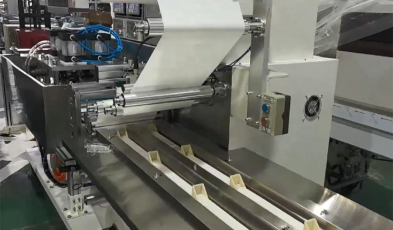

(SMT-4420 Soft Blister Packaging Machine)
Rigid blister packaging uses a structured plastic cavity to provide greater physical protection and maintain the position of the medical product.
It can be suitable for products that require additional protection during transportation or benefit from clear product presentation.
Compared with soft packaging, rigid blister packaging places greater demands on the forming and feeding systems.
The machine needs to control: Thermoforming accuracy, Heating temperature, Cavity dimensions, Product placement, Lid-film feeding, Sealing temperature and pressure
The formed cavity should match the product geometry without placing unnecessary stress on sensitive components.
Automatic product feeding also needs to be carefully designed, especially when the product has an irregular shape or multiple components.
As with other medical packaging formats, the final package should be evaluated not only by its appearance but also by the consistency and integrity of the sealing process.

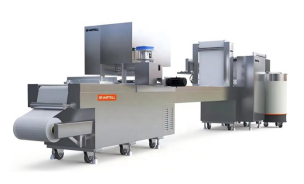

(SMT-4422 Rigid Blister Packaging Machine)
Medical gloves create a very different packaging challenge.
Unlike rigid medical products, gloves are thin, flexible, easily deformed, and prone to sticking together.
An automated glove packaging machine may need to perform multiple operations:
Glove Feeding → Separation → Orientation → Folding → Stacking → Bag Feeding → Insertion → Sealing
One of the most important requirements is stable gripping.
The machine needs to pick up and transfer the glove without tearing, slipping, incorrect folding, or accidentally taking multiple gloves at once.
Vacuum systems, mechanical grippers, sensors, and transfer mechanisms therefore need to be matched to the glove material and thickness.
Gloves can vary in:
·Size
·Material
·Thickness
·Folding method
·Quantity per bag
·Bag dimensions
This makes customization particularly important.
A flexible packaging system should allow appropriate adjustment of product size, bag dimensions, folding configuration, gripping parameters, and production speed.
For glove packaging, stable gripping, flexible customization, and reliable sealing can be just as important as achieving a high theoretical production speed.
（SMT-Glove Packaging Machine）
The packaging material itself is another important consideration.
Different materials have different characteristics in terms of flexibility, transparency, heat resistance, sealing behavior, and mechanical strength.
Common materials used in disposable medical packaging may include:
Medical-grade paper
Polymer films
PE-based films
Nonwoven materials
Thermoformable plastic films
Blister materials
The machine should be tested with the actual packaging material intended for production.
For example, a film that feeds smoothly on one machine may behave differently on another because of differences in thickness, surface characteristics, static electricity, or flexibility.
This is particularly important for high-speed packaging. As machine speed increases, small variations in film feeding or product positioning can become more noticeable.
Therefore, stable material feeding, accurate positioning, and consistent sealing should be considered together rather than separately.

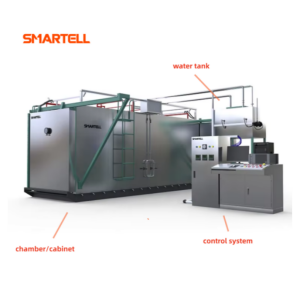

For many disposable medical products, ethylene oxide (EO) sterilization is commonly used, particularly for products that are sensitive to high temperatures and moisture.
Infusion sets, catheters, tubing-based devices, syringes, gloves, and other polymer-based products may be suitable for EO sterilization depending on their materials and design.
When EO sterilization is used, the packaging system needs to be compatible with the sterilization process and allow effective penetration of the sterilizing gas while maintaining the required sterile barrier.
Medical-grade paper, breathable nonwoven materials, and compatible polymer films are commonly considered in sterile packaging structures.
However, packaging material compatibility should not be determined by material name alone. The actual product, packaging structure, sealing process, EO cycle, and aeration conditions should be evaluated and validated together.
For packaging equipment manufacturers, this means that packaging design and sealing performance need to be considered with the intended sterilization process in mind.
As disposable medical production becomes increasingly automated, packaging is becoming an important part of the overall manufacturing system.
The goal is not simply to make packaging faster. A well-designed packaging solution should provide a balance between stable operation, reliable sealing, product protection, flexible customization, and production efficiency.
At SMARTELL TECHNOLOGY, packaging equipment can be developed according to the specific requirements of different disposable medical products. Depending on the product structure, packaging format, production capacity, and required automation level, solutions can be considered for infusion set coiling and packaging, PE bag packaging, and other customized medical packaging applications.
The most effective packaging solution is not necessarily the most complicated one. It is the one that matches the product, packaging material, production requirements, and future manufacturing plans.
Ultimately, successful medical packaging connects product handling, material feeding, positioning, sealing, inspection, and automation into one consistent production process.
For disposable medical manufacturers, selecting the right packaging method and equipment can help improve production consistency, reduce manual intervention, and create a more reliable manufacturing workflow.
