Medical-Grade Disposable 5ML Syringe Automatic Assembly Machine

The equipment is used to assemble the syringe barrel,syringe plunger,syringe gasket together.It has low power consumption,photoelectric monitoring,fast assembly speed,stable and reliable performance .It can automatic stop when short of material ,automatic inspection of unqualified products ,half-blocked needles and no silicone oil products,greatly improved the quality of products.

Capacity:	120-200 pcs/min
Availability:

Quantity:



Inquire

Model:
SMT-4420
Brand:
SMARTELL

Product Description

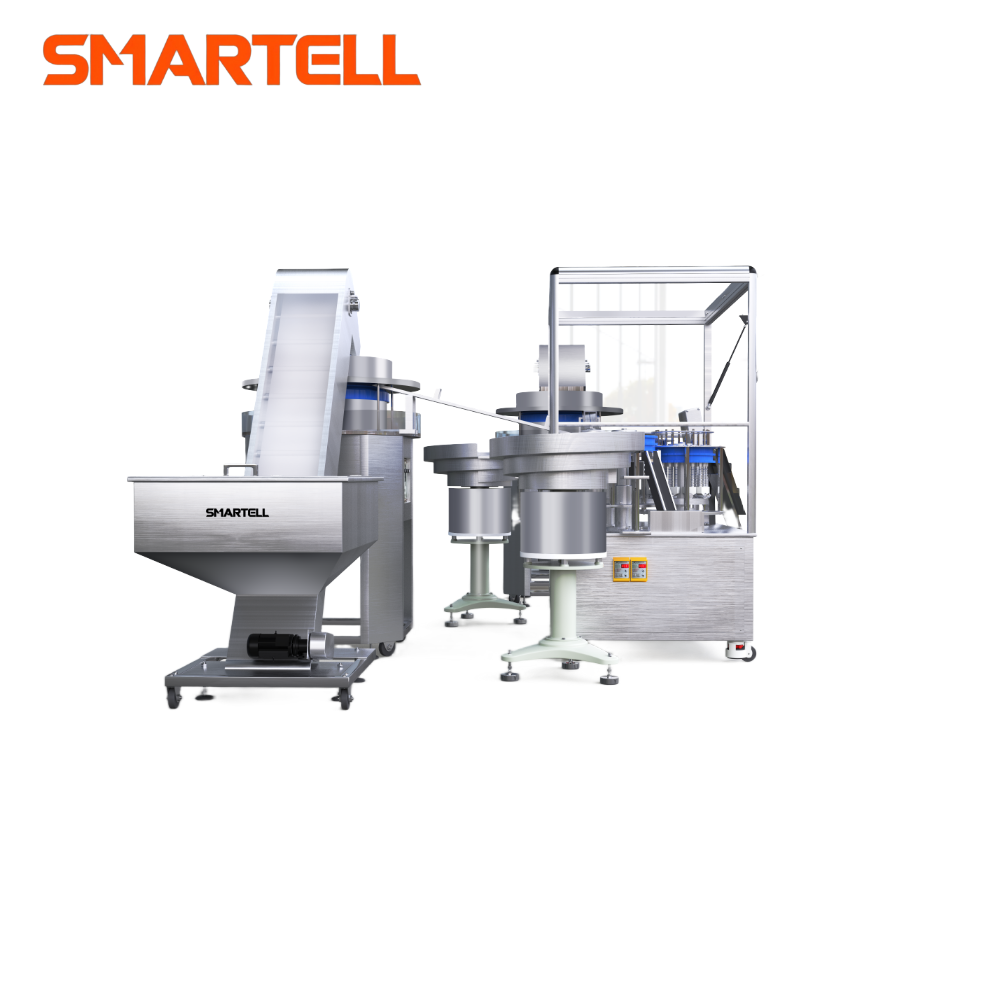

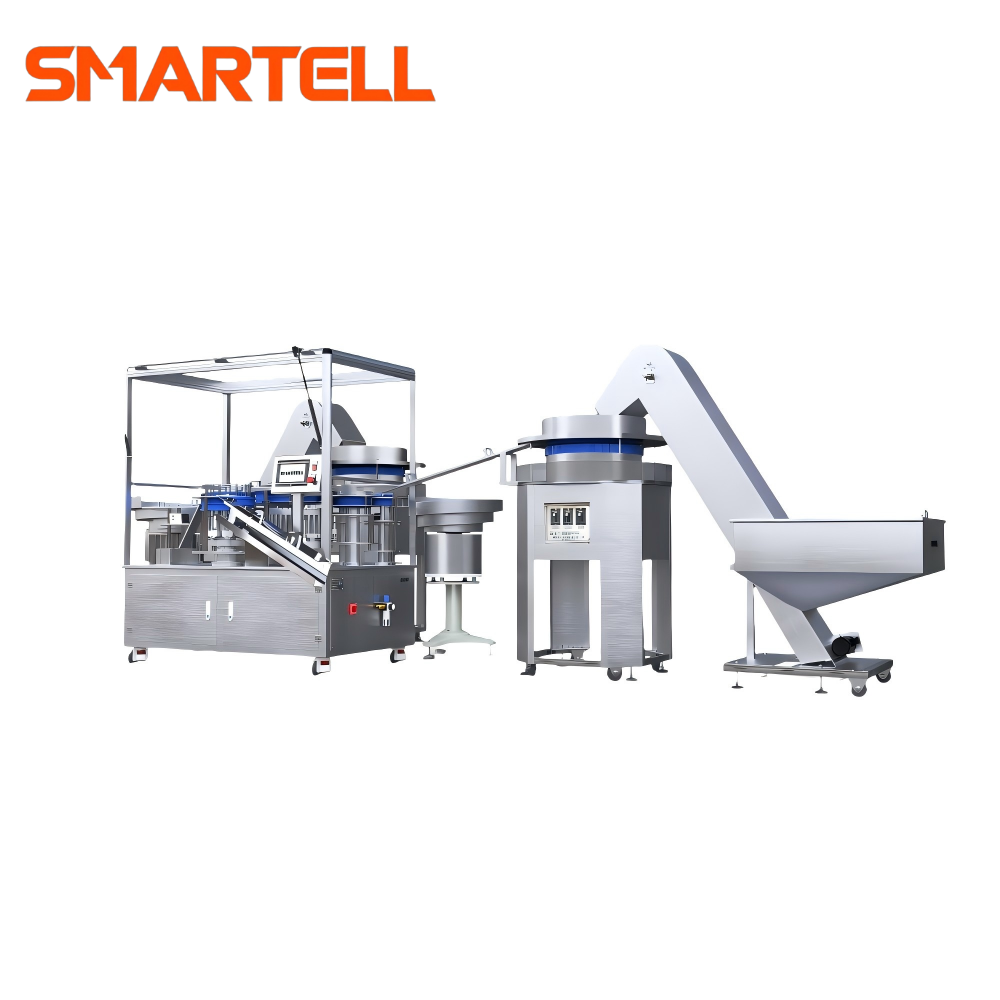

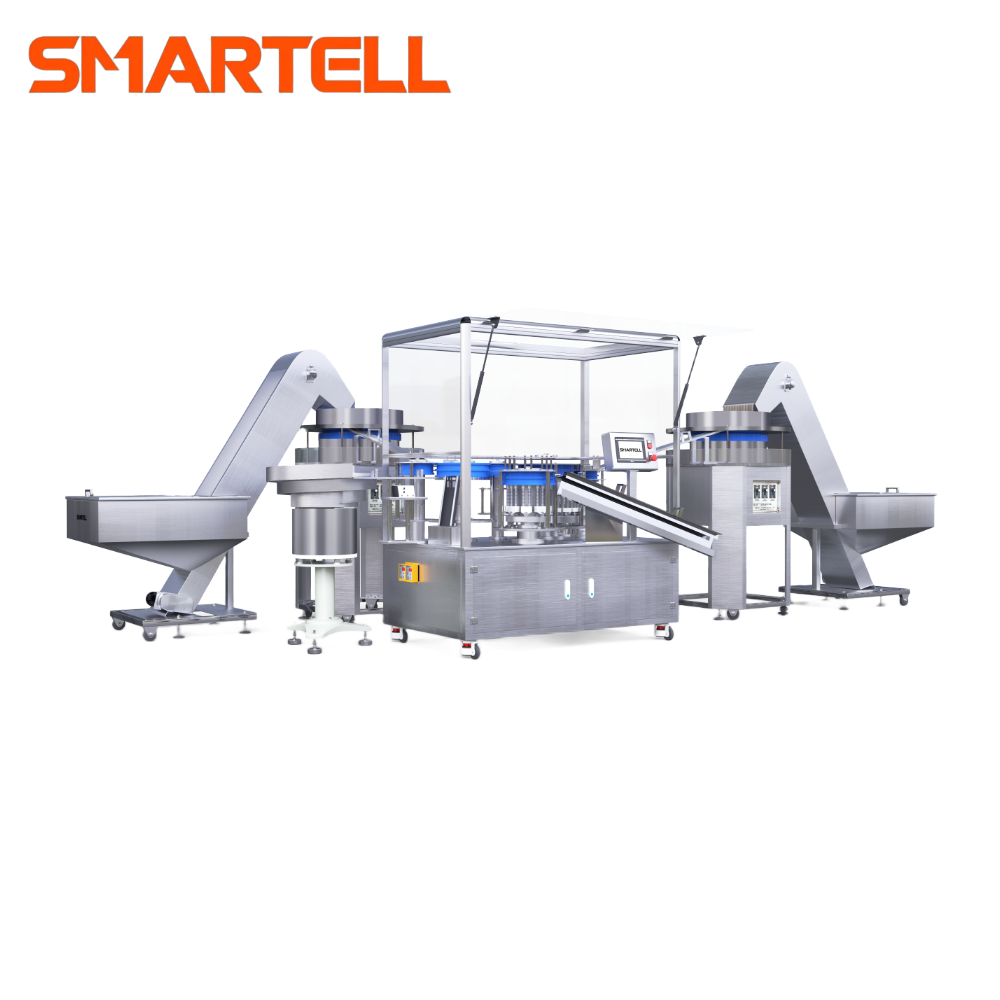

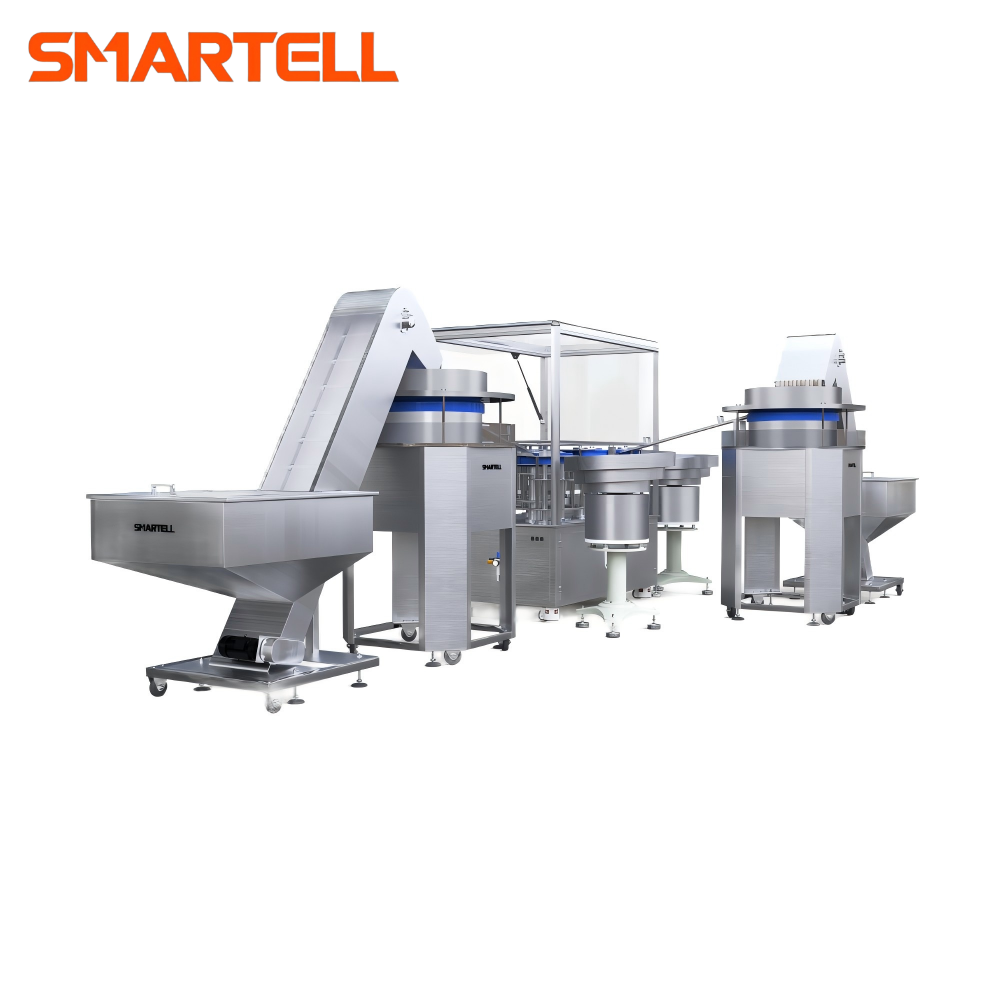

Disposable Syringe Automatic Assembly Machine

Assembly Parts: syringe barrel, syringe plunger, and syringe gasket.

Assemble Syringes Types: Luer lock, Luer slip, central-nozzle, and ex-central nozzle syringes with the needle or without the needle.

Machine Features:

--Controlled by touch screen: Automatically eliminate unqualified products and raw materials control.

--Stainless steel material, not easy to get rusty. Won't bring any pollution to syringe and cleaning workshop.

Advantages:

1. Equipped with a spray-oil device.

2. High efficient production.

3. Auto-stop when lack of material, and auto start when supply material.

4. Easy operate control system.

vaccine syringe assembly machine for 0.5ml 1ml barrel plunger gasket needle assemble

Production SPEC	Production Speed	Dimension	Weight	Power	Air flow
1ml	200pcs/min	4900x2700x2400mm	1500 kg	AC220V/3KW	0.3m3/min
2-5ml	200pcs/min
10ml	200pcs/min
20ml	180pcs/min
50ml	120pcs/min
