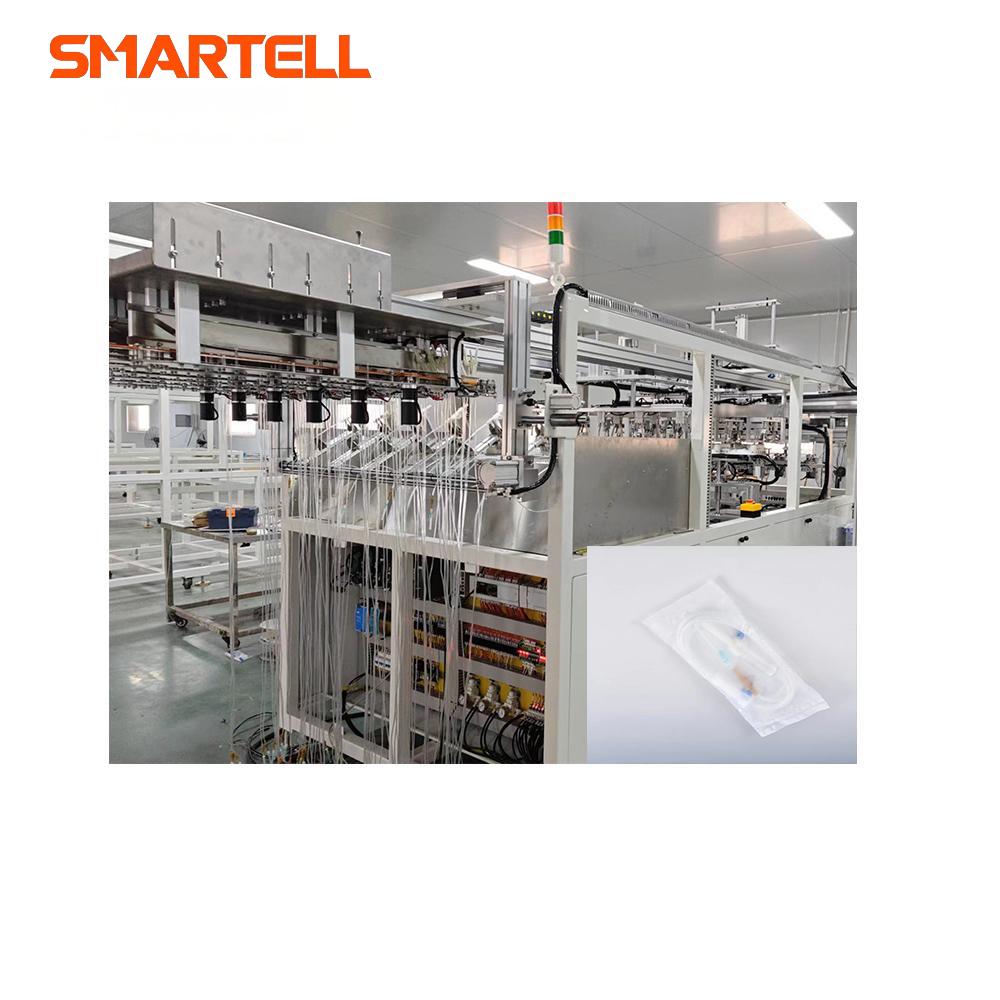

SMARTELL Infusion Set Automatic Winding and Packing Machine is a fully automated solution designed for the final processing of disposable infusion sets, IV sets.
It integrates automatic feeding, winding (coiling), arranging, and soft blister packaging into a single, continuous operation—greatly improving production efficiency while ensuring clean, hygienic, and uniform product presentation.

Built with medical-grade stainless steel and engineered according to GMP requirements, the machine is ideal for modern high-speed IV set production lines and 100,000-class clean workshops.

Machine Introduction

1. Hygienic & Safe Material Selection

All parts in direct contact with the product are made of high-quality stainless steel, preventing rust, contamination, and particles. This ensures a clean production environment suitable for medical devices.

2. Smart PLC Control System

Equipped with a PLC + full English touch-screen interface, the machine provides:

• Simplified and intuitive operation

• Real-time monitoring

• Easy parameter adjustment

• Automatic alarm and fault diagnostics

Even new operators can quickly learn to operate the machine safely and efficiently.

3. GMP-Compliant Design

The overall design—from the loading area to the packing section—meets the requirements of Medical Device GMP standards.
The machine features:

• Clean and compact structure

• Neat and stable output

• Smooth, quiet operation

• Easy maintenance

It is suitable for 100,000-class cleanroom production.

Key Functions

✔ Automatic Feeding

Infusion sets are fed into the system automatically from the upstream assembly line.

✔ Automatic Winding (Coiling)

The tubing is wound into a uniform, neat ring using servo-driven mechanisms, ensuring consistency and professional presentation.

✔ Component Positioning

The drip chamber, flow regulator, latex tube, and spike are automatically aligned in standardized positions for packing.

✔ Automatic Soft Blister Packing (Paper–Film / Film–Film)

The machine performs:

• Forming

• Feeding

• Heat sealing

• Cutting

• Counting

• Output

Ensuring fully sealed and contamination-free packaging.

✔ Quality Inspection

Sensors detect:

• Winding quality

• Tube length

• Missing parts

• Sealing defects

Unqualified pieces are rejected automatically.

Advantages of SMARTELL Automatic Winding & Packing Machine

• Significantly reduces labor and improves automation level

• Stable and uniform product appearance, suitable for high-end markets

• High production speed, ideal for mass manufacturing

• Minimal human contact, ensuring cleanliness and sterility

• Long lifespan, low maintenance cost
