This Smartell blister packing system delivers fast, clean, and reliable packaging for medical devices. Its flexible forming and sealing design allows full customization of blister molds. The machine maintains stable temperature and pressure control to guarantee consistent sealing quality. Optional automatic feeding equipment can be added for higher efficiency, making it ideal for large-scale continuous production.
Technical Parameter:
Name: Blister packaging machine
Max Packing Width: 300mm, 400mm, 460mm, 480mm, 540mm
Min Packing Width: 19mm
Max Packing Length: 60mm
Working Cycle: 4-6s
Voltage: 3x380V+N+E/50 HZ
| Quantity: | |
|---|---|
SMT-4420
SMARTELL

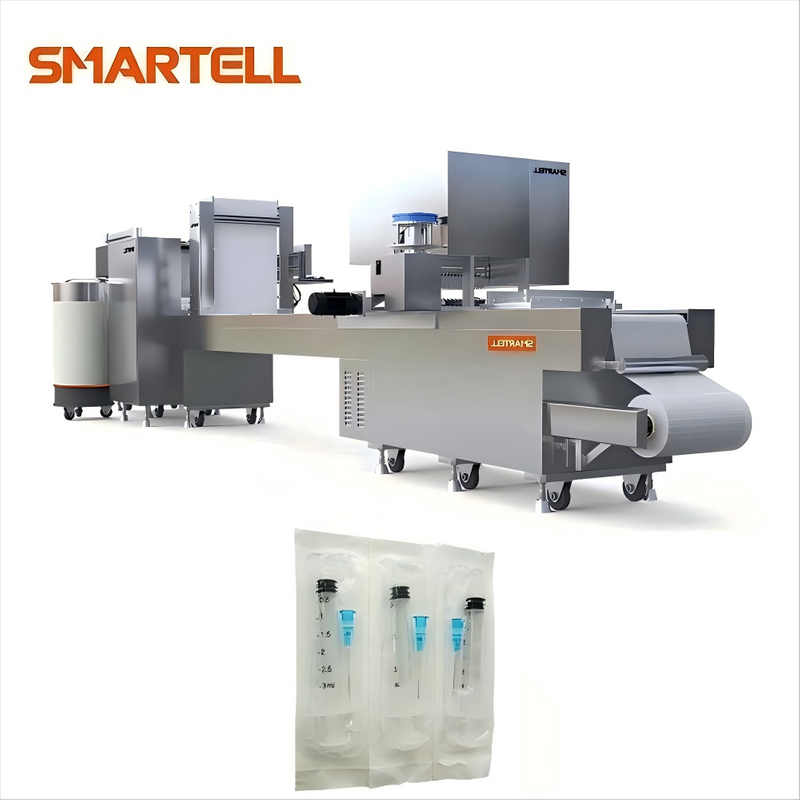

Smartell Automatic Paper–Plastic Blister Packing System for Medical Devices
Smartell’s automatic blister packaging system is engineered for medical manufacturers that require both flexibility and high performance. It supports customizable forming depth, sealing layout, and mold structure tailored to each product. The system ensures excellent sealing integrity with precise heat and pressure regulation, resulting in safe and professional packaging. The machine is compatible with a wide range of medical consumables, including syringes, filters, small instruments, and diagnostic components. For customers needing automation, Smartell provides optional feeding systems that minimize manual handling and increase throughput. With durable construction, stable performance, and easy maintenance, this blister packaging system delivers long-term value for medical factories of all sizes.
| Maximum Packing Width | 300mm, 400mm,460mm,480mm, 540mm | ||
| Minimum Packing Width | 19 mm | Maximum Packing Length | 60 mm |
| Working cycle | 4-6 s | Voltage | 3x380V+N+E/50HZ |
| Air pressure | 0.6-0.8Mpa | Air consumption | 700NL/MIN |
| Power | 10 kw | Cooling Water | 80L/h (<25°) |
Smartell Automatic Paper–Plastic Blister Packing System for Medical Devices
Smartell’s automatic blister packaging system is engineered for medical manufacturers that require both flexibility and high performance. It supports customizable forming depth, sealing layout, and mold structure tailored to each product. The system ensures excellent sealing integrity with precise heat and pressure regulation, resulting in safe and professional packaging. The machine is compatible with a wide range of medical consumables, including syringes, filters, small instruments, and diagnostic components. For customers needing automation, Smartell provides optional feeding systems that minimize manual handling and increase throughput. With durable construction, stable performance, and easy maintenance, this blister packaging system delivers long-term value for medical factories of all sizes.
| Maximum Packing Width | 300mm, 400mm,460mm,480mm, 540mm | ||
| Minimum Packing Width | 19 mm | Maximum Packing Length | 60 mm |
| Working cycle | 4-6 s | Voltage | 3x380V+N+E/50HZ |
| Air pressure | 0.6-0.8Mpa | Air consumption | 700NL/MIN |
| Power | 10 kw | Cooling Water | 80L/h (<25°) |
