Under the trend of increasingly stringent requirements for "sterility, accuracy and production efficiency" in the medical device industry, blister packaging machines, with their breakthrough designs in shaping, heat sealing and inspection, provide strong support for the high-quality packaging of medical consumables such as syringes, promoting the upgrading of production efficiency in the industry.

Core Institution Innovation: Solving Packaging Pain Points from Multiple Dimensions

The core competitiveness of this device stems from the collaborative innovation of four key institutions, ensuring packaging quality throughout the entire process from shaping to cutting:

Molding mechanism: Uniform heating, shaping exquisite blister packaging

The vacuum forming mechanism of the equipment integrates the heating system, vacuum forming mold, lifting mechanism, screw displacement mechanism and vacuum system. It uses the top heating method to heat the film. This design ensures more uniform heating of the film, resulting in precise and smooth contours of the formed blister packaging, and a beautiful and glossy appearance. It creates a "protective shell" that fits perfectly and has no wrinkles for the syringe, preventing the blister packaging from deforming and affecting subsequent sealing and product quality.

Sealing mechanism: Airbag pressure equalization, achieving a tight seal

Sealing is a crucial step in ensuring the sterility of packaging. The sealing mechanism of the equipment is equipped with a heating system, sealing airbag, and sealing mold, etc. Among them, the sealing airbag can balance the pressure on the sealing surface, ensuring uniform force on the sealing area, significantly improving the sealing performance, effectively blocking the invasion of external microorganisms and particles, and building a "sterile barrier" for the syringe, meeting the strict hygiene standards of medical devices.

Color marking inspection system: Accurate identification, ensuring packaging consistency

The color marking inspection system is composed of color sensors, guide rails and clamping plates. It can accurately identify and locate the color marks on the packaging materials, strictly follow the preset requirements to complete the packaging process, ensuring that the size and position height of each batch of syringe blister packaging are consistent, avoiding material waste or packaging defects caused by positioning deviations, and improving production yield.

Cross-cutting mechanism: Rolling cutting process, combining efficiency and durability

The cross-cutting process adopts the rolling cutting mode. Compared with traditional cutting methods, rolling cutting results in smoother and straighter cutting edges, less paper debris, and a significant improvement in the durability of the cutting tools. It reduces the downtime for changing the cutting tools due to wear, helping to achieve "efficient continuous production" in the injection device packaging process.

Full-process linkage: Creating an intelligent production line

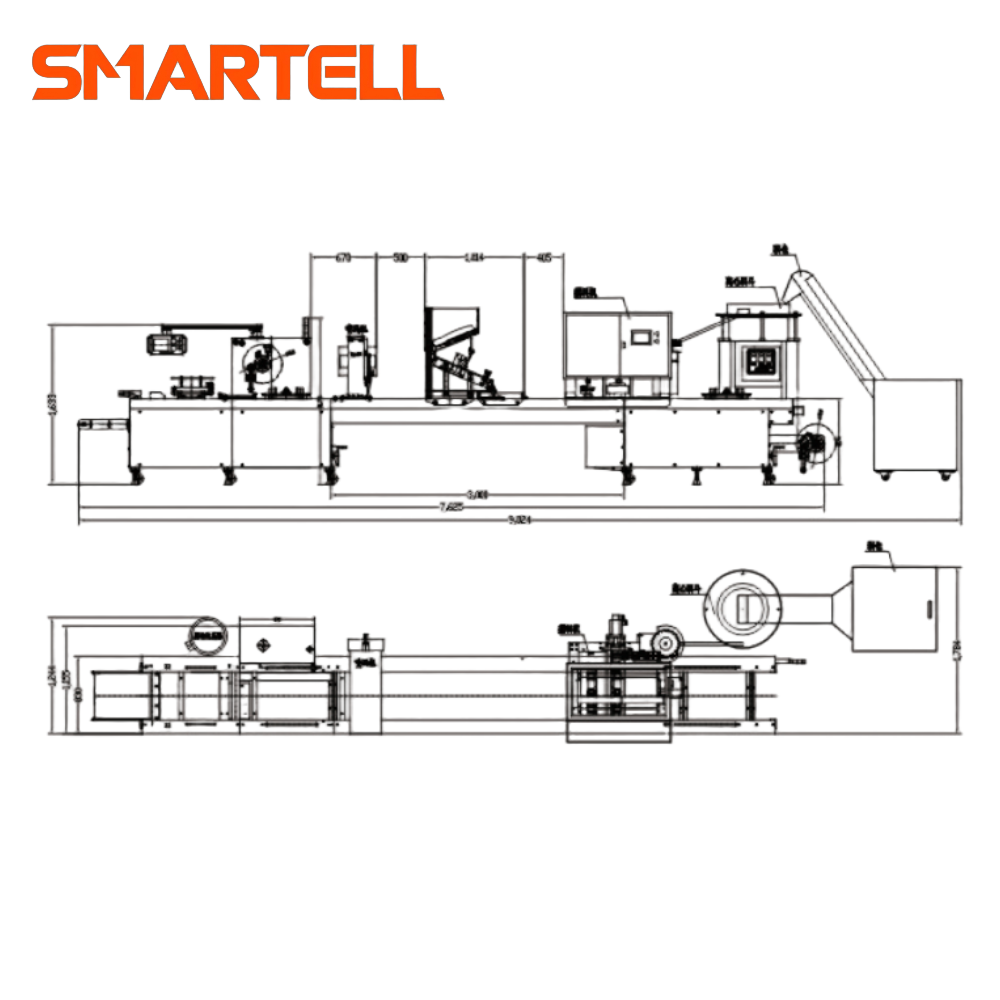

As can be seen from the equipment structure diagram, from paper unwinding, printing, to film unwinding, shaping, to heat sealing, longitudinal cutting, and transverse cutting, all processes achieve full-process automated linkage. The control panel acts as the "central hub" to precisely coordinate each component, allowing the syringe packaging to be completed seamlessly from raw material processing to final product cutting. This not only reduces the risk of contamination from human intervention but also significantly improves production efficiency to a new level, meeting the packaging requirements for large-scale syringe production.

Industry Value: Strengthening the Defense Line of Medical Device Packaging

As injectors are classified as Class III medical devices that directly come into contact with the human body, the aseptic and precise nature of their packaging is directly related to the clinical safety of use. The launch of this blister packaging equipment not only fills the technical application gap of high-end packaging equipment in the industry, but also with the combined advantages of "efficient production + precise control + aseptic guarantee", helps medical device enterprises improve product quality and market competitiveness, adds another "protective net" for patient safe medication, and promotes the advancement of China's medical device packaging technology towards a more intelligent and reliable direction.

In the future, with technological iteration, this equipment is expected to expand its application in more medical consumable packaging fields, continuously empowering the upgrading of the medical device industry chain.
