For modern medical needles, product quality extends far beyond dimensional accuracy and visual appearance. The force required to penetrate tissue, the friction experienced during insertion and withdrawal, and the consistency of these characteristics between batches all contribute to device performance and user experience.
This is particularly important for insulin injection needles, hypodermic needles and needles used in conventional syringe systems. As needle diameters become smaller and product designs more sophisticated, manufacturers must pay closer attention to the interaction between surface lubrication, tip geometry and manufacturing precision.

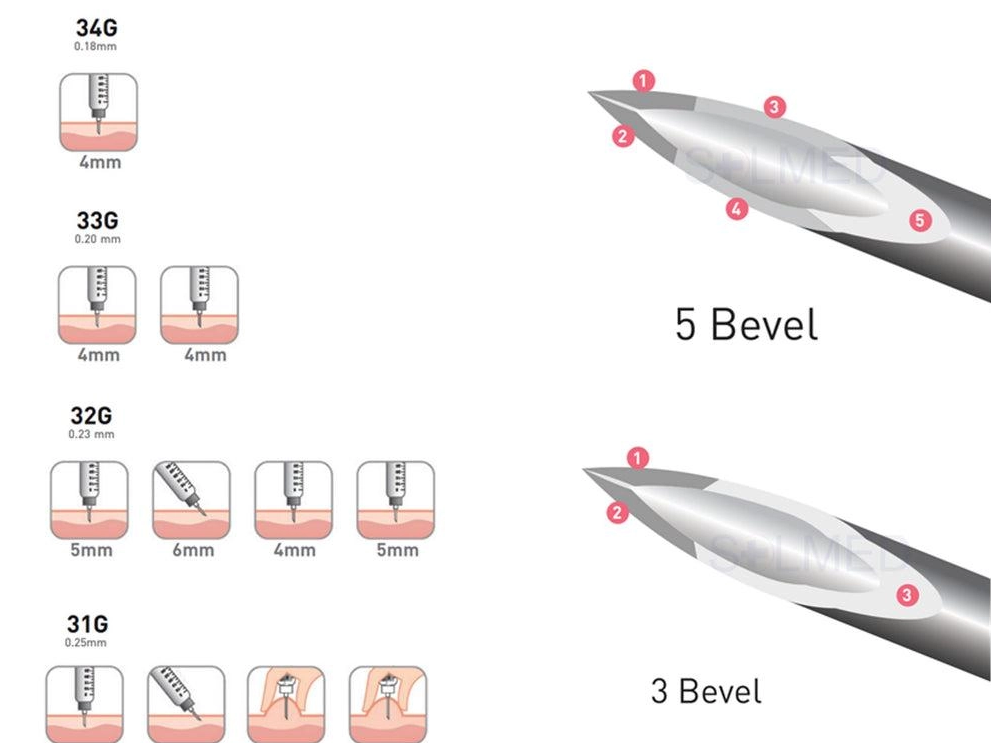

Research into insulin pen needles has demonstrated that bevel configuration can influence insertion and withdrawal forces. A 2023 study comparing three-bevel and five-bevel needle tips found statistically significant differences in sliding force, extraction force and energy during the insertion–extraction cycle. However, lower measured force does not automatically guarantee lower perceived pain or better clinical performance; these outcomes require appropriate validation. Source: PubMed.
For manufacturers planning new medical consumables production facilities, understanding these variables is also important when selecting assembly, inspection and packaging equipment. Although needle tubing and needle tips are produced through specialized component-manufacturing processes, their characteristics directly affect the quality requirements of downstream automated production lines.
Silicone lubrication is widely used to reduce friction between a medical needle and the tissue or test medium it contacts. A properly controlled coating can reduce sliding resistance during insertion and withdrawal, helping achieve more consistent mechanical performance.
However, siliconization is not simply a matter of applying more silicone. The coating formulation, application method, distribution and process stability all influence the final result.
Three factors deserve particular attention:
·
Coating quantity: Insufficient lubrication may increase friction, while excessive or poorly controlled application can create unwanted variability and raise concerns about silicone transfer or particle formation.
·
·
Coating uniformity: Uneven coverage may cause inconsistent friction along the needle shaft, resulting in variations in the measured force profile.
·
·
Process repeatability: Differences in application conditions, drying or curing requirements, where applicable, and handling can affect consistency between production batches.
·
The appropriate coating specification depends on the needle design, intended application and validated manufacturing process. Manufacturers should therefore evaluate lubrication through controlled testing rather than relying solely on nominal coating quantity.
For automated manufacturing projects, this creates an important equipment-planning consideration: downstream handling, assembly and inspection processes must preserve the required surface condition without introducing unnecessary contamination or mechanical damage.
The needle tip is the first region to interact with tissue during penetration. Its geometry determines how the material is contacted and cut, influencing the balance between axial penetration force, friction and lateral force.
Conventional bevel designs remain widely used, while multi-facet tips provide additional opportunities to modify cutting-edge geometry and contact conditions.
Key parameters include:
Primary bevel angle: Influences the effective cutting geometry and the distribution of forces during penetration.
Number and arrangement of bevel facets: Affect cutting-edge configuration and the contact between the tip and surrounding material.
Tip symmetry and edge intersection: Influence the consistency of penetration and the tendency of the needle to deflect.
Cutting-edge quality: Determines whether the tip cuts cleanly or causes excessive deformation before penetration.
The optimal geometry is application-specific. A design suitable for a fine insulin injection needle may not be directly transferable to a larger-bore hypodermic needle.
Recent research published in Scientific Reports in July 2026 examined multi-bevel angled flexible needles and demonstrated how bevel configuration can influence insertion force and deflection. Although that research concerns flexible needles rather than conventional disposable injection needles, it reinforces a broader engineering principle: tip geometry and force behavior are closely related. Source: Scientific Reports.
For manufacturers, the practical objective is not to pursue the smallest possible bevel angle or the greatest possible number of facets. It is to establish a geometry that delivers the required penetration performance while maintaining repeatability, structural integrity and compatibility with the intended application.
Even when two needles share the same nominal dimensions and bevel angle, their penetration behavior may differ because of variations in edge sharpness, surface defects and grinding quality.
A poorly formed cutting edge may deform tissue before cutting it. Burrs, microscopic irregularities and inconsistent edge intersections can also affect penetration resistance and produce variability between individual needles.
This makes tip finishing and inspection critical elements of needle-component manufacturing.
Relevant control points include:
Consistency of grinding and sharpening parameters.
Control of burrs and edge defects.
Repeatability of tip geometry across production batches.
Microscopic inspection of representative samples.
Correlation between visual inspection results and measured force performance.
Optical inspection systems and machine-vision technologies can help manufacturers identify dimensional or visual defects at production scale. However, image inspection alone cannot establish the actual penetration force of a needle. A robust quality-control strategy combines appropriate visual inspection with mechanical testing and validated acceptance criteria.
For production-line planners, this distinction matters: the inspection system must be selected according to the characteristics that need to be verified, rather than assuming that one inspection method can measure every aspect of needle quality.
Needle performance also depends on the quality of the underlying stainless-steel tubing.
Outer diameter, wall thickness, concentricity, straightness and surface condition influence the structural properties of the finished needle. Variations may affect bending resistance, dimensional compatibility and the repeatability of downstream assembly.
These factors are especially important for fine-gauge insulin needles, where the dimensional tolerances and structural requirements differ from those of larger-diameter hypodermic needles.
ISO 9626:2016 specifies requirements and test methods for rigid stainless-steel needle tubing used in the manufacture of hypodermic needles and other medical devices. The standard also distinguishes tubing requirements from additional performance testing that may be necessary after the tubing is incorporated into a finished device. Source: ISO.
This distinction highlights an important manufacturing principle: component conformity and finished-product performance are related, but they are not interchangeable.
For automated production lines, dimensional consistency can affect feeding stability, positioning accuracy, assembly repeatability and the reliability of downstream inspection. Equipment configuration should therefore be based on the actual component specifications, product range and required production capacity.
The final variable is not a single physical feature but the way manufacturing quality is measured and controlled.
Insertion-force testing can provide information about initial penetration, continued movement through a test medium and withdrawal. Evaluating the complete force–displacement curve may reveal differences that a single peak-force value cannot capture.
For meaningful comparisons, manufacturers should control the test conditions, including the test medium, insertion speed, angle, depth and measurement method. Sample size, average values and variation should also be considered.
A practical validation program may include:
Defining product-specific acceptance criteria.
Establishing a baseline for the selected needle design.
Evaluating coating and tip-geometry consistency.
Comparing force profiles across production batches.
Investigating deviations and confirming corrective actions.
Verifying that downstream assembly and packaging do not compromise the finished product.
The same principle applies to automated manufacturing: stable machine operation is necessary, but it is not sufficient on its own. Process capability must be demonstrated against the relevant product and quality requirements.
At Smartell, our focus is on manufacturing equipment and automated production solutions for medical consumables, including insulin syringe production lines, conventional syringe production lines and injection needle production lines.
We do not manufacture needle tubing ourselves. Nevertheless, understanding the relationship between component characteristics and finished-product quality is essential when designing equipment for medical consumables manufacturers.
A production line must be planned around more than nominal output. Product specifications, component dimensions, assembly requirements, inspection procedures, packaging formats and future capacity expansion all influence the final configuration.
For example, a project involving several syringe sizes may require different tooling, feeding arrangements or assembly configurations. Likewise, needle-related production equipment must be evaluated against the actual needle types, component specifications and required quality-control procedures.
Early coordination between the equipment supplier and the customer helps identify these requirements before installation, reducing the risk of avoidable modifications during commissioning.
SMT-3104 Hypodermic Needle Assembly Machine
Consistent needle insertion performance depends on the interaction of several factors: silicone coating, bevel geometry, cutting-edge quality, tubing precision and validated force testing.
For medical consumables manufacturers, controlling these variables is not only a component-engineering challenge. It is also part of a broader production strategy that connects material specifications, automated assembly, inspection and finished-product quality.
Smartell supports medical consumables manufacturers in planning and configuring production equipment around their product requirements, target capacity and factory development plans. By considering these requirements at the beginning of a project, manufacturers can build a more practical foundation for stable production and future expansion.
