What Is the Difference Between 2 Part and 3 Part Syringes?

Syringes are among the most widely used disposable medical devices in modern healthcare. They are commonly used for medication injection, vaccination, laboratory applications, and other fluid delivery procedures.

Although a syringe has a relatively simple appearance, its structure, materials, manufacturing process, and quality requirements are important to its overall performance. Based on their basic structure, disposable syringes are commonly classified as 2-piece syringes and 3-piece syringes.

Understanding the differences between these two designs is important for manufacturers when selecting materials, molds, injection molding equipment, assembly systems, printing equipment, packaging solutions, and other production technologies.

As a professional medical equipment manufacturer, SMARTELL provides production equipment and integrated solutions for syringe manufacturing, covering key processes such as injection molding, printing, assembly, and packaging.

1. What Is a 2-Piece Syringe?

A 2-piece syringe mainly consists of two components:

• Barrel

• Plunger

Unlike a 3-piece syringe, it does not have a separate rubber gasket. The plastic plunger directly interacts with the inner wall of the barrel to achieve the required sealing and sliding performance.

The main advantage of this design is its relatively simple structure. With fewer components, the assembly process can be simplified and component management can be more straightforward.

However, fewer components do not necessarily mean easier manufacturing.

Because the plunger and barrel directly determine the sealing and sliding performance of the syringe, dimensional accuracy and consistency are particularly important for 2-piece syringes.

Factors such as barrel inner diameter, plunger dimensions, roundness, concentricity, surface quality, material shrinkage, and dimensional tolerances can all influence the final performance of the syringe.

Therefore, precision injection molding is particularly important when manufacturing 2-piece syringes.

2. What Is a 3-Piece Syringe?

A 3-piece syringe consists of three main components:

• Barrel

• Plunger

• Rubber Gasket

The rubber gasket is installed at the end of the plunger and forms the sealing interface with the inner wall of the barrel.

The rubber gasket plays two important roles in a 3-piece syringe.

First, it provides reliable sealing between the plunger and barrel. Second, its elasticity and surface characteristics help the plunger move smoothly, stably, and consistently inside the barrel.

The gasket therefore affects not only sealing performance, but also the force required to operate the syringe and the overall smoothness of plunger movement.

Compared with a 2-piece syringe, a 3-piece syringe has an additional component and requires an additional assembly process. However, the separate gasket provides greater flexibility in sealing and plunger movement design.

The gasket itself also needs to meet appropriate requirements for material, hardness, elasticity, dimensions, and assembly quality

3. 2-Piece vs. 3-Piece Syringes

The most obvious difference between the two designs is the presence of a separate rubber gasket.

A 2-piece syringe has a simpler assembly structure, but its sealing and sliding performance depend heavily on the precision and consistency of the molded barrel and plunger.a

A 3-piece syringe requires more components and assembly steps, but the rubber gasket provides an additional sealing interface and helps achieve smooth and consistent plunger movement.

Neither design is universally better. The appropriate choice depends on the intended application, product specifications, target market, production capacity, and manufacturing strategy.

4. Materials Used in Syringe Manufacturing

The barrel and plunger of disposable syringes are commonly produced from medical-grade thermoplastic materials. Polypropylene (PP) is widely used because of its suitable mechanical properties, chemical resistance, processability, and cost-effectiveness.

For 3-piece syringes, the rubber gasket requires an appropriate elastomeric material according to the intended application.

• Material selection should consider:

• Chemical compatibility

• Mecha

• Dimensionanical propertiesl stability

• Surface characteristics

•  Elasticity and hardness

•  Biocompatibility requirements

• Applicable standards and regulations

The final material specification should be determined according to the specific syringe application and applicable requirements.

5. Syringe Manufacturing Process

A typical disposable syringe manufacturing process can be divided into five major stages:

Injection Molding → Printing → Syringe Assembly → Packaging → Sterilization

Step 1: Injection Molding

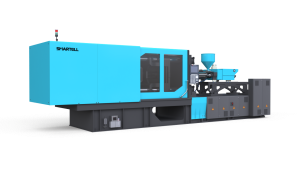

The barrel and plunger are produced using precision injection molding machines and dedicated molds.

For high-volume production, multi-cavity molds can be used to increase output and production efficiency. Mold design and injection molding parameters directly influence component dimensions and consistency.

Important factors include:

• Mold cavity configuration

• Injection molding machine capacity

• Injection pressure and speed

• Holding pressure

• Cooling time

• Mold temperature

• Product dimensions and tolerances

For 2-piece syringes, precision is particularly important because the barrel and plunger directly determine sealing and sliding performance.

Step 2: Printing

After injection molding, the syringe barrels proceed to the printing stage.

Graduation markings, product information, and other required markings can be printed on the syringe barrel. Clear, accurate, and consistent printing is essential, especially for graduation scales, because the markings directly affect dose reading and measurement during use.

The printing process should provide:

• Clear and easy-to-read graduation markings

• Accurate scale positioning

• Consistent printing quality

• Good adhesion to the barrel surface

• Durable and wear-resistant markings

For high-volume syringe production, automated printing systems can be integrated into the production line to achieve stable and consistent printing quality while maintaining high production efficiency.

The appropriate printing solution depends on the syringe material, barrel design, printing requirements, production speed, and final application.

Step 3: Syringe Assembly

After printing, the syringe components proceed to the assembly stage.

For a 2-piece syringe, the main assembly process involves inserting the plunger into the barrel.

For a 3-piece syringe, the rubber gasket is first installed onto the plunger, after which the plunger assembly is inserted into the barrel.

Depending on the product design, additional components such as needles, needle hubs, protective caps, or other accessories may also be assembled.

Automated assembly equipment can improve production efficiency, positioning accuracy, and product consistency, particularly for high-volume manufacturing.

Step 4: Packaging

After assembly, syringes are packaged according to product requirements and intended applications.

Common packaging solutions include:

• Blister packaging

• Pouch packaging

• Individual packaging

• Bulk packaging

For sterile disposable syringes, the packaging system should be compatible with the selected sterilization method and provide an appropriate barrier to maintain product sterility throughout the specified shelf life.

Step 5: Sterilization

For sterile disposable syringes, sterilization is generally performed after packaging, depending on the selected sterilization process and packaging materials.

Common sterilization methods may include:

• Ethylene oxide (ETO) sterilization

• Radiation sterilization

• Other validated sterilization methods suitable for the product

The appropriate sterilization method depends on the syringe materials, packaging design, product specifications, and applicable regulatory requirements.

6. Key Factors in Syringe Production

When planning a syringe manufacturing project, manufacturers should consider the complete production system rather than selecting individual machines separately.

Important factors include:

• Syringe size

• 2-piece or 3-piece structure

• Target production capacity

• Mold cavity number

• Injection molding equipment

• Assembly requirements

• Printing requirements

• Packaging method

• Sterilization method

• Automation level

• Future expansion requirements

For example, producing 1 mL, 2 mL, 5 mL, 10 mL, and 20 mL syringes may require different mold configurations and equipment capacities.

A well-designed production line should balance production capacity, investment cost, manufacturing flexibility, automation level, product quality, and future expansion.

7. SMARTELL Syringe Production Solutions

As a professional equipment manufacturer, SMARTELL focuses on providing production equipment and integrated manufacturing solutions for medical and laboratory consumables.

For syringe manufacturing projects, SMARTELL can support customers in evaluating suitable production configurations according to syringe type, size, target production capacity, and automation requirements.

Our solutions can cover key production stages including injection molding, printing, syringe assembly, packaging and sterilization, helping manufacturers establish efficient and reliable production systems.

Whether producing 2-piece or 3-piece syringes, precision molds, stable injection molding processes, reliable assembly equipment, and high-quality printing solutions are essential for achieving consistent production quality.

Conclusion

The main difference between 2-piece and 3-piece syringes is the presence of a separate rubber gasket.

A 2-piece syringe has fewer components and a simpler assembly structure, but its sealing and sliding performance depend heavily on the dimensional accuracy and consistency of the barrel and plunger.

A 3-piece syringe includes a rubber gasket that provides reliable sealing while also helping achieve smooth, stable, and consistent plunger movement. However, it requires additional components and assembly processes.

Neither design is universally better. The right choice depends on the product requirements, intended application, target market, production capacity, and overall manufacturing strategy.

For syringe manufacturers, successful production requires more than individual machines. Precision injection molding, clear and consistent printing, reliable assembly, suitable packaging, and validated sterilization processes must work together as part of a complete production system.

SMARTELL is committed to providing reliable equipment and customized production solutions for medical and laboratory consumable manufacturers worldwide.
