When discussing syringe manufacturing projects, one of the most common questions is:
“How many syringes per hour can the machine produce?”
It is an important question, but it is not the only one.
Many manufacturers assume that selecting the fastest machine will automatically deliver the highest production output. In reality, syringe production capacity depends on much more than the speed shown in an equipment specification sheet.
A successful syringe manufacturing project requires a balanced production system in which every process works together efficiently.
From injection molding and printing to assembly, packaging and sterilization, each stage influences the actual output of the factory.
This is why real production capacity is not simply about machine speed.
Every machine has a theoretical production speed.
For example, an assembly machine may be rated at:
10,000 syringes per hour
However, actual production conditions are different from theoretical calculations.
In daily operation, manufacturers also need to consider:
Equipment startup
Material loading
Product changeover
Machine adjustments
Maintenance
Quality inspection
Cleaning procedures
Unplanned downtime
As a result, the actual production output is often lower than the maximum speed shown in the machine specifications.
Therefore, production planning should always be based on realistic operating conditions rather than theoretical numbers alone.
A syringe is not produced by a single machine.
A complete syringe manufacturing process may include:
Injection Molding → Printing → Assembly → Packaging → Sterilization
Each process has its own production speed.
If one process cannot keep up with the others, it becomes the bottleneck for the entire production line.
For example:
Process | Capacity |
|---|---|
Injection Molding | 30,000 pcs/h |
Printing | 28,000 pcs/h |
Assembly | 22,000 pcs/h |
Packaging | 20,000 pcs/h |
Sterilization | 25,000 pcs/h |
Even though the injection molding section can produce 30,000 components per hour, the effective output of the complete production line is limited by the packaging process.
This means:
The fastest machine does not determine the capacity of the factory. The balance between processes does.
For syringe components such as barrels and plungers, injection molding is one of the key production stages.
Many people focus on injection molding machine size, but mold design is equally important.
Production capacity is influenced by:
Mold cavity number
Cycle time
Product design
Material characteristics
Cooling efficiency
Automation level
For example, increasing mold cavities can increase output, but it may also require:
Larger injection molding machines
Higher mold investment
More complex process control
Increased maintenance requirements
Therefore, higher output does not always come from faster machines.
Sometimes it comes from a better balance between mold design and machine configuration.
A common misunderstanding is that a production line has one fixed capacity.
In reality, production capacity depends heavily on the product.
Factors include:

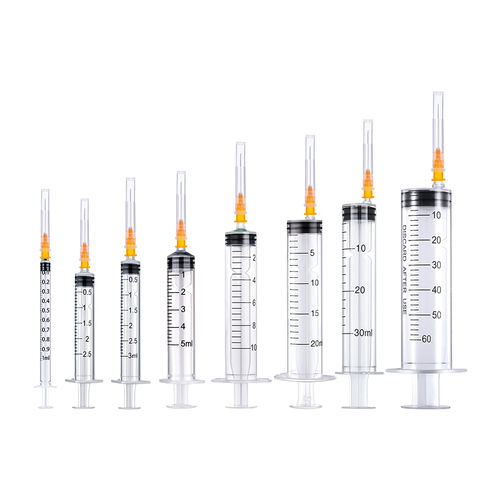

Syringe size (1ml, 3ml, 5ml, 10ml, 20ml, etc.)

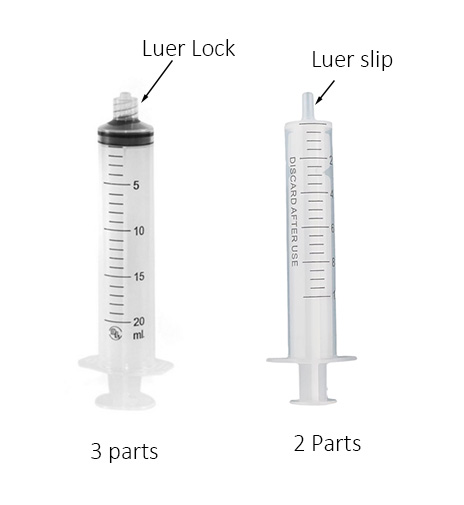

2-piece or 3-piece syringes
Luer Lock or Luer Slip
Printing requirements
Packaging type
Sterilization method
For example, a production line making only one syringe size may operate differently from a line producing several specifications.
Different products require different molds, machine settings, assembly tooling and packaging solutions.
Therefore, the same machine may produce different outputs depending on the product.
Packaging is often underestimated during production planning.
However, once syringes are assembled, they still need to be packaged according to market and regulatory requirements.
Packaging formats may include:
Blister packaging
Polybag packaging
Tray packaging
Cartoning
If assembly can produce 20,000 syringes per hour but packaging can process only 15,000 syringes per hour, the extra products will accumulate between processes.
This creates additional storage, handling and management requirements.
Packaging should therefore be considered from the beginning of production-line planning.
For sterile syringes, manufacturing does not end after packaging.

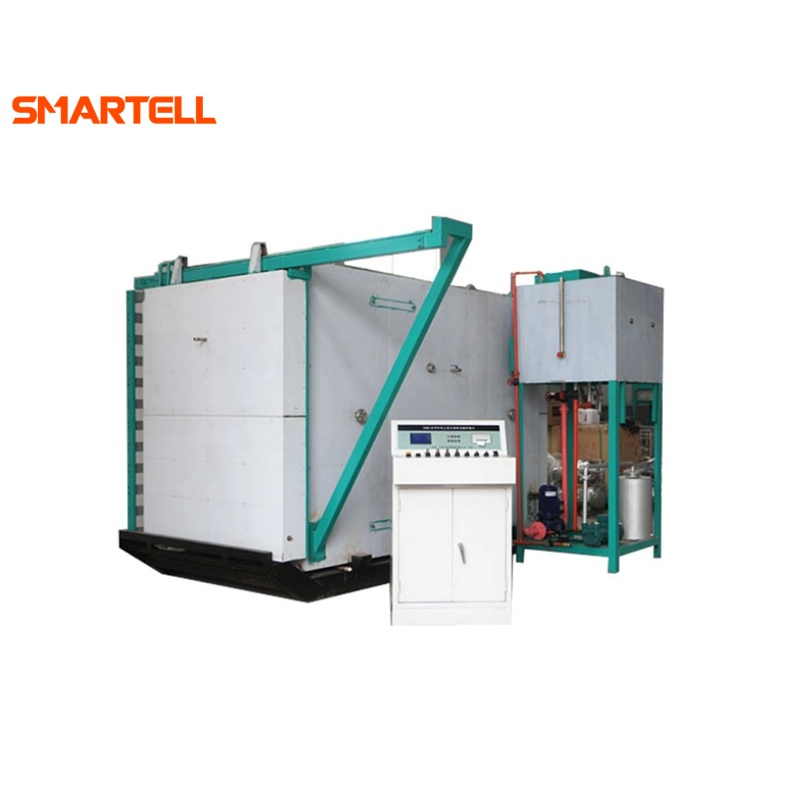

Sterilization is another important process that affects production output.
Depending on the project, manufacturers may use:
EO sterilization
Gamma sterilization
Other suitable sterilization methods
Sterilization planning may involve:
Batch size
Cycle time
Product loading quantity
Supporting facilities
Daily output requirements
Even if all upstream processes run efficiently, insufficient sterilization capacity can still reduce the actual production output of the factory.
Therefore, sterilization should be considered as part of the complete manufacturing system.
Production capacity is not only determined by machine speed.
Working hours also have a major impact.
For example:
A factory operating one 8-hour shift requires higher hourly output than a factory operating two or three shifts.
Longer working hours can reduce the required speed of individual machines.
However, longer operation also increases the importance of:
Equipment reliability
Preventive maintenance
Spare parts planning
Production management
This is why equipment configuration should always be considered together with the factory's production schedule.
Many manufacturers naturally look for the fastest available machine.
However, the fastest machine is not always the most suitable solution.
Sometimes manufacturers prefer:
Greater flexibility
Easier maintenance
Faster product changeover
Better redundancy
Future expansion possibilities
For example, multiple machines with moderate output may provide more flexibility than a single machine operating at maximum capacity.
The best solution depends on the customer's products, investment plan and future development strategy.
A successful syringe production project is not built around one machine.
It is built around the balance of the complete manufacturing process:
Injection Molding → Printing → Assembly → Packaging → Sterilization
Each process should support the others.
If one process is significantly faster or slower than the rest, the efficiency of the entire system may be affected.
Therefore, when evaluating production capacity, manufacturers should ask:
What products will be produced?
How many working hours are available?
Where is the bottleneck?
How much capacity margin is required?
What are the future expansion plans?
Only after answering these questions can a suitable equipment configuration be determined.
At SMARTELL, we believe that syringe production is more than selecting individual machines.
It is about creating a complete and balanced manufacturing system.
Depending on the project requirements, the production process may include injection molding, printing, assembly, packaging and sterilization, with each process properly matched to the target output.
Whether the goal is 50,000, 100,000 or 200,000 syringes per day, equipment selection should be based on actual products, production schedules and long-term development plans.
Because in syringe manufacturing:
Production capacity is not only about machine speed. It is about how well the entire system works together.
