SMT-5025
SMARTELL

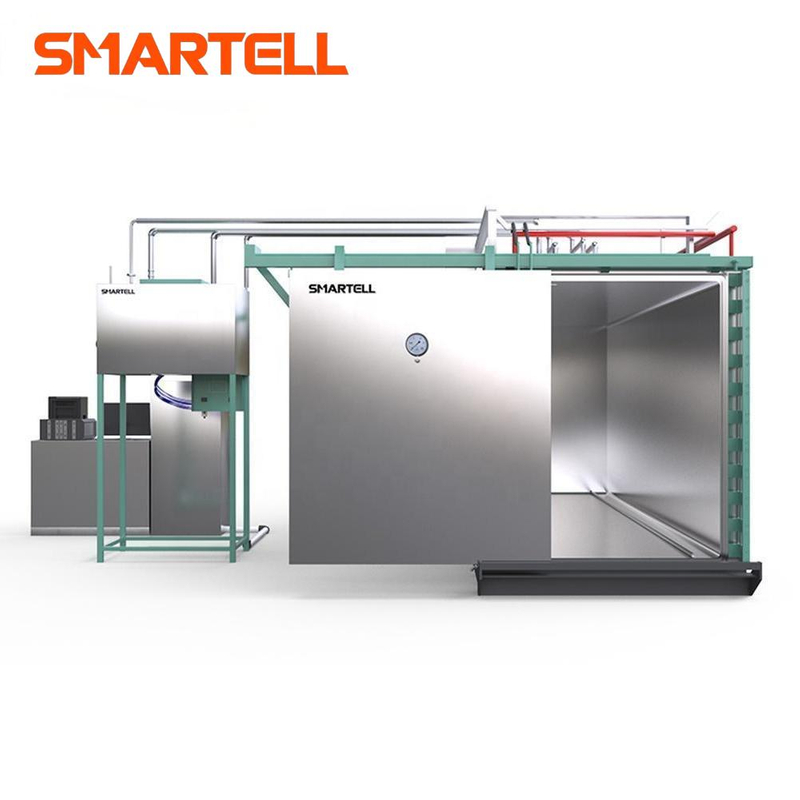

1. Door control and door lock： · The sterilizer has double slide doors which is controlled by software for open, close and lock。 · The doors would be locked and can’t be open when EO gas inside chamber；the doors can’t be closed under maintenance. · Function of power failure protection helps the door sealers keep pressure under the circumstance of power failure to avoid EO gas leakage.
2 .Heating and circulation system： · It is composed of water tank, cycle pump, pipes and valves。 · We would test the water jacket by water of 0.4Mpa pressure, make sure there is no shape change or water leakage.
3. Vacuum system： · It is composed of vacuum pump, pipes and valves. The vacuum system is designed to vacuum the chamber to set pressure in set time and to flush the EO gas inside chamber.
4. Humidifier system： · It is composed of automatic steam generator, pipes and valves. It is used to adjust the humidity inside chamber to make sure product is effectively sterilized. The humidifier system is automatically working during sterilize cycle.
5 .EO injection and Vaporizer： · Our unique vaporizer can accurately control the EO gas temperature when inject into chamber, make sure EO was fully gasified.
6 .Monitor and control system： · Our computer control system is designed and produced by ourselves, based on WIN7 OS, with friendly interface it is easy to use. The software has Chinese and English language.
