SMT-2002
SMARTELL
Brief Introduction
The Silk Printing Machine is an essential piece of equipment used in the medical syringe production line. It is mainly designed for printing clear and accurate scales, logos, and markings on the syringe barrel surface. This machine uses the silk screen printing technique, which provides strong ink adhesion, high clarity, and durable markings suitable for sterilization and long-term use.Printing speed for 10-120pcs range can be chosen freely.It mainly prints syringe for 1-50ml and bottle of round diameter 8-40mm,length for 50-130mm.
Technical Parameter
| Item | Specification |
|---|---|
| Printing Method | Silk Screen Printing |
| Printing Speed | 10-120 pcs/min |
| Barrel Size Range | 1 ml – 50 ml |
| Power Supply | AC 220V / 50Hz/3kw |
| Control System | PLC + Touch Screen |
| Air Flow | 0.02m³/min |
| Weight | 600kg |

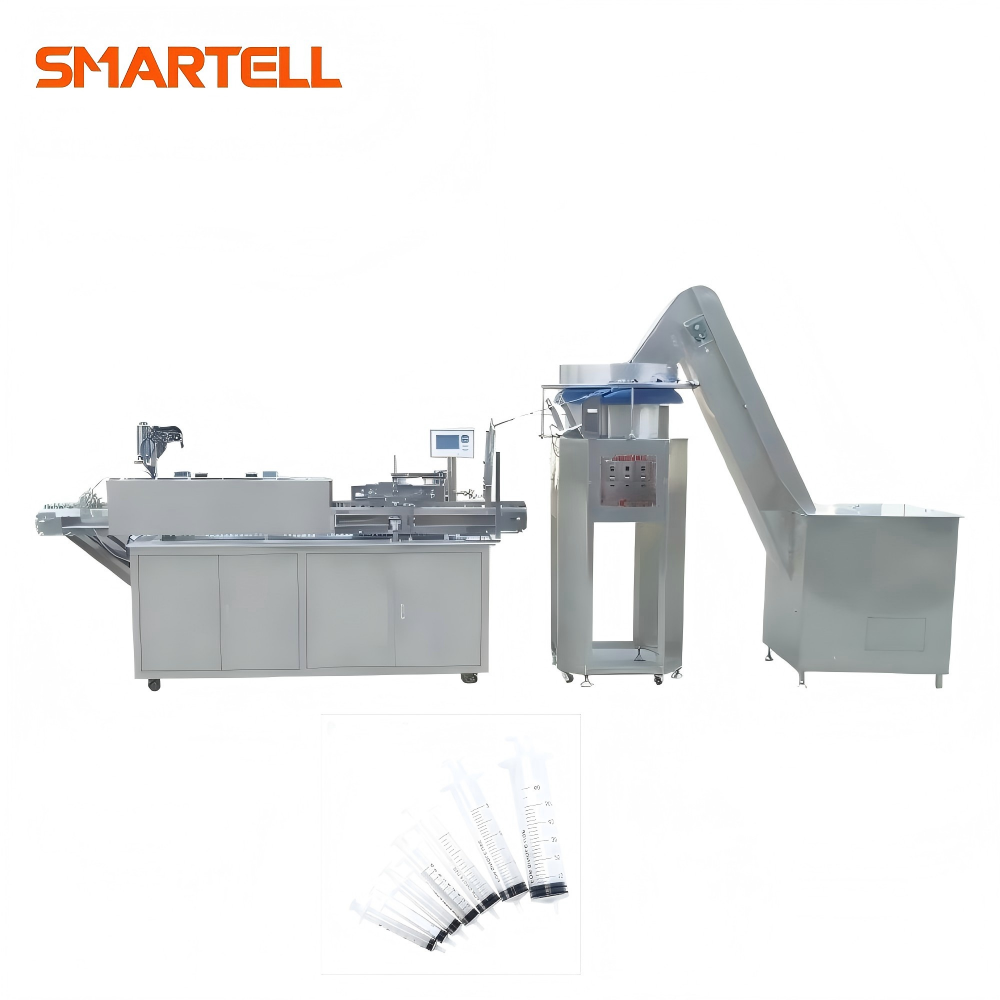

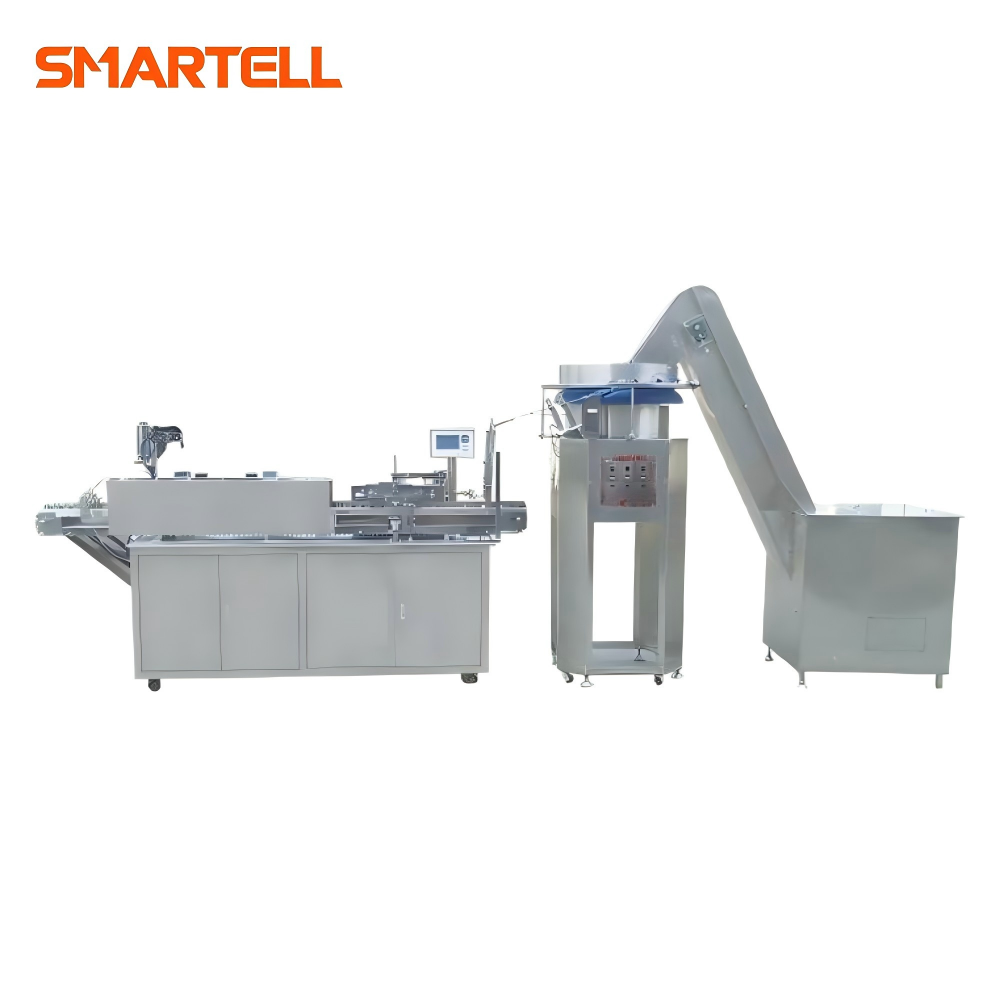

Machine Pictures
