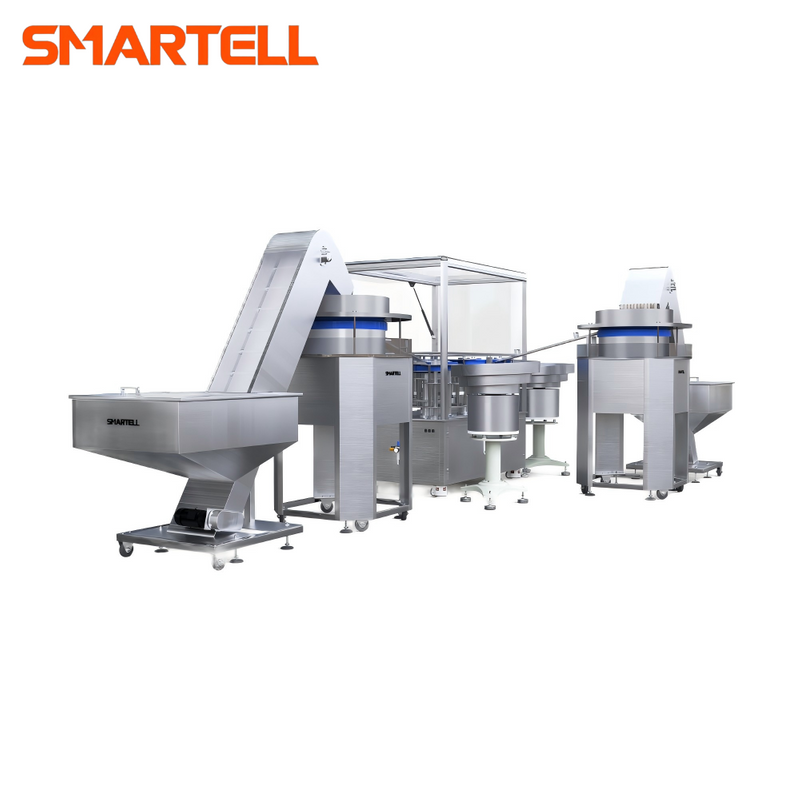

High Speed Disposable Medical Syringe Automation Assemble Machine

This type of equipment can produce various syringes. Including luer lock, luer slip, central-nozzle and ex-central nozzle syringes with needle or without needle. It is controlled by touch screen, can automatically eliminate unqualified products, can stop automatically for lack of raw materials, and begin with adequate raw materials, thus, improve the production efficiency and quality greatly.

Capacity:	150-350pcs/min
Availability:

Quantity:



Inquire

Model:
SMT-4420
Brand:
SMARTELL

Product Description

High-Speed Dispoasble Syringe Automatic Assembly Machine

Assembly Parts: syringe barrel, syringe plunger, and syringe gasket.

Assemble Syringes Types: Luer lock, Luer slip, central-nozzle, and ex-central nozzle syringes with the needle or without the needle.

Machine Features:

--Controlled by touch screen: Automatically eliminate unqualified products and raw materials control.

--Stainless steel material, not easy to get rusty. Won't bring any pollution to syringe and cleaning workshop.

Advantages:

1. Equipped with a spray-oil device.

2. High efficient production.

3. Auto-stop when lack of material, and auto start when supply material.

4. Easy operate control system.

vaccine syringe assembly machine for 0.5ml 1ml barrel plunger gasket needle assemble

Production SPEC	Production Speed	Dimension	Weight	Power	Air flow
1ml	350pcs/min	4900×2700×2400mm	1500kg	AC220V/3kw	0.3m3/min
2-5ml	380pcs/min
10ml	350pcs/min
20ml	200pcs/min
50ml	150pcs/min
