| Quantity: | |
|---|---|
SMT-3103
Smartell
Production capacity | About 10,000-11,000pcs per hour |
Operation of worker | 3-4 operators |
Gas consumption（60m³/h） | 70 cubic per hour |
Rated air pressure | ＞0.6 Mpa |
Power supply | 18 KW |
Occupied area | 7*12 meters |
| Weight | 6000Kg |
| Tooling strip | 200 pcs |
| Assembly specification range | 18-27G |
All parameters and dimensions are subject to change without prior notice.
Brief Introduction

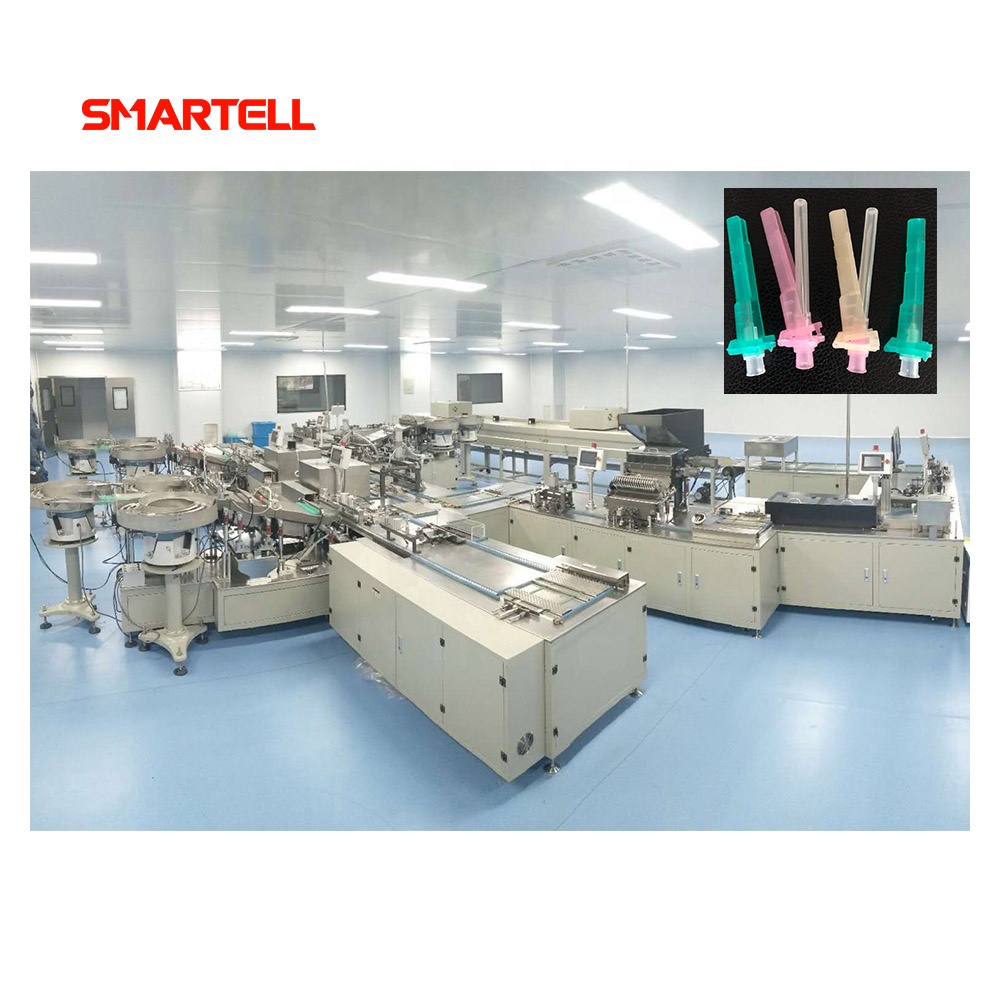

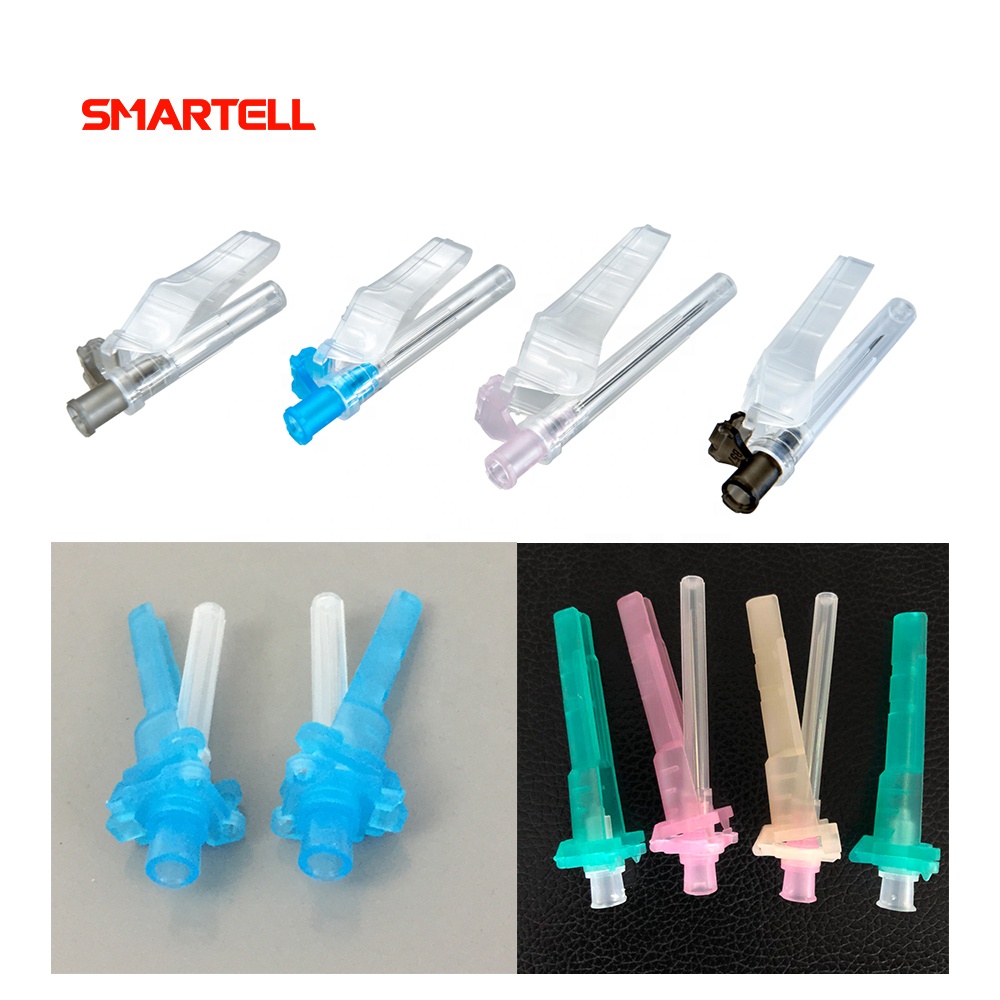

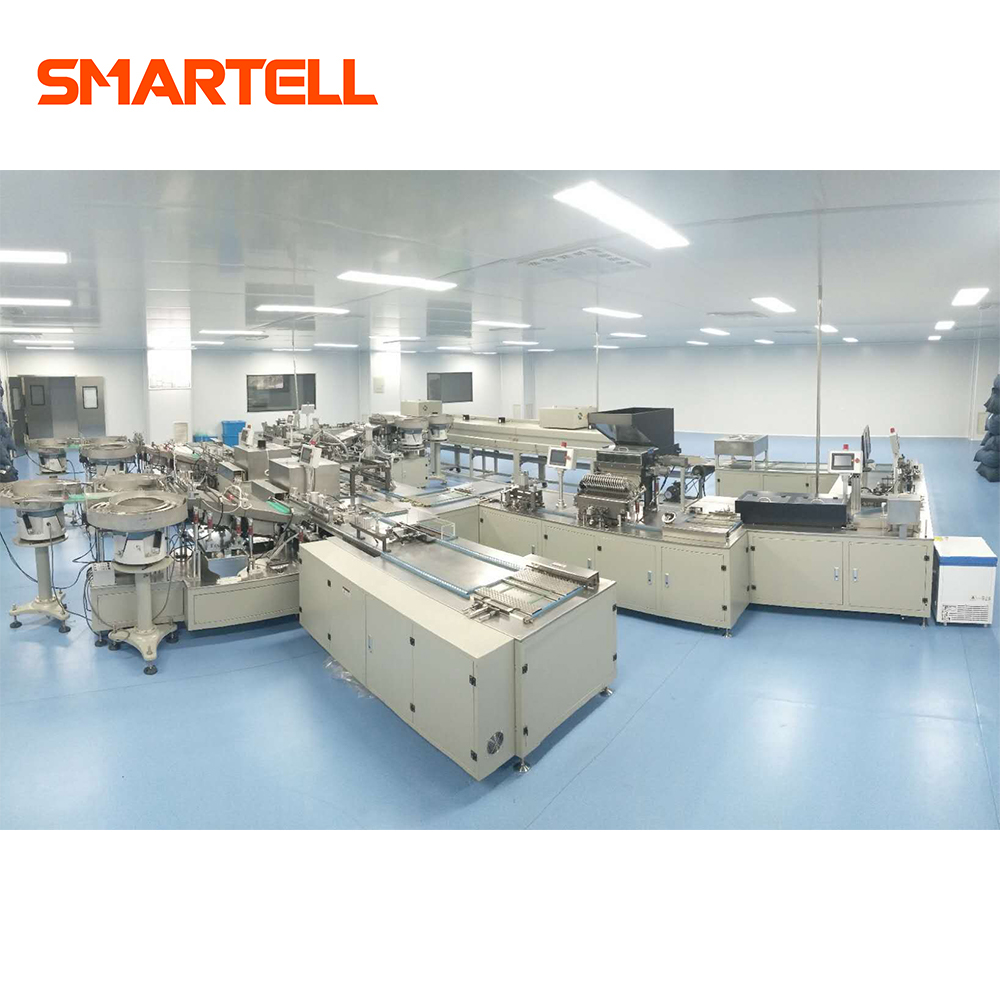

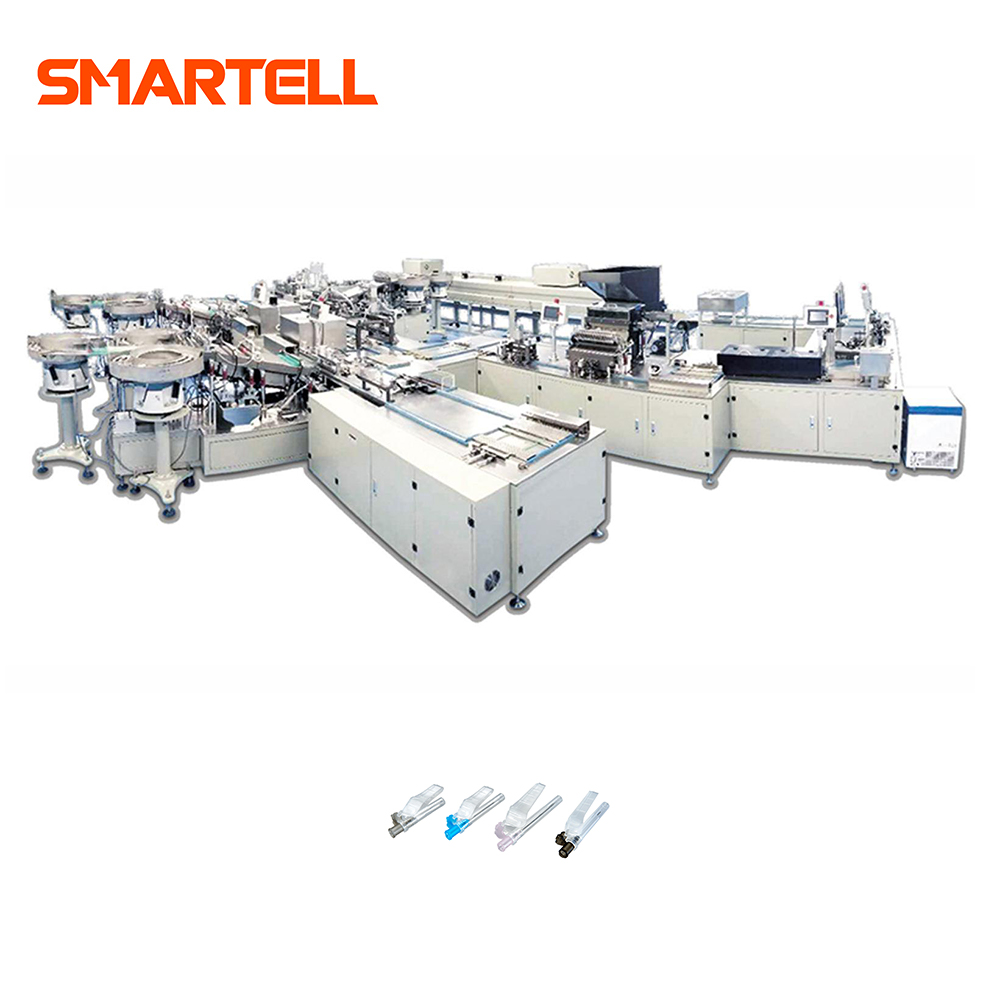

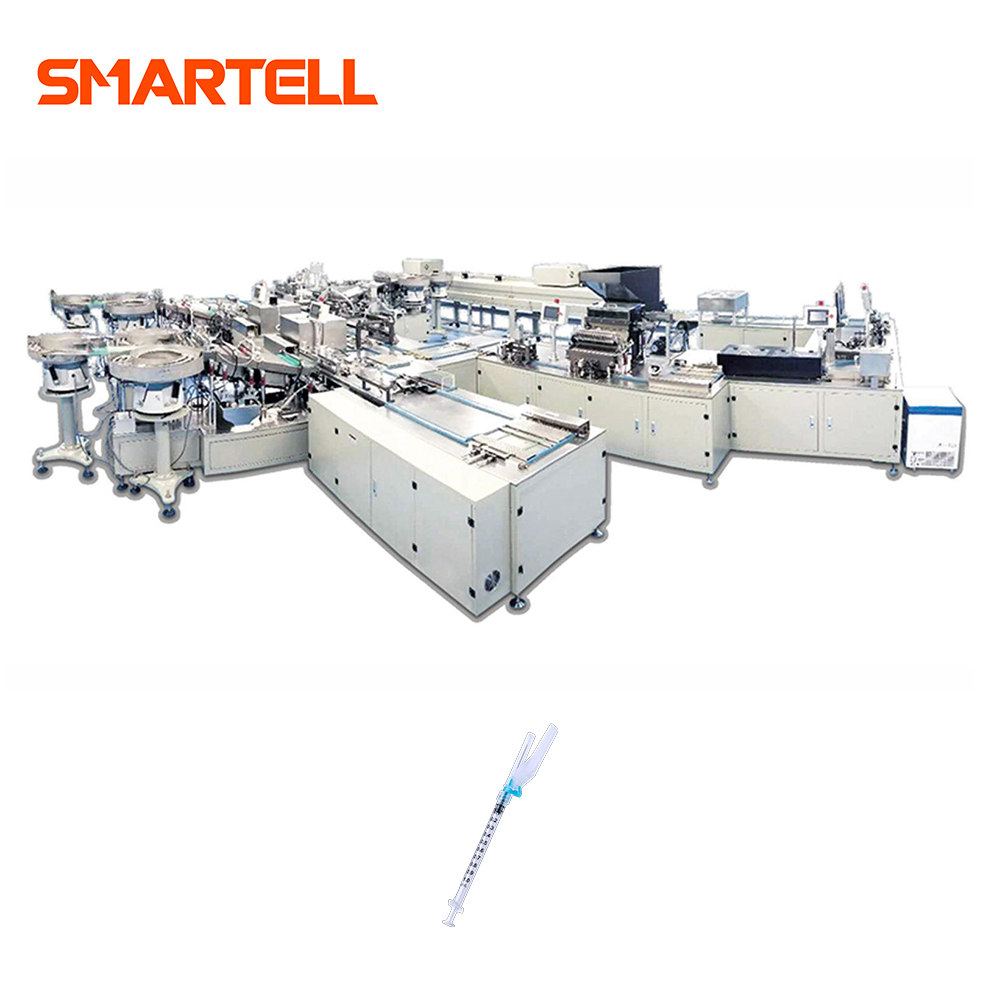

The Unibody Safety Needle Automatic Assembly Machine represents a significant technological advancement in the safety needle manufacturing process. The "unibody" design refers to the machine's ability to assemble the needle hub, safety needle cap, and stainless steel needle tubing into a unified structure. This is achieved with the integration of a regular needle hub with an integrated swing cover, an innovation that reduces the complexity of assembly and improves the overall strength and stability of the final product.
The key benefit of this unibody approach is its ability to eliminate the need for additional sub-assemblies, simplifying the overall production line and minimizing the risk of part misalignment or contamination during the process. It ensures a smoother, more reliable assembly of safety needles.
