High Precision Needle Assembly Machine for Hub Cap and Tube Automatic Assembly Line

Name: High Precision Needle Assembly Machine for Hub Cap and Tube Automatic Assembly Line
Brand: SMARTELL
Rating: 5.0 (93 reviews)

1. This automatic needle assembly machine runs at 70,000 pieces per hour.
2. It adopts CCD & optical fiber inspection to detect burrs, inverted and empty needles for stable quality.
3. Equipped with well-known brand components, it completes all assembly steps from feeding to discharging automatically.

Availability:

Quantity:



Inquire

Model:
SMT-3104
Brand:
SMARTELL

Product Description

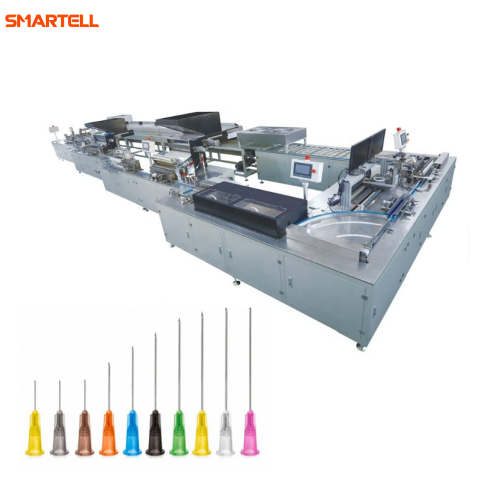

SMT-3104 Fully Automatic Hypodermic Needle Assembly Machine

Brief Introduction

This machine is used to assemble and adhere hub, cannula, and cap of disposable needle, including coating oil on the cannula. The device adopts the Keyence programming control system, and the panel is easy to operate with the touch screen. The servomotor coating mechanism is smooth and uniform. The detection system adopts the Keyence CCD image system from Japan, with high speed at 45 pcs in one second for detecting unqualified needle , and the pneumatic configuration adopts imported components. It is full automatic which can greatly reduce the labor intensity of operators.

Technical parameters

Capacity	70,000pcs per hour (for master)
Operation of worker	1 inspectors
Air pressure	≥0.60Mpa
Airflow	≥300ml/min
Power supply	380V 50Hz15Kw*3P+N+PE
	8Kw for Normal working time
	14Kw for working after half an hour
Dimension	7m(L)3.4m(W)1.6m(H)
Weight:	3000kg
