| Assembling Speed: | |
|---|---|
| Quantity: | |
SMT-3404
SMARTELL
Brief Introduction

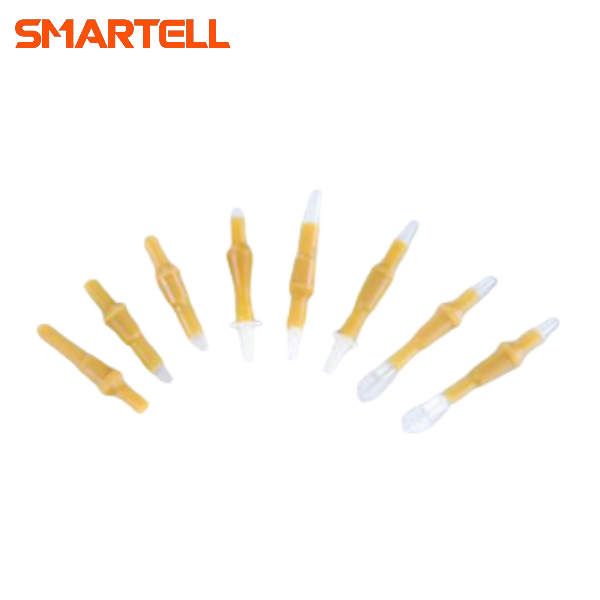

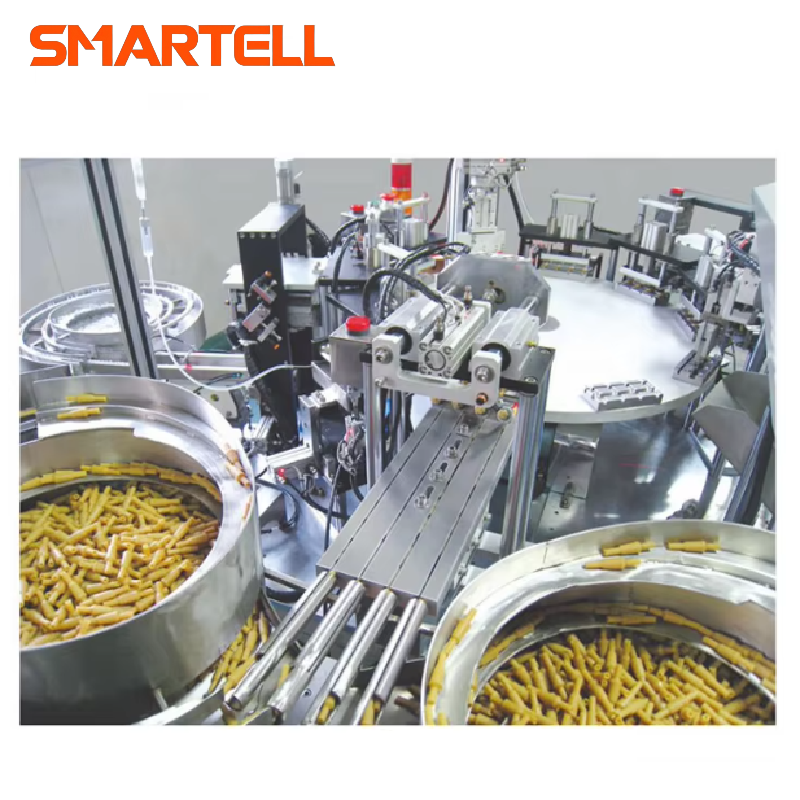

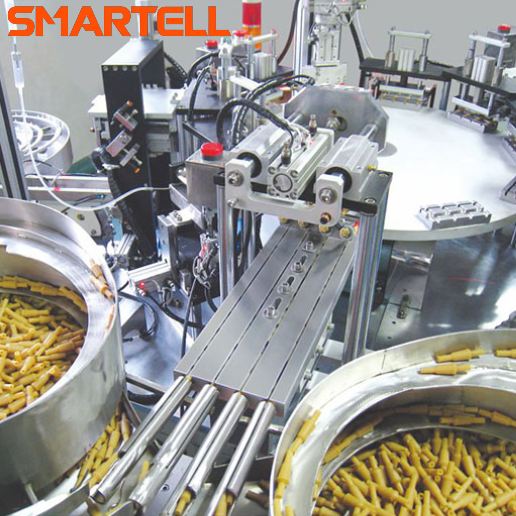

1. This equipment automatically assembles glues 3 - part, 4 - part latex tube.
2. This machine adopts Japanese OMRON PLC circuit control, Taiwan WEINVIEW touch screen operation, optical fiber photoelectric detection, automatic stop when there is no material, and open when there is material. 3. All pneumatic components use Japanese SMC cylinders and Mindman valves. 4. The parts in contact with the product are made of 304 stainless steel and aluminum alloy, and the other parts are treated with anti - corrosion.
Machine Parameter
| Assembling area | single | double |
| Assembling speed | 4500 - 5000 pcs/h | 4500 - 5000 pcs/h |
| Input | AC220V 50Hz | AC220V 50Hz |
| Machine size | 150×150×150 | 200×200×160 |
| Power | 1.8kw | 1.8kw |
| Weight | 650kg | 650kg |
| Air pressure | 0.5 - 0.65MPa | 0.5 - 0.65MPa |
