PVC Tube Extension Tube Making Machine Extruder

PVC Tube Extruding Machine

Product Description：

1.Application: mainly used in mass production of medical PVC pipe and other pipe extrusion, shaping and online cutting process.
2. Product specifications: mainly used in the production of medical tubes, specific according to the specifications specified by the demander.
3. Product requirements: uniform plasticization, smooth surface; The incision is neat and smooth.
4. Suitable for product specifications: the most suitable pipe diameter: Ø2-Ø10mm; The length of the cut pipe is adjustable within 2000mm.
5. Production efficiency: production line extrusion capacity ≤75Kg/ hour; Infusion catheter speed ≤140 m/min.
6. The installed capacity of the production line: 38KWh, the actual electricity consumption is about 20KW/h.
7. The gas consumption of the production line is: 0.03 cubic meters/minute.
8.The net size of the production line: (length) 12 meters X (width) 1.2 meters X (height) 1.8 meters.
9.Production line operation direction: equipment from right to left (customizable).

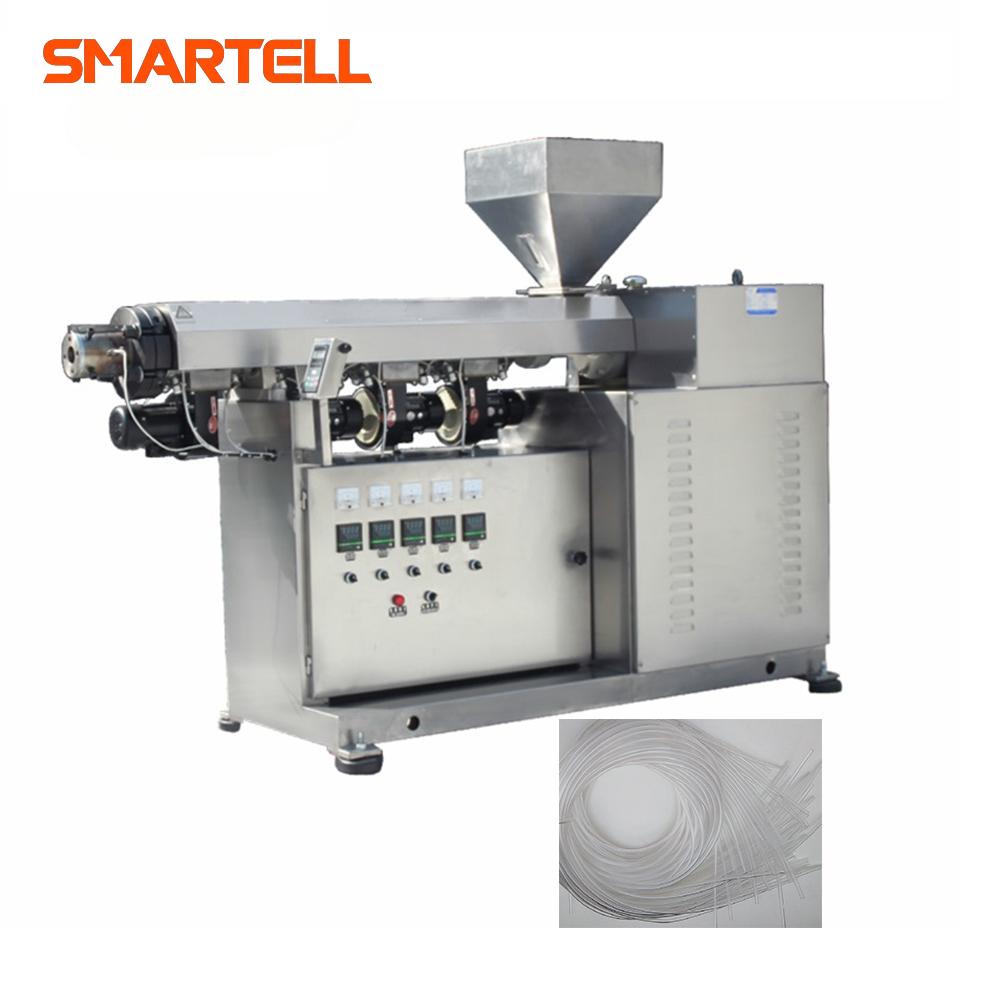

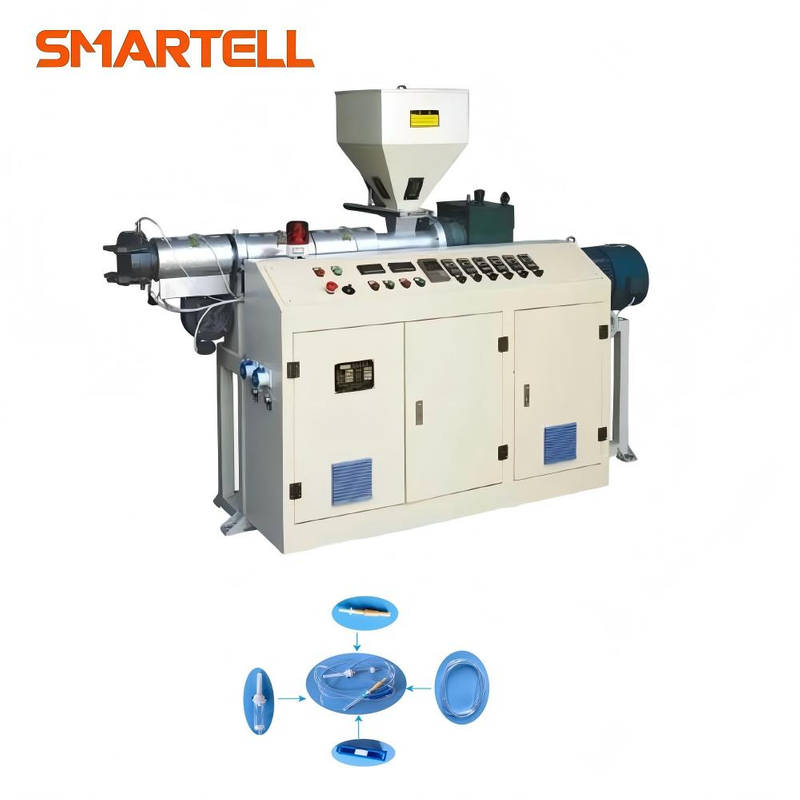

Detailed Photos：
