SMT-3103
Smartell
Production capacity | About 10,000-11,000pcs per hour |
Operation of worker | 3-4 operators |
Gas consumption（60m³/h） | 70 cubic per hour |
Rated air pressure | ＞0.6 Mpa |
Power supply | 18 KW |
Occupied area | 7*12 meters |
| Weight | 6000Kg |
| Tooling strip | 200 pcs |
| Assembly specification range | 18-27G |
All parameters and dimensions are subject to change without prior notice.
Brief Introduction

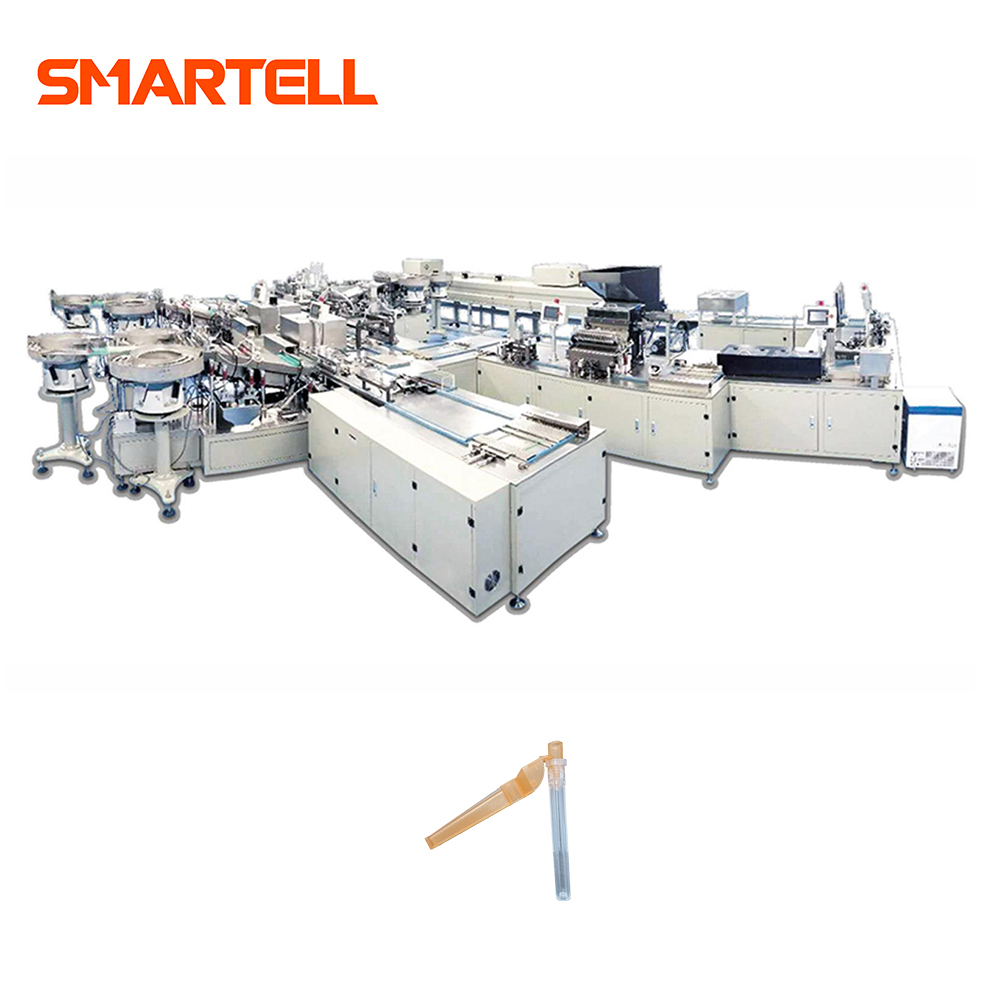

The Full Automatic Safety Needle Assembly Machine represents the pinnacle of modern manufacturing technology. As the name suggests, this machine fully automates the entire assembly process, requiring minimal human intervention.
The process begins with the automatic feeding of components such as the needle hub, cap, and stainless steel needle tubing into the system. The needle parts auto feeder ensures that each component is fed into the machine at the correct time and in the proper sequence. This eliminates any risk of manual assembly errors, such as incorrect part placement or part misfeeds, which can lead to defects in the finished needles.
Additionally, the system is capable of handling a wide range of needle sizes, typically in the 18G to 27G range. This flexibility ensures that manufacturers can easily adjust their production to meet varying market demands, whether it’s for pediatric, adult, or specialized use.
