SMT-5020 Sterilization Workshop Solution Explosion-proof Vacuum Pump Ethylene Oxide Sterilization Machine

The water tank is essential for maintaining the proper conditions inside the sterilization chamber. Ethylene oxide sterilization machines require a precise combination of gas and moisture to effectively sterilize items.
Availability:
Quantity:
  • SMT-5020

  • Smartell

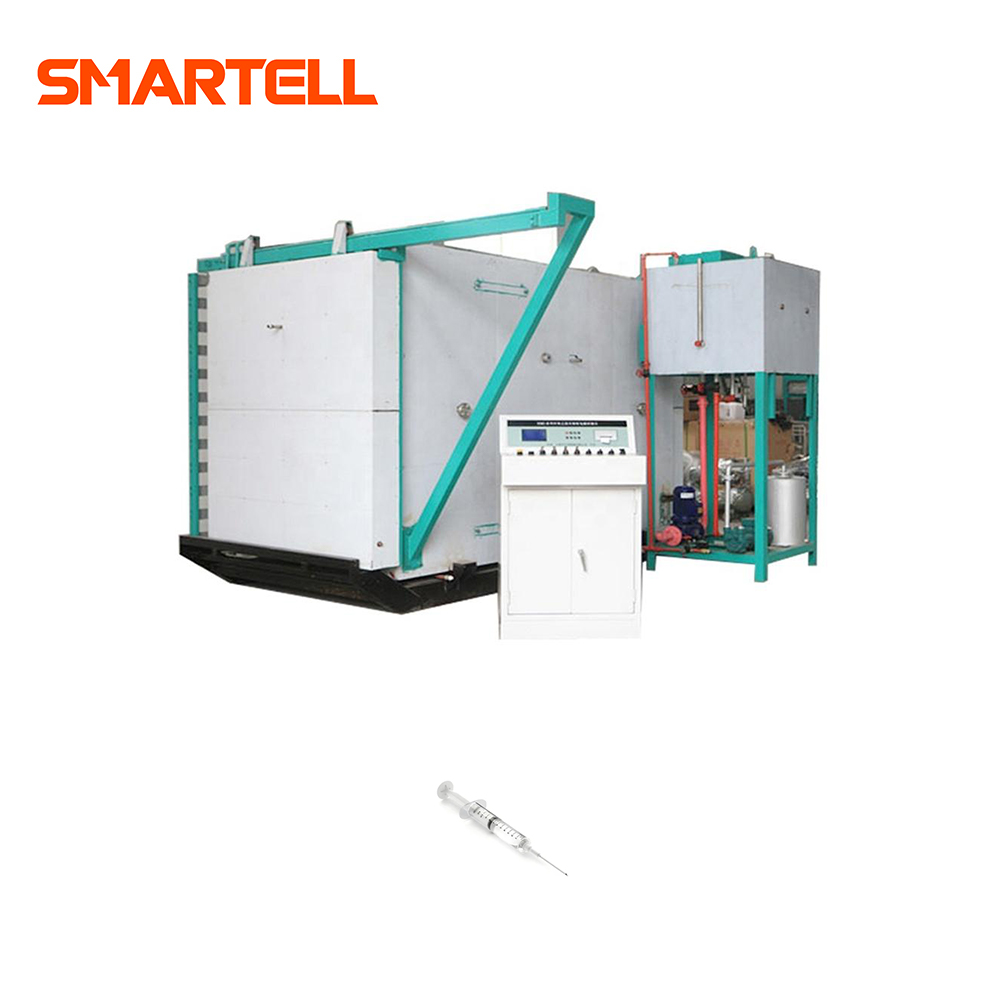

Ethylene Oxide Sterilization Machine

(Stainless steel coating sterilizer cabinet)


Specification

Structure combined Time control 1min~99h
Specification 1m3~35m3 Power Supply 380v/50HZ
Temperature control 0~100°C Power 3~5Kw
Maximum error of the temperature control <±3°C Electric Power 6~55Kw
Working pressure -0.09~0.08Mpa Working environment Temperature5~40°C
Humidity<80%RH
Working humidity 30%~60% RH


All parameters and dimensions are subject to change without prior notice.


43

384photobank(2)微信图片_2025-10-24_153427_355








Ethylene Oxide Sterilization Machine


production description


Water Tank


The water tank is essential for maintaining the proper conditions inside the sterilization chamber. Ethylene oxide sterilization machines require a precise combination of gas and moisture to effectively sterilize items.


Purpose: The water tank helps to control humidity levels during the sterilization process. It ensures that the ethylene oxide gas can penetrate the packaging and materials of medical products effectively.


Role in Process: The water tank provides moisture during the sterilization cycle, which helps prevent damage to heat-sensitive items while enhancing the gas’s penetration ability. Proper humidity also facilitates the breakdown of microorganisms at the molecular level, leading to effective sterilization.




41



新美特-详情页_03

注射器产线流程图2025.3.10

新美特-详情页_06

新美特-详情页_07
