Automatic Infusion Set Six-part Drip Chamber Assembly Machine

A six-part drip chamber assembly machine is an automatic machine specially designed for assembling six-component drip chambers used in infusion sets. It ensures high assembly accuracy, stable quality, and efficient mass production in accordance with medical manufacturing standards.

Availability:

Quantity:



Inquire

Model:
SMT-3403
Brand:
SMARTELL

Product Description

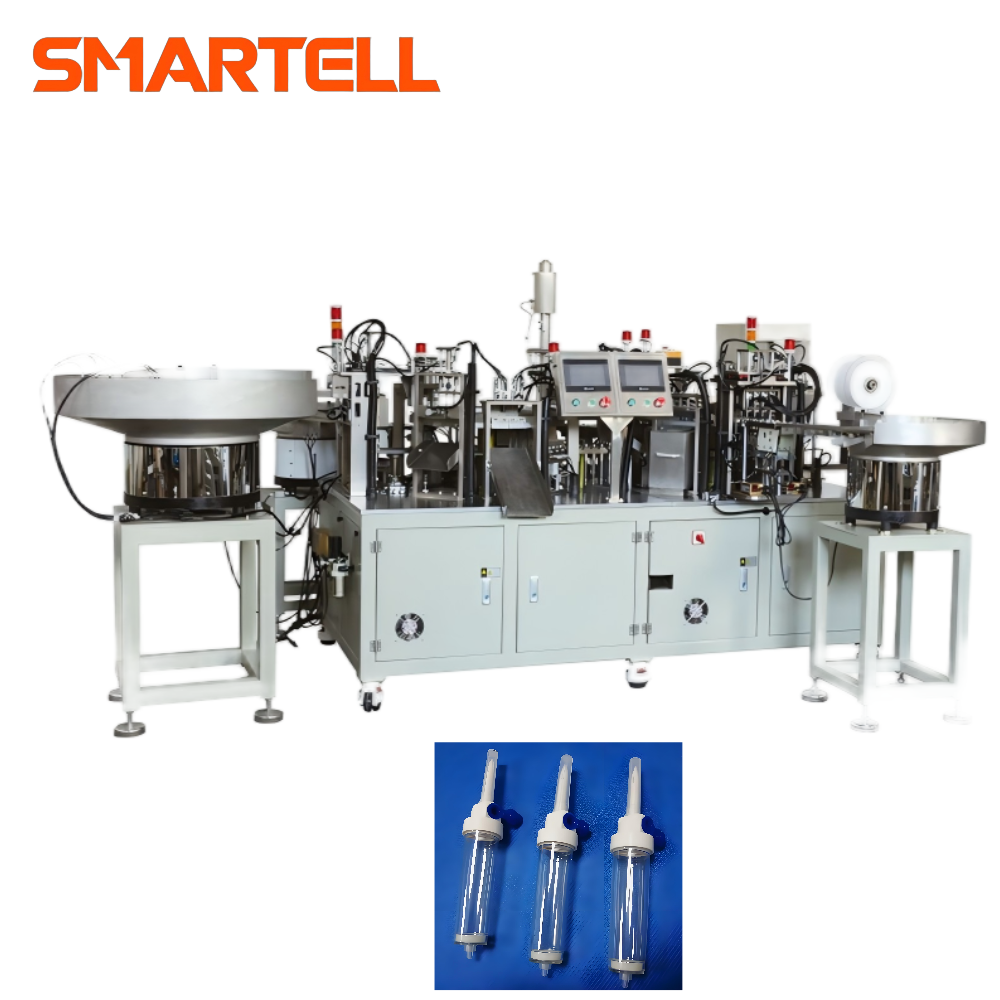

Six-part Drip Chamber Assembly Machine

The machine automatically feeds and assembles all six components, which typically include the drip chamber body, filter membrane, spike connector, air inlet or vent parts, inner tube, and connector. Components are oriented and supplied through vibratory or centrifugal feeders, ensuring correct positioning and smooth transfer during the assembly process. The filter membrane is precisely inserted, and the internal parts are assembled with controlled force to prevent deformation or contamination.

Advanced six-part drip chamber assembly machines are equipped with PLC control systems and touch-screen HMIs for easy operation and parameter setting. Online detection systems, such as sensors or vision inspection, check component presence, assembly completeness, and quality. Unqualified products are automatically rejected, ensuring a high pass rate and consistent output.

The machine is manufactured with stainless steel and aluminum alloy materials for all product-contact parts, meeting GMP and medical hygiene requirements. With features such as high production efficiency, stable performance, reduced labor cost, and reliable assembly quality, the six-part drip chamber assembly machine is an essential piece of equipment in modern infusion set production lines.
