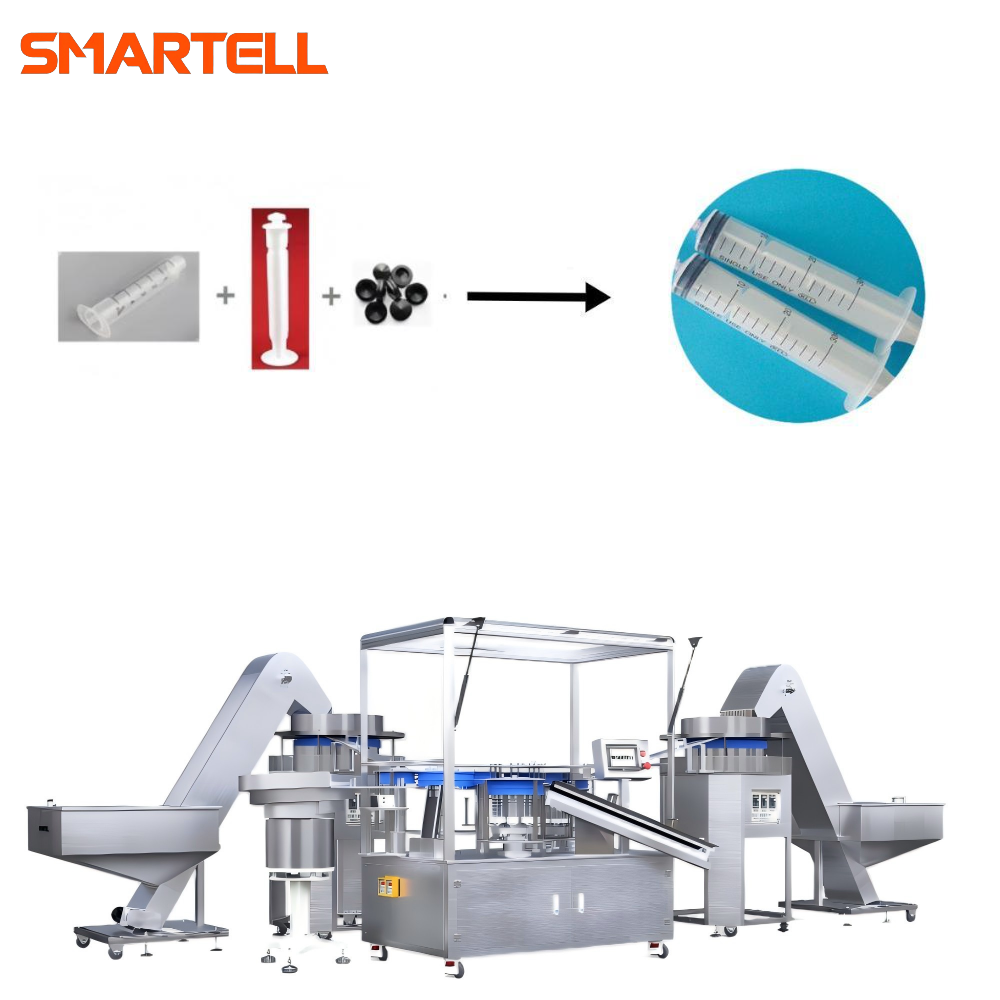

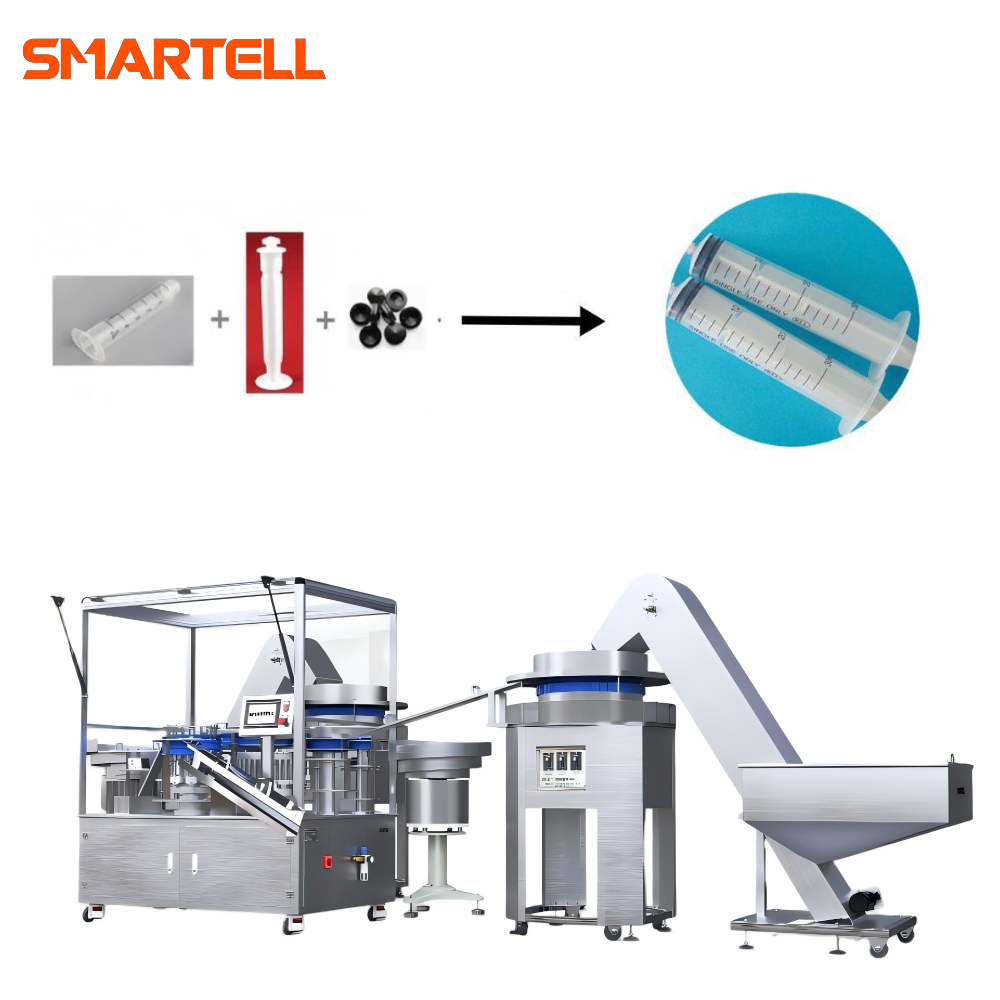

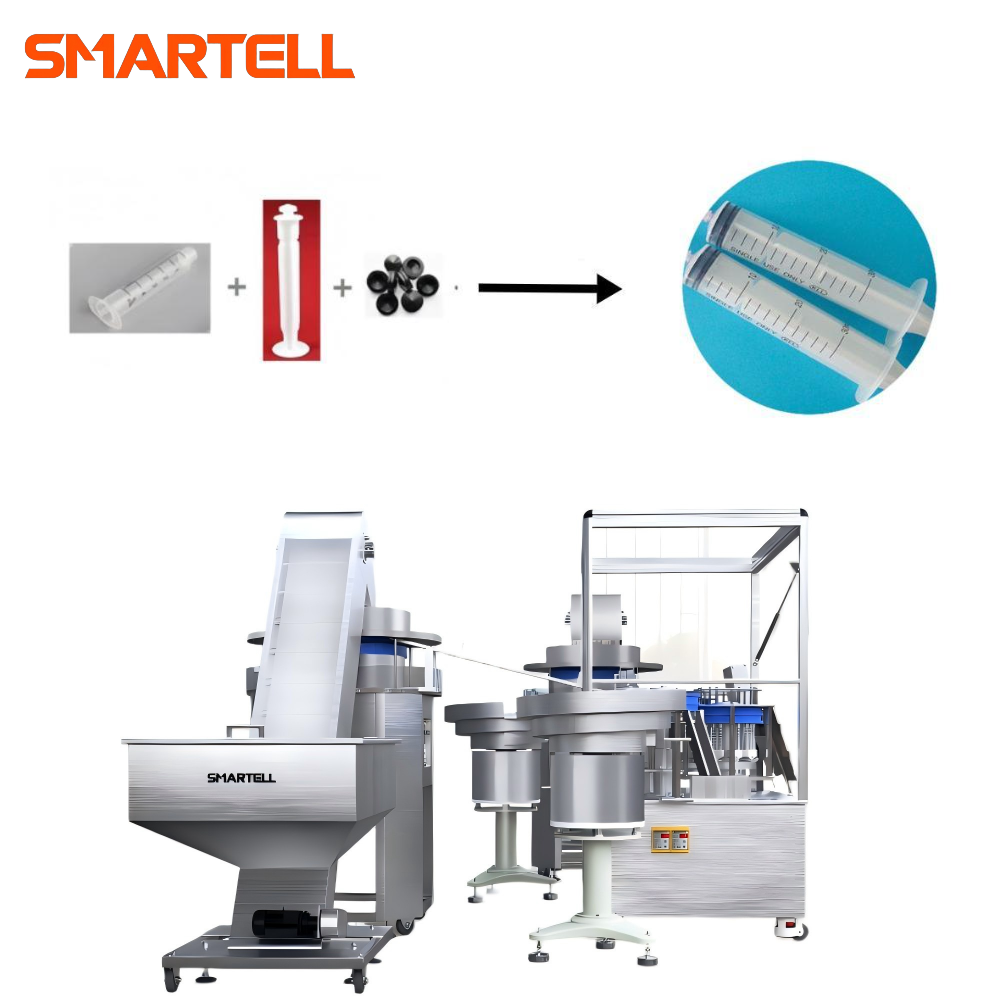

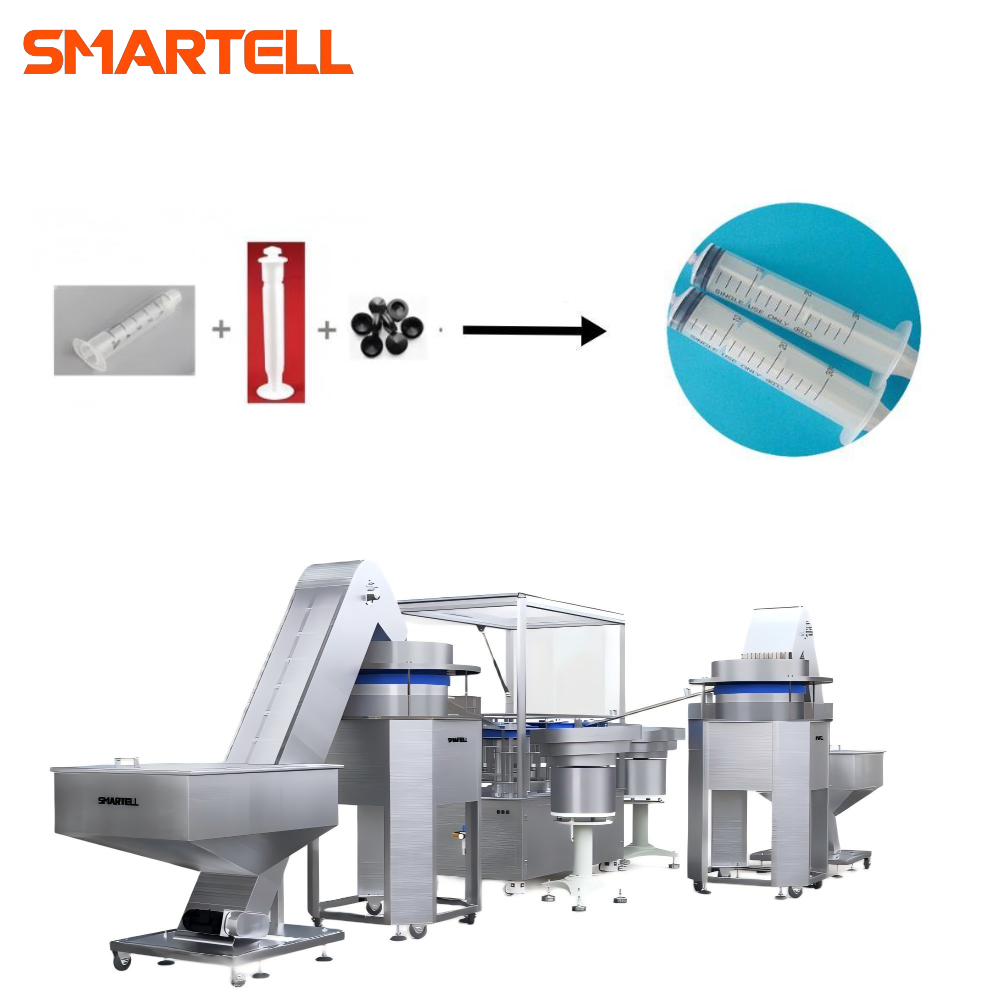

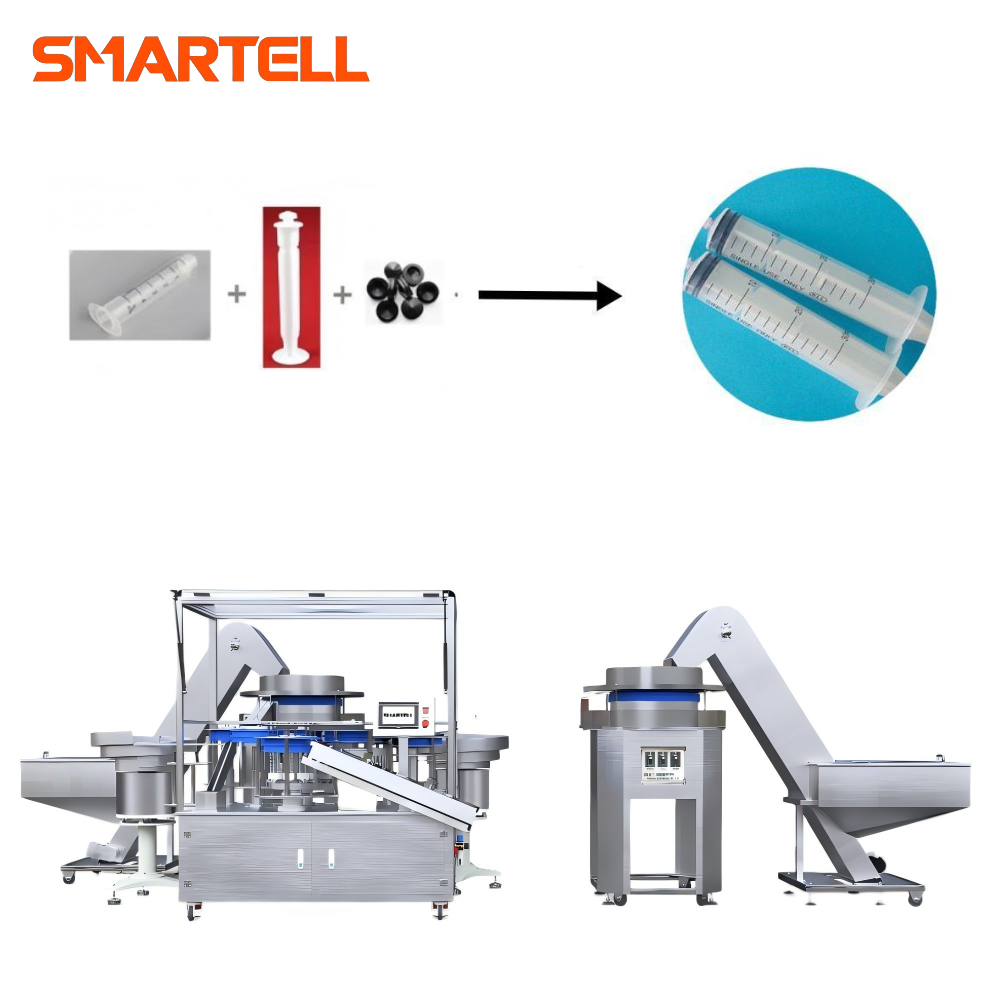

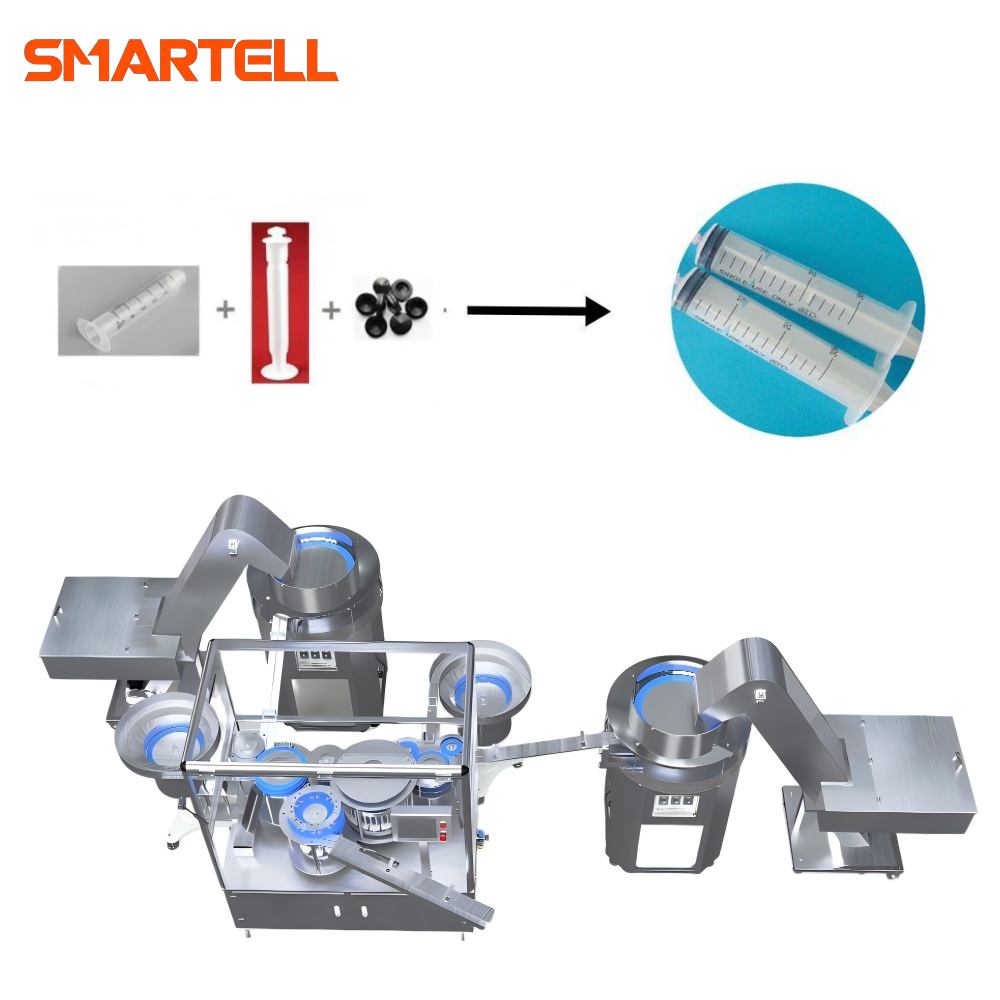

Syringe Assembly Machine

Main Assembly Functions

Depending on configuration, the Syringe Assembly Machine can complete the following operations:

✔ Barrel Feeding & Orientation

Automatically arranges and positions syringe barrels for assembly.

✔ Gasket Sorting & Insertion

Automatically identifies the gasket and assembles it into the plunger.

✔ Plunger Insertion

Automatically inserts the plunger into the barrel smoothly without scratching or deformation.

✔ Lubrication (Optional)

Uniform silicone oil coating inside the barrel to ensure smooth plunger movement.

✔ Needle Assembly (Optional)

For fixed-needle syringes: attaches and locks the needle onto the barrel.

✔ Automatic Detection

CCD camera system checks:

• Missing gasket

• Plunger direction

• Incorrect assembly

• Unqualified appearance

• Deviation of insertion depth

✔ Output and Counting

Automatically discharges finished syringes and counts them into groups.

Advantages

• High Production Efficiency — Capable of continuous operation with output up to 200-350pcs/min

• Precision Assembly — Accurate control ensures tight sealing and reliable needle connection.

• Reduced Labor Cost — Fully automated system requires minimal operator supervision.

• Clean and Safe — No human contact during assembly, reducing risk of contamination.

• Easy Maintenance — Modular design allows convenient cleaning and part replacement.

• Consistent Quality — Built-in inspection guarantees stable and reliable production results.
