Hypodermic Needle Sterilize Eo Gas Sterilizer 20 Box Ethylene Oxide Sterilization Machine

ETO sterilization machines come in a range of sterilizer cabinet sizes, typically varying from 1 cubic meter for smaller batches to 25 cubic meters for larger production volumes. The selection of sterilizer capacity depends on the manufacturer's specific requirements.
Availability:
Quantity:
  • SMT-5025

  • Smartell

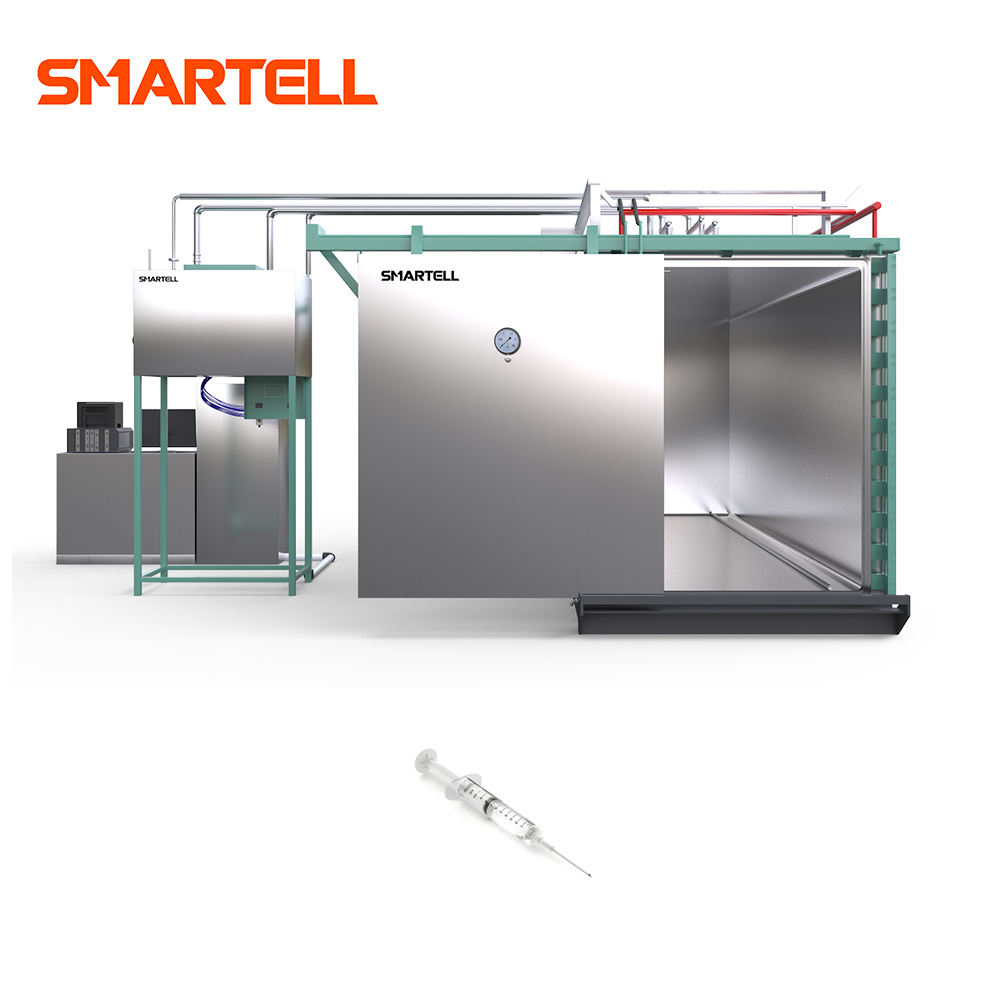

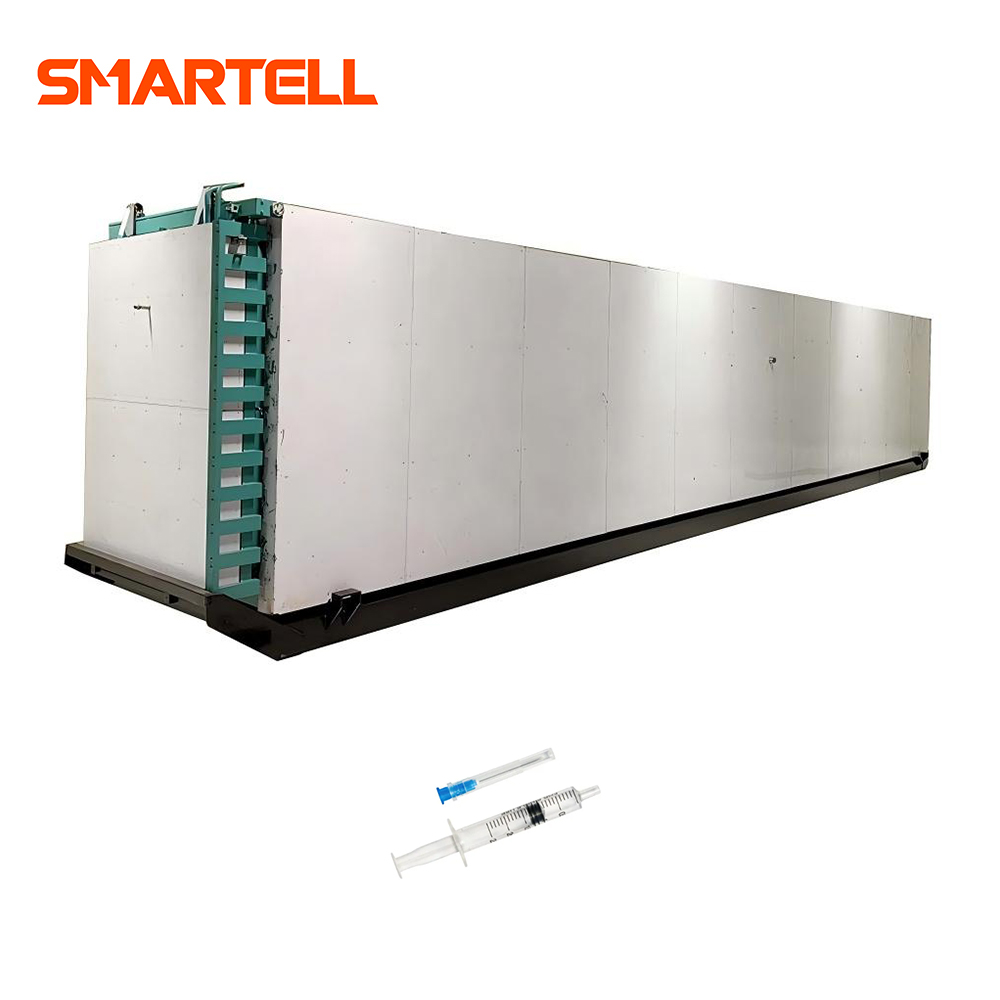

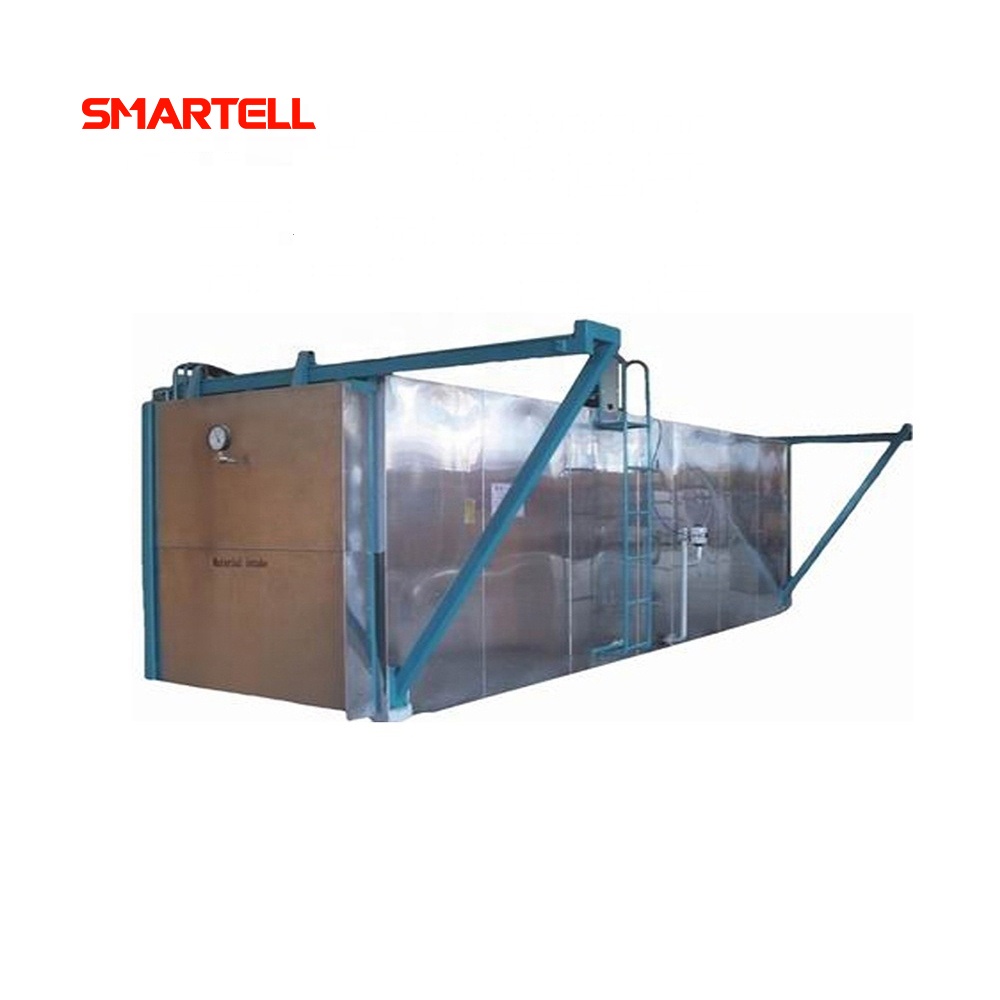

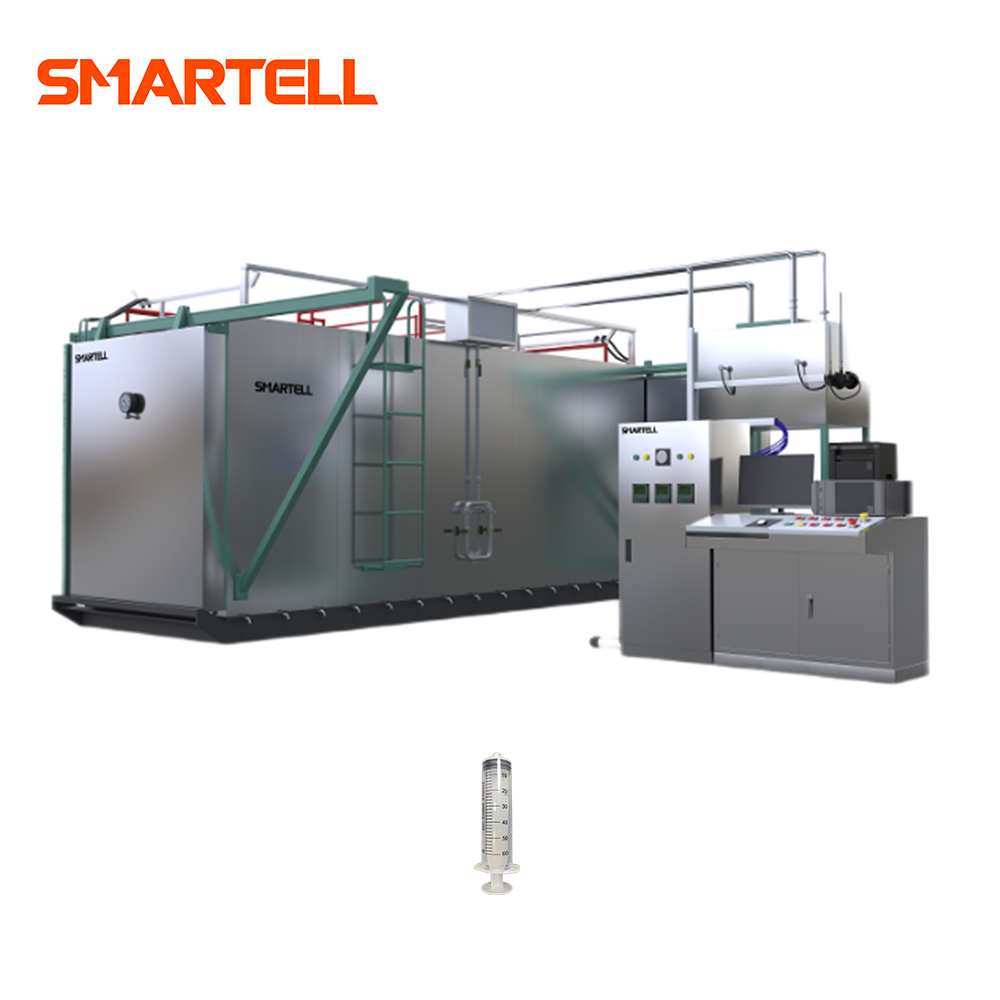

Ethylene Oxide Sterilization Machine

(Stainless steel coating sterilizer cabinet)


Specification

Structure combined Time control 1min~99h
Specification 1m3~35m3 Power Supply 380v/50HZ
Temperature control 0~100°C Power 3~5Kw
Maximum error of the temperature control <±3°C Electric Power 6~55Kw
Working pressure -0.09~0.08Mpa Working environment Temperature5~40°C
Humidity<80%RH
Working humidity 30%~60% RH


All parameters and dimensions are subject to change without prior notice.


43

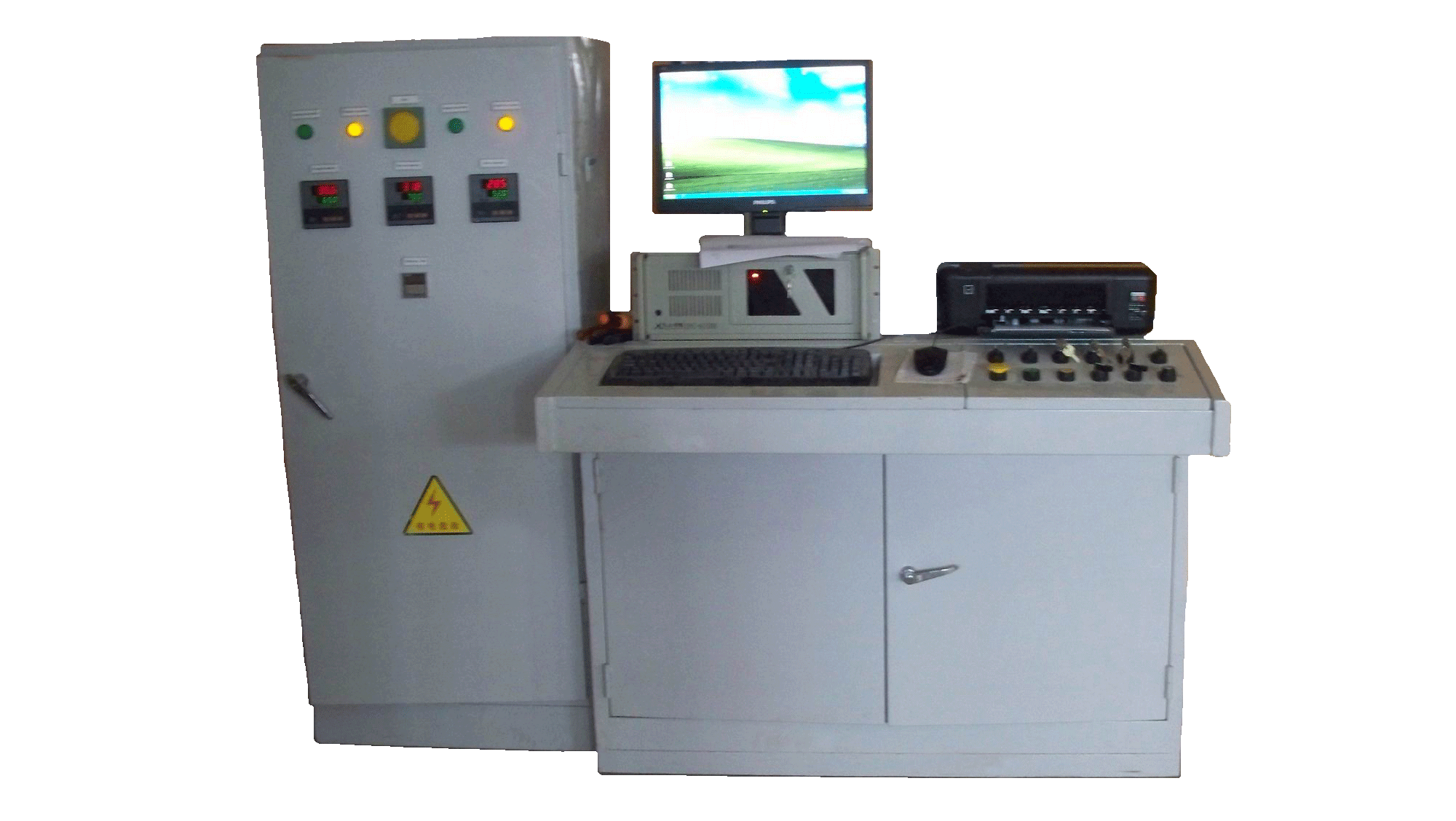

384photobank(2)微信图片_2025-10-24_153427_355








Ethylene Oxide Sterilization Machine


production description


Sterilization Capacity Options: 1 to 25 Cubic Meters

ETO sterilization machines come in a range of sterilizer cabinet sizes, typically varying from 1 cubic meter for smaller batches to 25 cubic meters for larger production volumes. The selection of sterilizer capacity depends on the manufacturer's specific requirements:


Small Sterilizers (1-5 cubic meters): These are suitable for small to medium-sized production facilities. They are ideal for sterilizing small batches of sensitive products such as syringes, needles, and catheters. These units are often used by manufacturers that need to sterilize specific product lines or limited quantities at a time.


Medium Sterilizers (5-15 cubic meters): These are designed for medium-scale manufacturers who require higher throughput for sterilizing a larger variety of medical products, including infusion sets, diagnostic devices, and wound care products. The increased capacity allows for faster sterilization cycles without compromising the quality of sterilization.


Large Sterilizers (15-25 cubic meters): These are high-capacity machines used in large-scale production environments where high-volume sterilization is required. They are suitable for industries that need to sterilize large quantities of medical devices at once, such as hospital supply chains or large medical device manufacturers. Larger sterilizers can handle more products per cycle, increasing production efficiency.



41



新美特-详情页_03

注射器产线流程图2025.3.10

新美特-详情页_06

新美特-详情页_07
