Medical-Grade Luer Lock Disposable Syringe Automatic Assembly Machine Production Line 1 Year Warranty

Syringe Assembly Machine

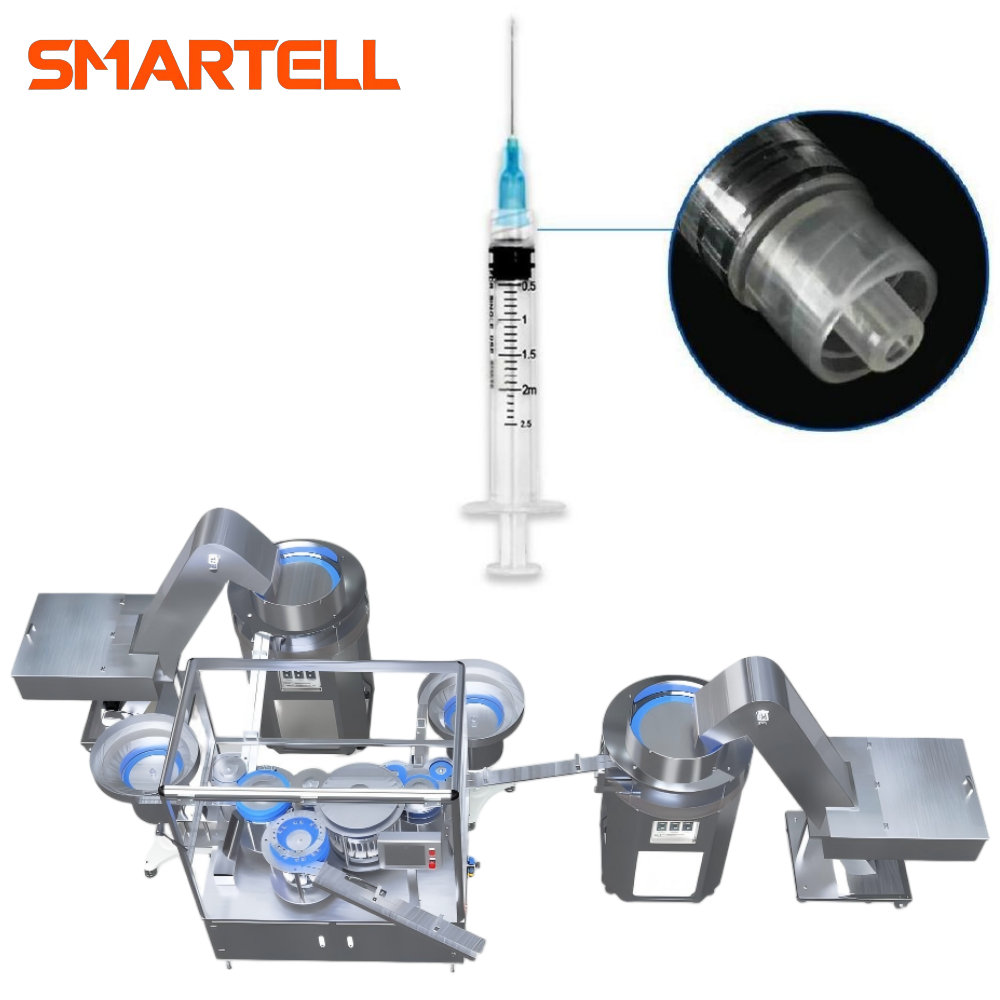

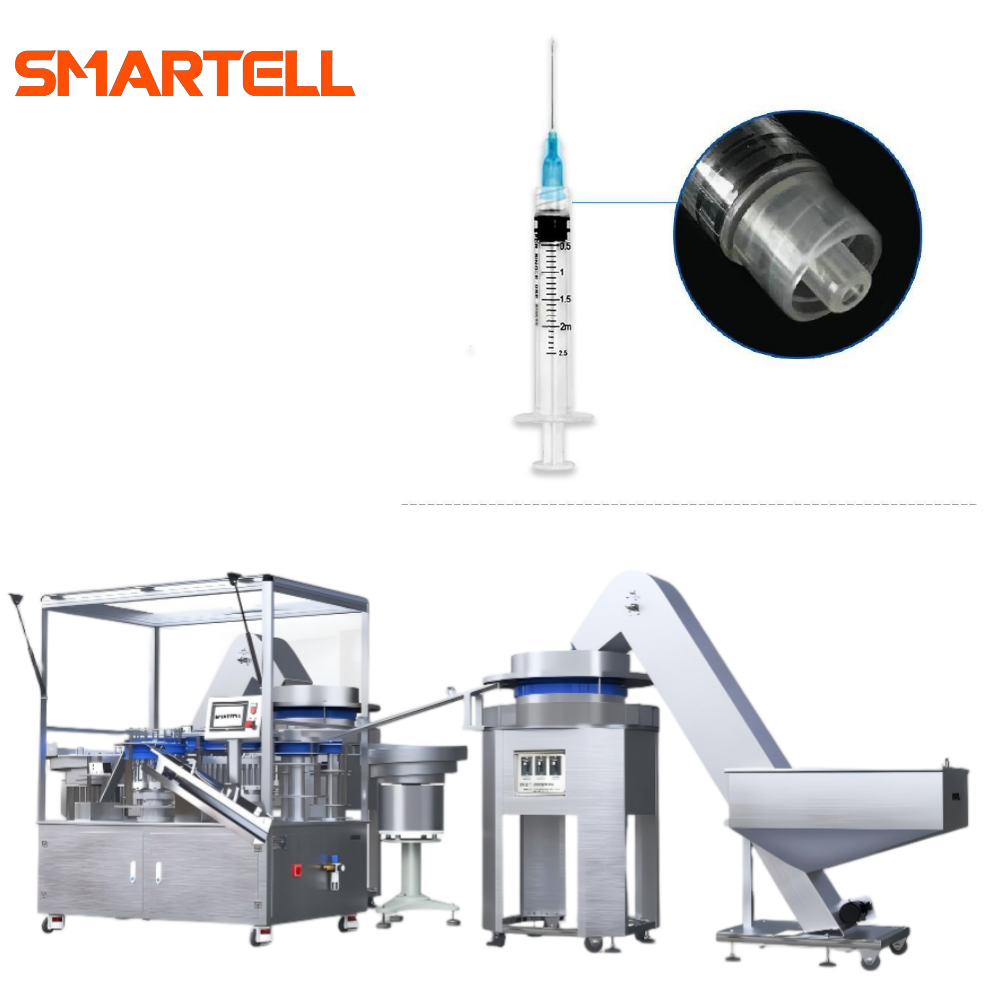

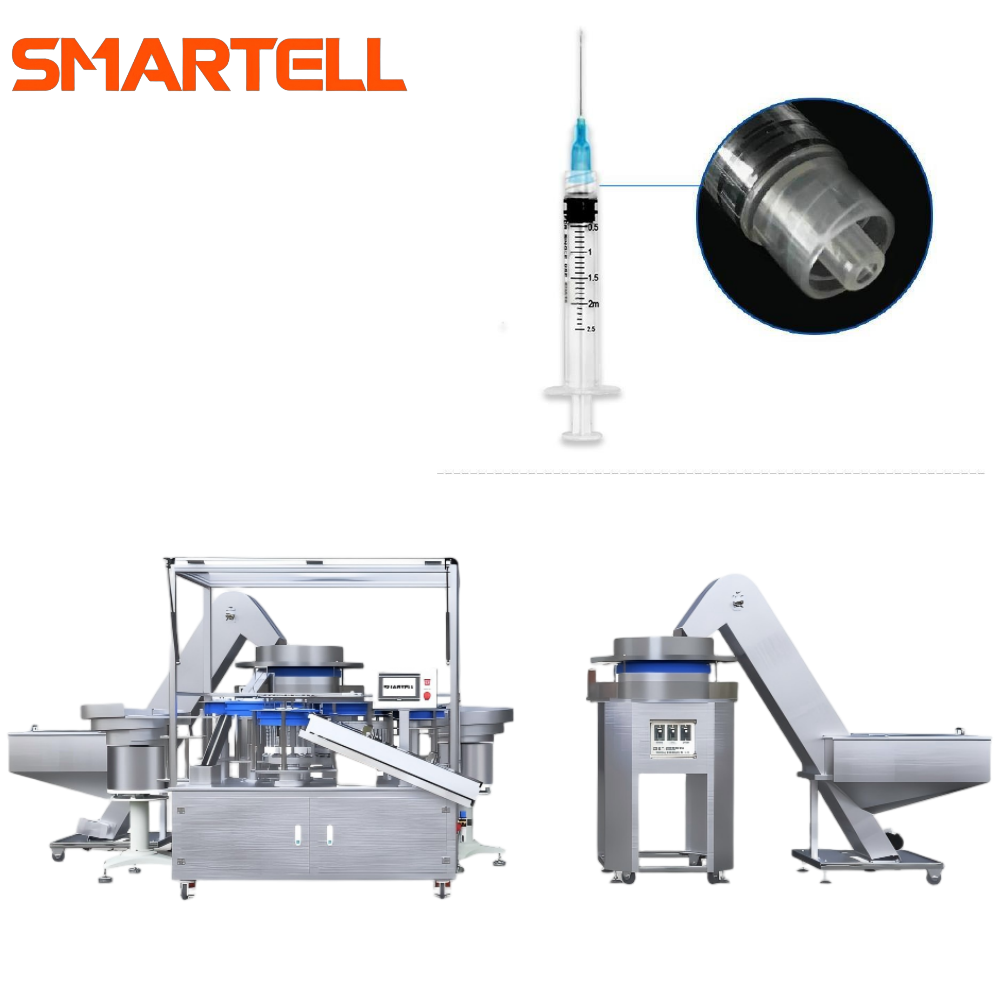

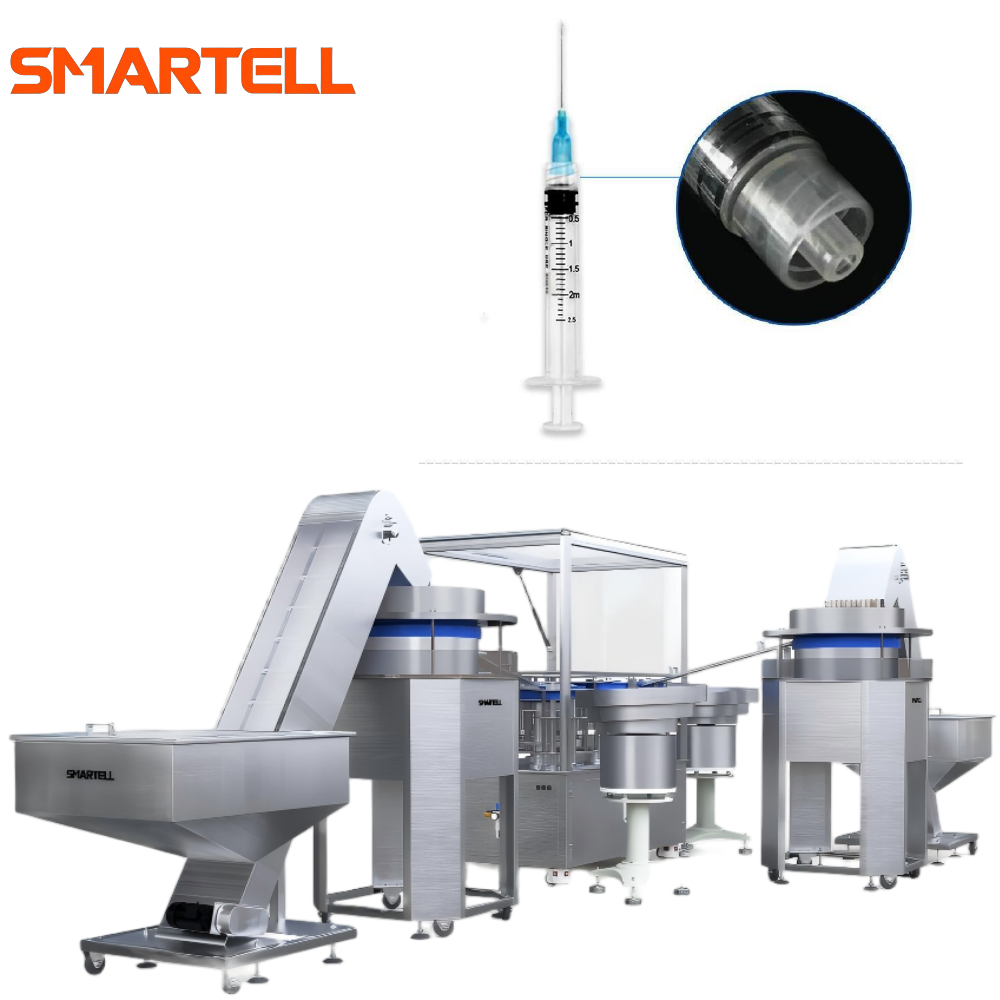

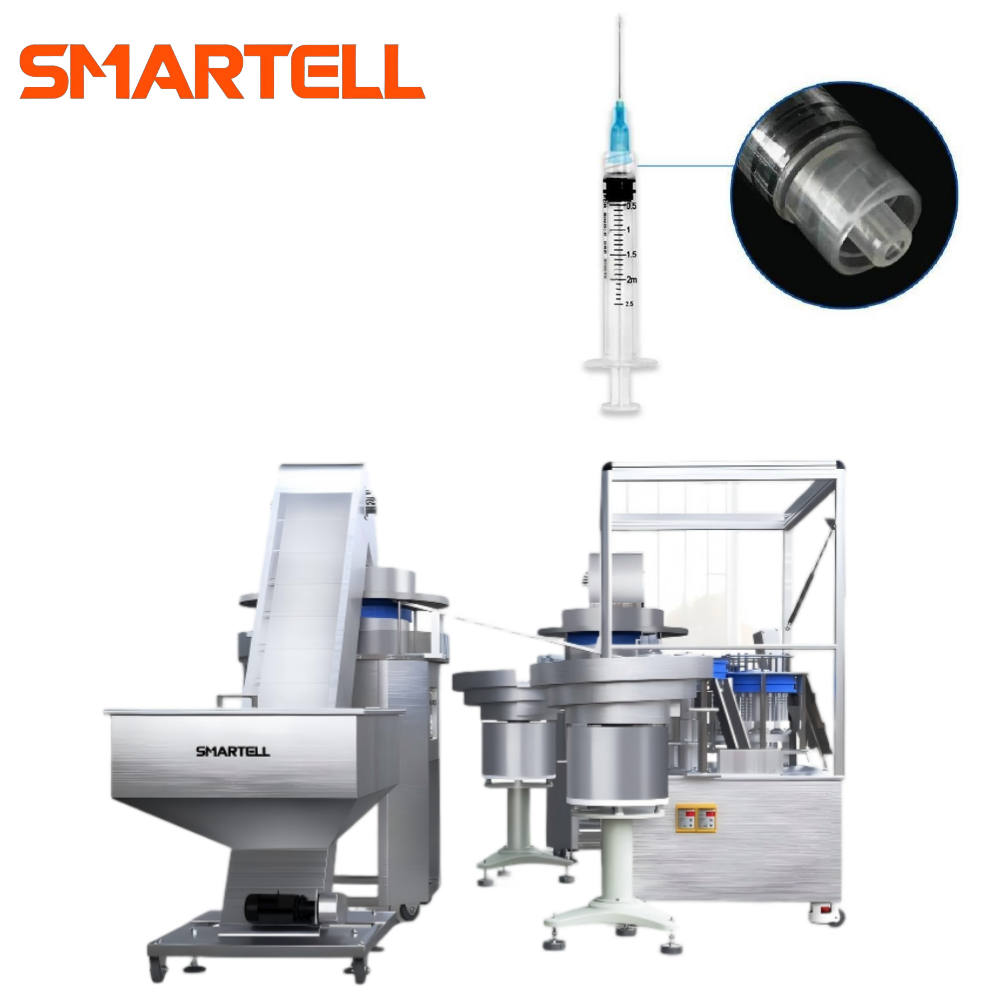

Syringe assembly machine is an automated production system used to assemble disposable medical syringes with high precision, speed, and consistency. It is widely used in medical device manufacturing plants to produce syringes that meet strict hygiene, safety, and regulatory standards.

Main Function

The machine automatically assembles individual syringe components into a finished or semi-finished syringe, typically including:

• Barrel

• Plunger

• Gasket)

• (Optional) needle hub or needle unit (for integrated systems)

Typical Assembly Process

1. Automatic feeding of barrels, plungers, and gaskets

2. Gaskets insertion into the plunger

3. Plunger insertion into the barrel

4. Positioning and alignment to ensure smooth movement

5. Inspection (presence, position, defects)

6. Finished product discharge to tray or conveyor

Some advanced lines also integrate silicon oil lubrication, printing, needle assembly, and packaging.

Applications

• Disposable medical syringes

• Insulin syringes

• Luer lock / Luer slip syringes

• Safety syringes (with additional modules)
